CHF01LSC5S1

Cheemi
Cheemi Technology Co., Ltd DATA SHEET Leakage Current Sensor P/N: CHF_LSC5S2 IPN=0.1~2A Feature ● The CHF_LSC5S2 series AC/DC leakage current sensor is a new type of open-loop flux gate current sensor developed using the principle of flux gate. ● It provides an economical and accurate solution for AC, DC, and pulse leakage current sensing. ● It has high current isolation between the primary...
развернуть ▼ свернуть ▲

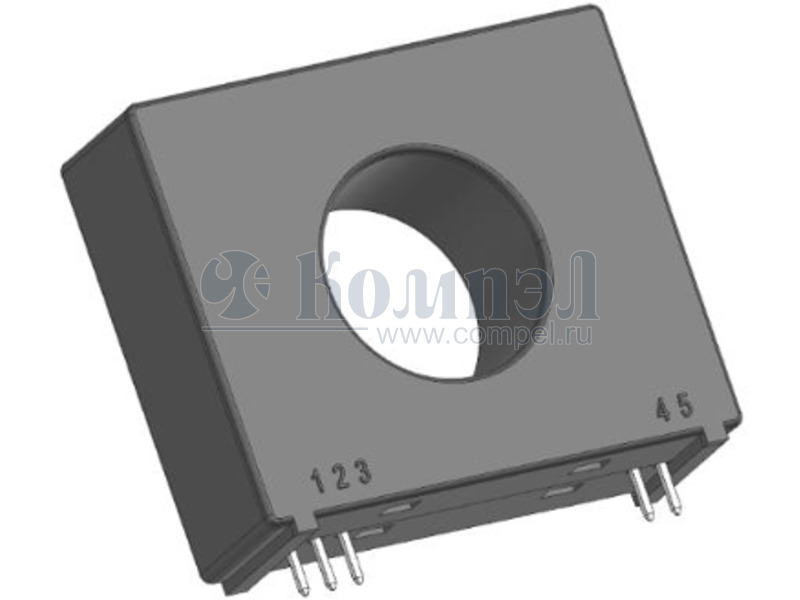

Внешний вид серии CHF_LSC5Sx

Технические характеристики

показать свернуть
Пиковый измеряемый ток
Тип выходного сигнала
Напряжение питания
Размер 45.5×38×15.5 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
Cheemi Technology Co., Ltd DATA SHEET Leakage Current Sensor P/N: CHF_LSC5S2 IPN=0.1~2A Feature ● The CHF_LSC5S2 series AC/DC leakage current sensor is a new type of open-loop flux gate current sensor developed using the principle of flux gate. ● It provides an economical and accurate solution for AC, DC, and pulse leakage current sensing. ● It has high current isolation between the primary and secondary circuits. ● It has good stability in measuring small currents. It can detect small AC and DC leakage currents<1mA. ● This product has undergone 168 hours of room temperature aging and 8 hours of high temperature aging treatment, maintaining excellent performance and stable operation under harsh working conditions. ● This product has undergone 168 hours of room temperature aging and 8 hours of high temperature aging treatment, maintaining excellent performance and stable operation under harsh working conditions. ● Supply voltage: DC +5.0V Advantages ● ● ● ● ● ● Small sizes, compact design Wide Frequency,current High immunity to external High overload capacity High insulation capacity No insertion losses overload capability interference Applications ● Retrograde leakage detection ● Leakge detetion of EV charging station ● PV inverter Cheemi Technology Co., Ltd Tel: 025-85996365 E-mail: info@cheemi-tech.com www. cheemi-tech.com Add:N22, Xianlongwan, Xianyin South Road, Qixia District, Nanjing - China. 1 PDF
Документация на серию CHF_LSC5Sx

Subject:

Дата модификации: 10.04.2026

Размер: 533 Кб

4 стр.

Cheemi Technology Co., Ltd 1/6 CHF_LSC5S1 For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit. Advantages - Small sizes, compact design - Wide Frequency,current overload capability - High immunity to external interference - High overload capacity - High insulation capacity - No insertion losses Feature The CHF_LSC5S1 series AC/DC leakage current sensor is a new type of open-loop flux gate current sensor developed using the principle of flux gate. ● It provides an economical and accurate solution for AC, DC, and pulse leakage current sensing. ● It has high current isolation between the primary and secondary circuits. ● It has good stability in measuring small currents. It can detect small AC and DC leakage currents<1mA. ● This product has undergone 168 hours of room temperature aging and 8 hours of high temperature aging treatment, maintaining excellent performance and stable operation under harsh working conditions. ● This product has undergone 168 hours of room temperature aging and 8 hours of high temperature aging treatment, maintaining excellent performance and stable operation under harsh working conditions Supply voltage: DC +5.0V Applications - Retrograde leakage detection - PV inverter - Leakge detetion of EV charging station - Railway (fixed installations and onboard). www.cheemi-tech.com Rev：v1.0 PDF
Документация на серию CHF_LSC5Sx

Дата модификации: 29.01.2026

Размер: 468.4 Кб

6 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
