CHFV2000DV15D50

Cheemi
Cheemi Technology Co., Ltd DATA SHEET Hall Effect Voltage Sensor P/N: CHFV2000DV15D50 VPN=2000V Feature ● ● ● ● It is a current mode voltage sensor, based on the principle of the based on fluxgate principle. Electrostatic shield between primary and secondary circuit It provides accurate electronic measurement of DC, AC or pulsed voltage. Supply voltage: ±15~±24 V ● ● ● ● High accuracy Wi...
развернуть ▼ свернуть ▲

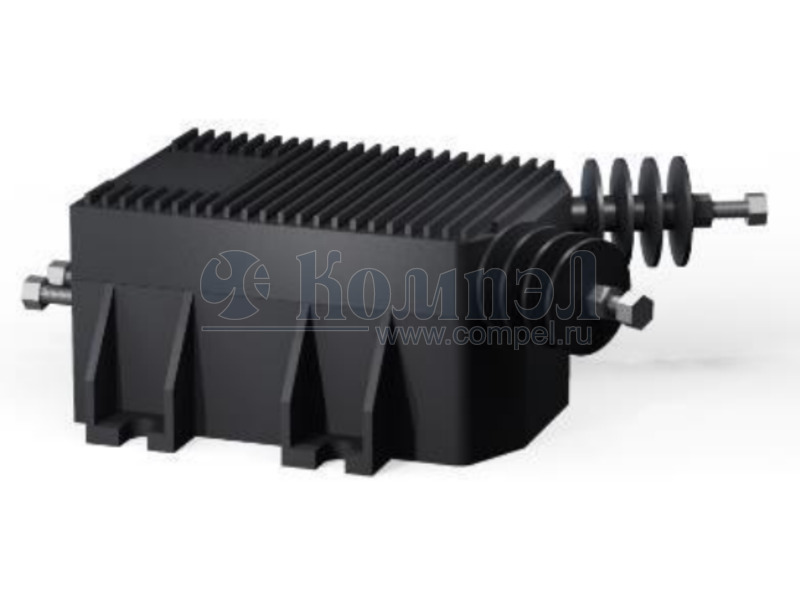

Внешний вид CHFV2000DV15D50

Технические характеристики

показать свернуть
  Примечание: Датчик напряжения в режиме тока, основанный на принципе магнитоэлектрического преобразователя (fluxgate).
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Cheemi Technology Co., Ltd DATA SHEET Hall Effect Voltage Sensor P/N: CHFV2000DV15D50 VPN=2000V Feature ● ● ● ● It is a current mode voltage sensor, based on the principle of the based on fluxgate principle. Electrostatic shield between primary and secondary circuit It provides accurate electronic measurement of DC, AC or pulsed voltage. Supply voltage: ±15~±24 V ● ● ● ● High accuracy Wide frequency bandwidth Low temperature drift High immunity to external interference ● ● ● ● ● ● Metrological verification and calibration Laboratory current measurement Instrumentation (e.g. power analyzer) Medical equipment (e.g. MRI) Battery pack detection Power control Advantages ● Very good linearity ● Optimized response time Applications Electrical data：（TA=25℃±5℃） Parameters Type CHFV2000DV15D50 Rated Input VPN(V) 2000 Measuring Range VPM(V) 1Min/Hour 3500 Current consumption IC (mA) IPM Range Power Supply VC Minimum Standard Maximum ±40 ±90 ±130 ±14.5 ±15 ±26.4 Current change Input:Output KN Measuring Resistance(Ω） RM 2000V/50mA 0 60 100 Cheemi Technology Co., Ltd Tel: 025-85560520 E-mail: info@cheemi-tech.com www. cheemi-tech.com Add:3/F, Building 6, Jingang Science and Technology Innovation Park, No.1 Kechuang Road, Qixia District, Nanjing City, Jiangsu Province, China. Rev3 1 PDF
Документация на CHFV2000DV15D50

Дата модификации: 23.01.2026

Размер: 618.5 Кб

5 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
