CJUA8-18M-ADA

Cheemi
Inductive Proximity Sensor CJUA8-18M Series Overall dimension 58 47.5 24 10.5 CQC ISO9001 Ø16.5 Order No.: M18*1 4 CJUA8-18M-NA CJUA8-18M-NB CJUA8-18M-PA CJUA8-18M-PB CJUA8-18M-DA CJUA8-18M-DB Features ■ Special optical design on the back cover of the product, 360° around the visible indicator light. ■ Dedicated IC, stable detection distance, rich product specifications Technical Para...
развернуть ▼ свернуть ▲

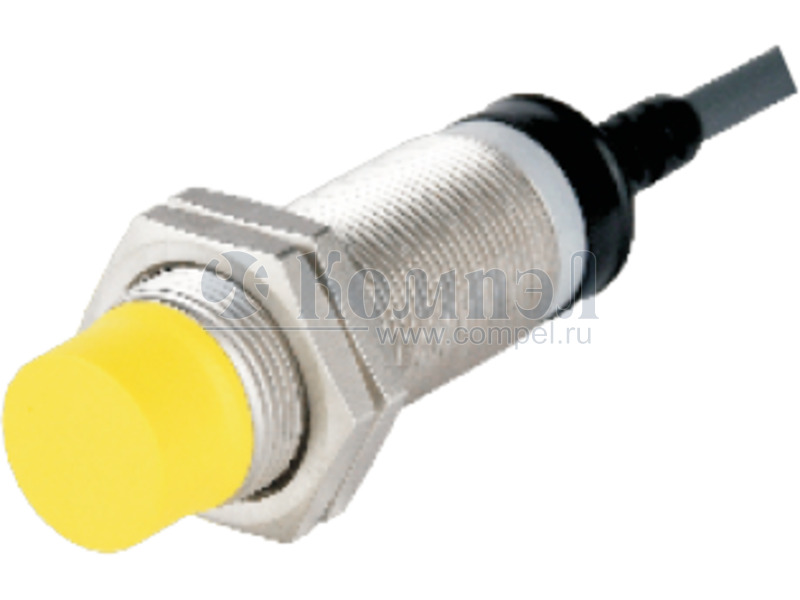

Внешний вид CJUA8-18M-DA

Файлы 1

показать свернуть
Inductive Proximity Sensor CJUA8-18M Series Overall dimension 58 47.5 24 10.5 CQC ISO9001 Ø16.5 Order No.: M18*1 4 CJUA8-18M-NA CJUA8-18M-NB CJUA8-18M-PA CJUA8-18M-PB CJUA8-18M-DA CJUA8-18M-DB Features ■ Special optical design on the back cover of the product, 360° around the visible indicator light. ■ Dedicated IC, stable detection distance, rich product specifications Technical Parameters General description Switch point function NPN NO、NPN NC、PNP NO、PNP NC、DC NO、DC NC Rated operating distance Sn 8mm ■ Use fold-resistant, oil-resistant wire. Installation Non-flush mounting ■ The detection surface is made of oil-resistant Output polarity DC Reliable measurement distance Sa 0...6.4mm Attenuation coefficient rAl 0.33 and corrosion-resistant materials, with superior environmental resistance. Wiring NPN NO (NA) 棕BN 黑BK LED Attenuation coefficient rCU 0.31 Attenuation coefficient rV2A 0.74 Attenuation coefficient rMS 0.41 Rated grade 兰BU Rated voltage UB 10...30VDC Switching frequency f 0.4K Hz 棕BN Hysteresis H Typical value 5% 黑BK Reverse polarity protection Yes Short circuit protection Pulse NPN NC (NB) 兰BU PNP NO (PA) 棕BN Voltage drop Ud DC three-wire ≤2V, DC two-wire ≤3V Working current IL 0 ... 200 mA Leakage current Ir 0 ... 100 u A 黑BK No-load current Io ≤1 0mA 兰BU Switch status indication Red LED indicator Surrounding environment PNP NC (PB) 棕BN Ambient temperature -25℃...70℃（248...358K） 黑BK Environment humidity 35...95%RH Mechanical properties 兰BU DC NO (DA) 棕BN 兰BU DC NC (DB) 棕BN Wiring Standard wire 2m Shell material Nickel plated brass Sensing surface PBT Protection level IP66 High pressure resistance 1000V AC, 50/60Hz 1 minute between the whole charging part and the shell Insulation resistance Above 50MΩ (DC500V megger) between the whole charging part and the shell Vibration resistance 10～55 Hz, complex amplitude 1.5mm, 2H in X, Y and Z directions Certification and standards 兰BU Certificates CE CCC CQC ISO9001 Standards I EC/EN 60947-5-2:2004 Accessory Copyright Cheemi Tech The datasheet is subject to change without notice. Cheemi Technology Co., Ltd China:0086(0)25-8599 6365 www.cheemi-tech.com E-mail:info@cheemi-tech.com 14 PDF
Документация на CJUA8-18M-ADB

2021科纳样本－接近开关

Дата модификации: 08.08.2022

Размер: 1.52 Мб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
