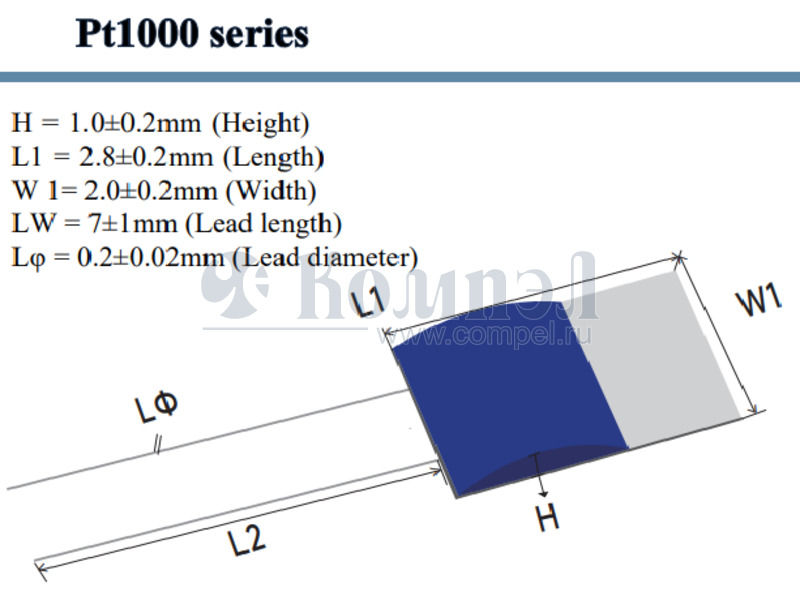

Pt1000 series Thin Film Platinum RTDs MAIN FEATURES H = 1.0±0.2mm (Height) L1 = 2.8±0.2mm (Length) W 1= 2.0±0.2mm (Width) LW = 7±1mm (Lead length) Lφ = 0.2±0.02mm (Lead diameter) • PT1000 series thin film platinum resistors have the advantages of small size, high precision and good long-term stability. < < W1 L1 < • It has the characteristics of anti-vibration and anti-shock. ...
