TMCTXF1C476MTRF

AIC Tech Inc. (AIC, Hitachi AIC)
Конденсатор танталовый 16 В, 47 мкФ ±20%, корпус F, SMD_7358
развернуть ▼ свернуть ▲

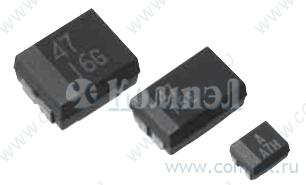

Фотография серии TMCTX

Технические характеристики

показать свернуть
Ёмкость номинальная
Допуск по ёмкости
Напряжение номинальное
Код корпуса производителя
Способ монтажа
Ток утечки
Применение
Примечание Tantalum Chip Capacitors with Internal Fuse
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
TANTALUM ELECTROLYTIC CAPACITORS TMCTX Series (Tantalum Chip Capacitors with Internal Fuse) Features • Protective-device-incorporated chip tantalum capacitor which is obtained by adding a thermal fuse to the TMC type. • High heat resistance: Withstands infra-red-reflow and solder dip and high reliability. • Prevention of fire or smoke with the work of internal fuse. Fusing characteristics: B, C cases: Open in less than 100 sec at 1.5 A or in less than 5 sec at 5 A. E, F cases: Open in less than 5 sec at 5 A. Product specifications TMCTX Test conditions JIS C5101-3-1998 Operating temperature range –55°C ~ +125°C Rated voltage DC10 ~ 35V 85°C Surge voltage DC13 ~ 45V 85°C Derated voltage DC6.3 ~ 22V 125°C Capacitance 1 ~ 68µF Capacitance tolerance ±10% or 20% Paragraph 7.8, 120 Hz 0.01CV or 0.5µA, Leakage current Paragraph 7.7, in 5 minutes after the rated voltage is applied. whichever is larger or less Product symbol : (Example) TMCTX Series C case 16V 10µF ±20% TMCTX C 1C 106 M T R F tanδ Terminal code Packing polarity code Packing method code (T:carrier tape) Capacitance tolerance code Capacitance code Rated voltage code Case size code Type of series Outline of drawings and dimensions 1.0 or less 0.04 or less 1.5 ~ 22 0.05 or less C/C Surge withstanding tanδ voltage LC Anode indication belf mark L W H B, C, F case –55 Case code B C E F L±0.2 3.5 5.8 7.3 7.3 125 0.04 0.09 0.07 0.09 0.10 0.08 0.10 or less 0.06 0.12 0.10 0.12 0.01CV or 0.5µA or less — a a W a Dimensions 85 0 ~ +10% 0 ~ +12% Value shown table 0.05 C/C 0.1CV 0.125CV or or 5µA or less 6.25µA or less ±5% or less tanδ Specified initial value or less LC Specified initial value or less W±0.2 2.8 3.2 4.3±0.3 5.8±0.3 Case size H±0.2 1.9 2.5 2.8 3.5 R±0.3 0.8 1.3 1.3 1.3 C/C a±0.2 2.0 2.4 2.4 3.5 Moisture resistance no load ±10% or less tanδ Specified initial value or less LC Specified initial value or less Code 105 155 225 335 475 685 106 156 226 336 476 686 Solder Dip B case 10±1 sec. Reflow–260°C 260±5°C C,E,F case 5±0.5 sec. 10±1 sec. 10 1A Paragraph 9.10, 85°C Specified initial value or less The rated voltage is applied LC 125% Specified initial value or less for 2000 hours. B B B C C E E,F E,F Hitachi AIC Inc. B B B C C E E,F E,F B B B C C E E,F E,F B B B C C E F C/C 35 1V B C C C Thermal shock Failure rate 30 ±10% or less tanδ Specified initial value or less LC Specified initial value or less C/C Moisture resistance tanδ load LC E F 90 ~ 95%RH,500hrs ±10% or less C/C Rated voltage (V.DC) 16 20 25 1C 1D 1E Paragraph 9.5, 40°C tanδ Standard value and case size µF 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 Paragraph 7.12 (Unit : mm) High-temperature load Capacitance Paragraph 7.14 Specified initial value or less -12 ~ 0% LC Solder heat resistance Specified initial value or less – tanδ Temperature characteristics ±5% or less Specified initial value C/C E acse Paragraph 7.9, 120Hz 33 or more 0.06 or less Leave at -55°C, normal temperature, 125°C, and normal temperature for 30 min., 3 min., 30 min., and 3 min. Repeat this operation 20 times running. ±10% or less 40°C, humidity 90 to 95%RH 150% Specified initial value or less The rated voltage is applied 200% Specified initial value or less for 500 hours. 1% / 1000hrs 85°C. The rated voltage is applied (through a protective resistor of 1 Ω/V). PDF
Документация на серию TMCTX

Дата модификации: 24.05.2006

Размер: 85.8 Кб

2 стр.
