SS14L

Hottech
SS12L-SS120L SCHOTTKY BARRIER DIODE FEATURES  Small Surface Mount device  Low power loss, high efficiency  High temperature soldering guaranteed:260°C/10 seconds at terminals  Guard ring for over voltage protection  For use in low voltage high frequency inverters, free wheeling, and polarity protection applications SOD-123FL MECHANICAL DATA     Case: SOD-123FL Case Material: Molded P...
развернуть ▼ свернуть ▲
Внешний вид E1J

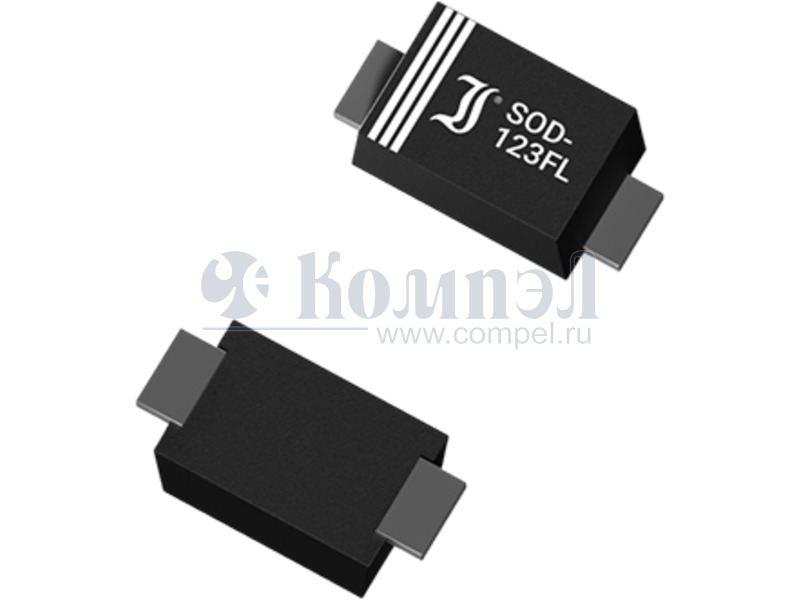

  • Корпус: SOD123FL
  • Норма упаковки: 3000  шт. (в ленте)

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Карточка
товара
F~ SS14LW RVG (TSC)

SOD123W 1 шт


Файлы 1

показать свернуть
SS12L-SS120L SCHOTTKY BARRIER DIODE FEATURES  Small Surface Mount device  Low power loss, high efficiency  High temperature soldering guaranteed:260°C/10 seconds at terminals  Guard ring for over voltage protection  For use in low voltage high frequency inverters, free wheeling, and polarity protection applications SOD-123FL MECHANICAL DATA     Case: SOD-123FL Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Weight: 0.0155 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol SS12L SS13L SS14L SS16L SS18L SS110L SS115L SS120L Unit Repetitive peak reverse voltage VRRM 20 30 40 60 80 100 150 200 V DC Reverse Voltage VR 20 30 40 60 80 100 150 200 V RMS Reverse Voltage Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms Mean rectifying current VRMS 14 21 28 42 56 70 105 140 V IFSM 30 A 1.0 A Thermal Resistance IF RθJA 110 °C/W Junction Temperature TJ 150 °C Storage Temperature TSTG -55 ~+175 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Forward voltage Reverse current T=25°C Reverse current T=125°C Junction capacitance Symbol SS12L SS13L SS14L SS16L SS18L SS110L SS115L SS120L VF IR IR CJ © SHENZHEN HOTTECH ELECTRONICS CO.,LTD 0.5 0.55 0.7 0.5 0.85 10 160 E-mail:hkt@heketai.com 0.9 Unit 0.92 V mA mA pF Conditions IF=1A V=VR V=4V,f=1MH Z 1/4 PDF
Документация на SS14L

Subject:

Дата модификации: 10.01.2019

Размер: 990.9 Кб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
