KPBL-3025SURKCGKC

Kingbright
KPBL-3025SURKCGKC 3.0 x 2.5 mm Surface Mount LED Lamp DESCRIPTIONS      PACKAGE DIMENSIONS The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti...
развернуть ▼ свернуть ▲

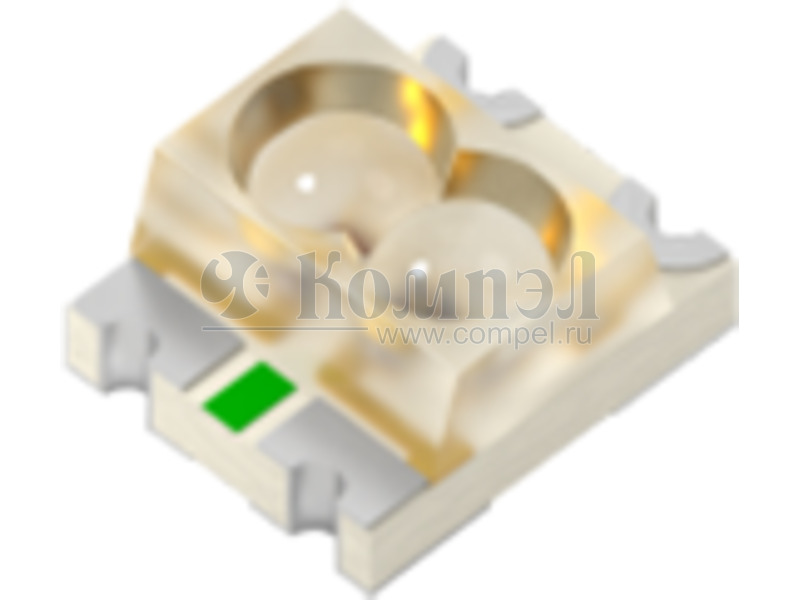

Внешний вид KPBL-3025SURKCGKC

Технические характеристики

показать свернуть
Цвета свечения
Количество цветов в корпусе
Длина волны 1 цвета 635
Длина волны 2 цвета 570
Сила света 1 кристалла
Сила света 2 кристалла
Угол по горизонтали
Тип линзы
Размер 2.5×1.4 мм
Рабочая температура
Примечания Dual Color LED, Hyper Red/green, Water Clear, 2.5mm
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i Цвет N λ1 Длина волны 2 λ3 Iv1 Iv2 Iv3 Tц Поток U Pик αX αY CIE x CIE y Корпус Линза Схема T раб Примечания Карточка
товара
P- FYLS-1210URUGC (FORYARD)

— в ленте 3000 шт

 632 572 — — — — — — — — — — — —
F~ KPBL-3025SURKZGC (KGB)

LED12103025METRIC в ленте 2000 шт

 — — — — — — — — — — — — — — —

Файлы 1

показать свернуть
KPBL-3025SURKCGKC 3.0 x 2.5 mm Surface Mount LED Lamp DESCRIPTIONS      PACKAGE DIMENSIONS The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically grounded t h FEATURES          3.0 mm x 2.5 mm SMD LED, 1.4 mm thickness Low power consumption Wide viewing angle Ideal for backlight and indicator Inner lens type Package: 2000 pcs / reel Moisture sensitivity level: 3 Halogen-free RoHS compliant APPLICATIONS      Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications g in g i r b K RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) ATTENTION Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.2(0.008") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. Observe precautions for handling electrostatic discharge sensitive devices SELECTION GUIDE Part Number Emitting Color (Material) Iv (mcd) @ 20mA [2] ■ Hyper Red (AlGaInP) KPBL-3025SURKCGKC Min. Typ. 500 1000 *120 *300 80 150 *80 *150 2θ1/2 50° Water Clear ■ Green (AlGaInP) Viewing Angle [1] Lens Type Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. © 2021 Kingbright. All Rights Reserved. Spec No: DSAB3888 / 1203000922 Rev No: V.24A Date: 10/14/2021 Page 1 / 4 PDF
Документация на KPBL-3025SURKCGKC

KPBL-3025SURKCGKC(Ver.24A)

Дата модификации: 15.10.2021

Размер: 936.3 Кб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
