KPHM-1608CGCK

Kingbright
KPHM-1608CGCK 1.6 x 0.8 mm SMD Chip LED Lamp DESCRIPTIONS     PACKAGE DIMENSIONS The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically gro...
развернуть ▼ свернуть ▲

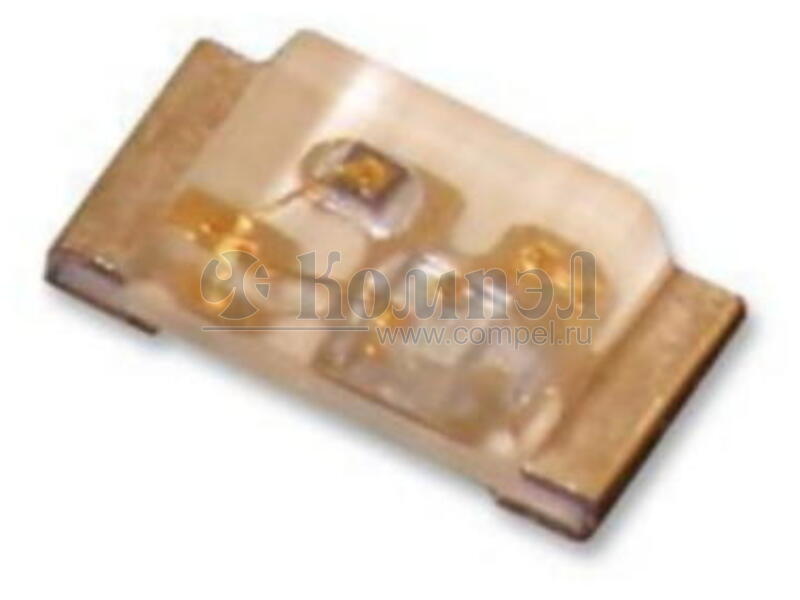

Внешний вид KPHM-1608QBC-D

Технические характеристики

показать свернуть
Цвета свечения
Количество цветов в корпусе
Длина волны 1 цвета 570
Сила света 1 кристалла
Сила света 3 кристалла
Угол по горизонтали
Тип линзы
Размер 1.6×0.8×0.45 мм
Рабочая температура
Примечания Single Color LED, Green, Water Clear, 1.2mm
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Цвет N λ1 Длина волны 2 λ3 Iv1 Iv2 Iv3 Tц Поток U Pик αX αY CIE x CIE y Корпус Линза Схема T раб Примечания Карточка
товара
P- FYLS-0603CUGC (FORYARD)

— в ленте 4000 шт

 570 — — — — — — — — — — — — —

Файлы 1

показать свернуть
KPHM-1608CGCK 1.6 x 0.8 mm SMD Chip LED Lamp DESCRIPTIONS     PACKAGE DIMENSIONS The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically grounded FEATURES         1.6 mm x 0.8 mm SMD LED, 0.45 mm max. thickness Low power consumption Wide viewing angle Ideal for backlight and indicator Package: 2000 pcs / reel Moisture sensitivity level: 3 Halogen-free RoHS compliant      Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications ATTENTION g i r b g in APPLICATIONS K t h RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) Observe precautions for handling electrostatic discharge sensitive devices Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SELECTION GUIDE Part Number KPHM-1608CGCK Iv (mcd) @ 20mA [2] Emitting Color (Material) Lens Type ■ Green (AlGaInP) Water Clear Viewing Angle [1] Min. Typ. 2θ1/2 20 50 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. © 2020 Kingbright. All Rights Reserved. Spec No: DSAC3362 / 1203001436 Rev No: V.17B Date: 09/19/2020 Page 1 / 4 PDF
Документация на KPHM-1608CGCK

KPHM-1608CGCK(Ver.17B)

Дата модификации: 19.09.2020

Размер: 845 Кб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
