RTF-5010

Kingbright
LED HOLDER RTF-5010
развернуть ▼ свернуть ▲

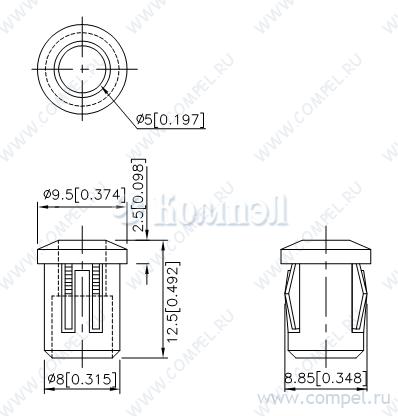

Чертеж RTF-5010

Технические характеристики

показать свернуть
Серии LED совместимые с держателями
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
RTF-5010 Housing for LED Lamp FEATURES z z z z z PACKAGE DIMENSIONS Suitable for back panel illumination, circuit board indicator, LED indicator Recommended hole diameter: Φ8.3 mm Housing UL rating: 94V-0 Housing material: Type 66 nylon RoHS compliant K PACKING & LABEL SPECIFICATIONS g in g i r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. PRECAUTIONARY NOTES 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at http://www.Kingbright.com/application_notes © 2018 Kingbright. All Rights Reserved. Spec No: DSAB0797 Rev No: V.13 Date: 04/18/2018 Page 1 / 1 PDF
Документация на RTF-5010

RTF-5010(Ver.13)

Дата модификации: 18.04.2018

Размер: 146 Кб

1 стр.

HOUSING FOR LED LAMP Part Number: RTF-5010 Features SUITABLE FOR BACK PANEL ILLUMINATION, CIRCUIT BOARD INDICATOR, LED INDICATOR. UL RATING : 94V-0. HOUSING MATERIAL: TYPE 66 NYLON. RECOMMENDED HOLE SIZE:Φ8.1MM. RoHS COMPLIANT. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. SPEC NO: DSAB0797 REV NO: V.8 DATE:JAN/02/2007 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: S.J.LIU PAGE: 1 OF 1 PDF
Документация RTF-5010

RTF-5010(Ver.8)

Дата модификации: 02.01.2007

Размер: 27.6 Кб

1 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
