MXR7305VF

MEMSIC
Improved Low Cost ±5 g Dual-Axis Accelerometer with Ratiometric Analog Outputs MXR7305VF FEATURES z z z z z z z z z z z z z z Dual axis accelerometer fabricated on a single CMOS IC Monolithic design with mixed mode signal processing RoHS compliant On-chip sensitivity compensation for temperature variations On Demand Self Test ± 5g dynamic range, 250mV/g sensitivity Independent axis programmab...
развернуть ▼ свернуть ▲

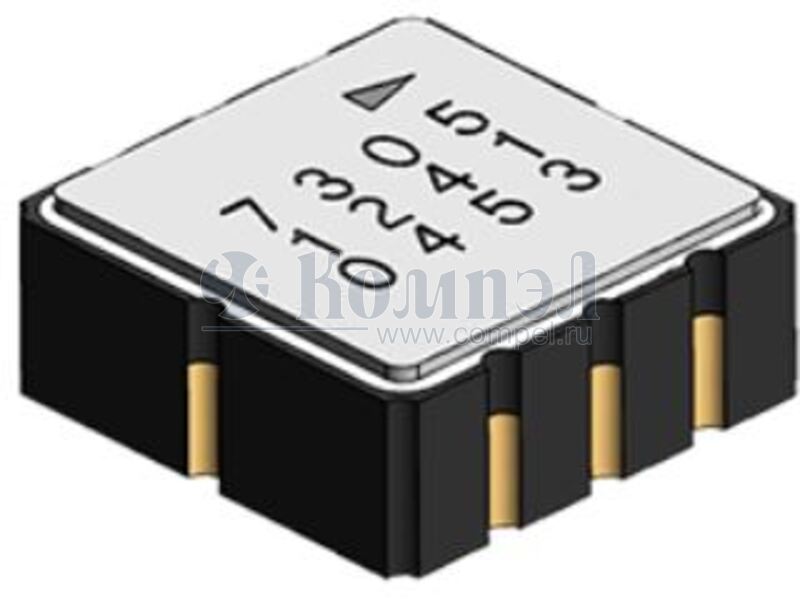

Внешний вид MXR7305VF

Технические характеристики

показать свернуть
Рабочие оси
Диапазон измерения
Выходной интерфейс
Напряжение питания
Ток потребления
Рабочая температура
Примечания Zero-g offset = 200 mg; 5x5x2 8pin LCC;
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
Improved Low Cost ±5 g Dual-Axis Accelerometer with Ratiometric Analog Outputs MXR7305VF FEATURES z z z z z z z z z z z z z z Dual axis accelerometer fabricated on a single CMOS IC Monolithic design with mixed mode signal processing RoHS compliant On-chip sensitivity compensation for temperature variations On Demand Self Test ± 5g dynamic range, 250mV/g sensitivity Independent axis programmability (special order) Resolution better than 1mg Zero-g Output Temperature drift, better than ±80mg over –40~95degC range 27Hz bandwidth >50,000 g shock survival rating 4.50V to 5.25V single supply operation Small surface mount package, 5mm x 5mm x 2mm Improved thermal gradient performance MXR7305V FUNCTIONAL BLOCK DIAGRAM APPLICATION Automotive – Roll over sensing, VSC/EPB application GENERAL DESCRIPTION The MXR7305VF is a low cost, dual axis accelerometer built on a standard, submicron CMOS process. It measures acceleration with a full-scale range of ±5g and a sensitivity of 250mV/g. The MXR7305VF provides a g-proportional ratiometric analog output above/below the zero-g point at 50% of the supply voltage. (Ref. other MEMSIC data sheets for absolute analog or digital outputs). The typical noise floor is 0.6mg / Hz , allowing signals below 1mg to be resolved at 1Hz bandwidth. The 3dB rolloff of the device occurs at 27Hz. The MXR7305V is available in a low profile LCC surface mount package (5mm x 5mm 2mm). It is hermetically sealed and operational over a -40°C to +95°C temperature range. Information furnished by MEMSIC is believed to be accurate and reliable. However, no responsibility is assumed by MEMSIC for its use, nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of MEMSIC. MEMSIC MXR7305V Rev.A Page 1 of 6 Memsic’s accelerometer technology allows for designs from ±1 g to ±70 g with custom versions available above ±70 g. It can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity). The design is based on heat convection and requires no solid proof mass. This eliminates stiction and particle problems associated with competitive devices and provide shock survival greater than 50,000 g, leading to significantly lower failure rates and lower loss due to handling during assembly and at customer field application. Due to the standard CMOS structure of the MXR7305V, additional circuitry can easily be incorporated into custom versions for high volume applications. Contact Memsic’s local office for more information. ©MEMSIC, Inc. One Technology Drive, Suite 325, Andover, MA01810, USA Tel: +1 978 738 0900 Fax: +1 978 738 0196 www.memsic.com 6/18/2009 PDF
