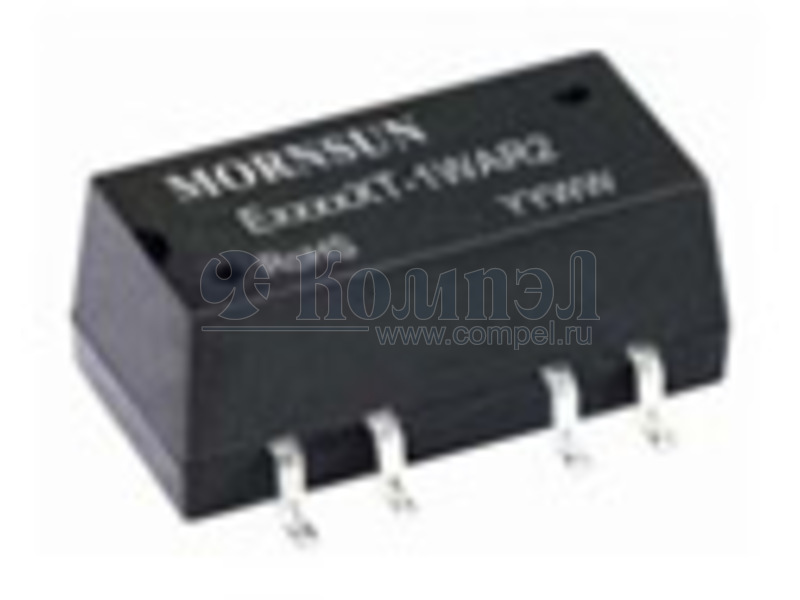

A2415S-1WR3

DC/DC Converter A_S-1WR3 & B_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, unregulated dual/single output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃  High efficiency up to 81%  I/O isolation test voltage: 1.5k VDC  Industry standard pin-out CB Report RoHS Patent Protection...
развернуть ▼ свернуть ▲


Технические характеристики

показать свернуть
Возможности DC-DC Unregulated Power Supply Module
Схема параллельного включения
Сертификаты медицинские
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
DC/DC Converter A_S-1WR3 & B_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, unregulated dual/single output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃  High efficiency up to 81%  I/O isolation test voltage: 1.5k VDC  Industry standard pin-out CB Report RoHS Patent Protection UL 62368-1 EN 62368-1 BS EN 62368-1 IEC 62368-1 A_S-1WR3 & B_LS-1WR3 series are specially designed for applications where an(two) isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage (VDC) Certification Part No. Output Full Load Nominal Voltage (Range) (VDC) Current (mA) Max./Min. Efficiency (%) Min./Typ. Capacitive Load(µF)* Max. UL/EN/BS EN/IEC A1203S-1WR3 ±3.3 ±152/±15 71/75 A1205S-1WR3 ±5 ±100/±10 76/80 -- A1209S-1WR3 ±9 ±56/±5 76/80 A1212S-1WR3 ±12 ±42/±5 77/81 A1215S-1WR3 ±15 ±34/±4 77/81 ±24 ±21/±3 76/80 3.3 303/30 71/75 B1205LS-1WR3 5 200/20 76/80 B1209LS-1WR3 9 111/12 76/80 B1212LS-1WR3 12 83/9 76/80 B1215LS-1WR3 15 67/7 77/81 B1224LS-1WR3 24 42/4 77/81 220 A1505S-1WR3 ±5 ±100/±10 76/80 1200 470 A1224S-1WR3 B1203LS-1WR3 UL/EN/BS EN/IEC 12 (10.8-13.2) 1200 470 220 100 2400 1000 560 -- A1509S-1WR3 ±9 ±56/±5 76/80 UL/EN/BS EN/IEC A1512S-1WR3 ±12 ±42/±5 76/80 A1515S-1WR3 ±15 ±34/±4 77/81 -- A1524S-1WR3 ±24 ±21/±2 77/81 100 B1505LS-1WR3 UL/EN/BS EN/IEC 15 (13.5-16.5) 220 5 200/20 76/80 2400 B1509LS-1WR3 9 111/12 76/80 1000 B1512LS-1WR3 12 83/9 76/80 B1515LS-1WR3 15 67/7 77/81 560 -- B1524LS-1WR3 24 42/5 77/81 220 UL/EN/BS EN/IEC A2405S-1WR3 ±5 ±100/±10 74/80 1200 -- A2409S-1WR3 ±9 ±56/±5 74/80 470 ±12 ±42/±5 75/81 ±15 ±34/±4 73/79 A2424S-1WR3 ±24 ±21/±3 74/80 B2403LS-1WR3 3.3 303/30 69/75 B2405LS-1WR3 5 200/20 73/79 A2412S-1WR3 UL/EN/BS EN/IEC A2415S-1WR3 24 (21.6-26.4) 2021.12.27-A/2 220 100 2400 Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на B2424LS-1WR3

A_S-1WR3 & B_LS-1WR3 Keywords:

Дата модификации: 27.12.2021

Размер: 1.66 Мб

5 стр.
