CTTF0505-1T

Mornsun
DC/DC Converter CTTF Series FEATURES CTTF0505-1T Transformer  Compact SMD package  I/O isolation test voltage 3k VDC  Operating ambient temperature range: -40℃ to +125℃  Meets EN62368 standards  Meets AEC-Q200 standards(testing) RoHS CTTF0505-1T Transformer is specially designed for applications where an isolated voltage is required in a distributed power supply system, operating temper...
развернуть ▼ свернуть ▲

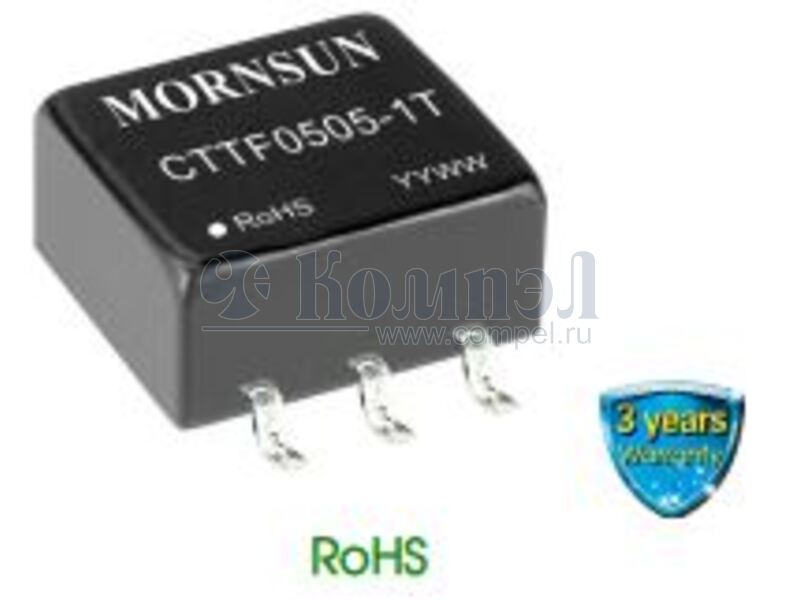

Внешний вид CTTF0505-1T

Технические характеристики

показать свернуть
Применение DC-DC transformer for SCM1201A
Габарит
Тип монтажа
Коэффициент трансформации
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
DC/DC Converter CTTF Series FEATURES CTTF0505-1T Transformer  Compact SMD package  I/O isolation test voltage 3k VDC  Operating ambient temperature range: -40℃ to +125℃  Meets EN62368 standards  Meets AEC-Q200 standards(testing) RoHS CTTF0505-1T Transformer is specially designed for applications where an isolated voltage is required in a distributed power supply system, operating temperature of -40℃ to +125℃, compatible with SCM1201ATA used as an 1W DC-DC converter with 5V input, 5V output. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input voltage(VDC) Part No. Nominal Input Current Output voltage (VDC) (Range) 5 (4.5-5.5) CTTF0505-1T Typ. Max. Power(W) mA( DC ) mA( AC ) mA( DC ) 200 177 250 5 1 Note: Pins and phase points of the transformers refer to Phase Diagram. General Specifications Item Operating Conditions Inductance ① DCR Min. Typ. Max. pin 1 to pin 3 -- 600 -- pin 6 to pin 4 -- 800 -- pin 1 to pin 3 -- 650 -- pin 6 to pin 4 -- 750 -- Unit μH mΩ Isolation Primary-secondry Electric Strength Test for 1 minute with a leakage current of 1mA max. 3000 -- -- VDC Insulation Resistance Primary-secondry resistance at 500VDC 1000 -- -- MΩ Isolation Capacitance Primary-secondry capacitance at 100kHz/0.1V -- 20 -- pF 11 -- -- Vus -- -- 95 %RH -40 -- +125 -55 -- +125 -- -- 260 Voltage-Time② Storage Humidity Non-condensing Operating Temperature ③ Including temperature rise Storage Temperature ④ Pin Soldering Resistance Temperature Peak temp.≤245℃, maximum duration time≤60s over 217℃. Reflow Soldering Temperature⑤ Moisture Sensitivity Level (MSL) ℃ IPC/JEDEC J-STD-020D.1 Level 1 Notes: ①Test conditions: 100kHz/0.1V; ②Product of input voltage and excitation time; ③The temperature of the transformer(ambient plus temperature rise) should be within the operating temperature range; ④The storage temperature of the transformer only; ⑤We suggest that times of reflow soldering should not exceed twice, for actual application, please refer to IPC/JEDEC J-STD-020D.1. 2019.010.15-A/1 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на CTTF0505-1T

CTTF Series_EN Keywords:

Дата модификации: 25.12.2019

Размер: 592.2 Кб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
