CTTFB0505-1T

Mornsun
DC/DC Converter CTTFB0505-1T FEATURES CTTFB0505-1T Transformer  Compact SMD package  I/O isolation test voltage 3000VAC/4250VDC  Operating ambient temperature range: -40℃ to +125℃  Meets EN62368 standards RoHS  Meet AEC-Q200 standards(testing) CTTFB0505-1T transformers feature 3000VAC/4250VDC primary side to secondary side and operating temperature of -40℃ to +125℃. Compatible with S...
развернуть ▼ свернуть ▲

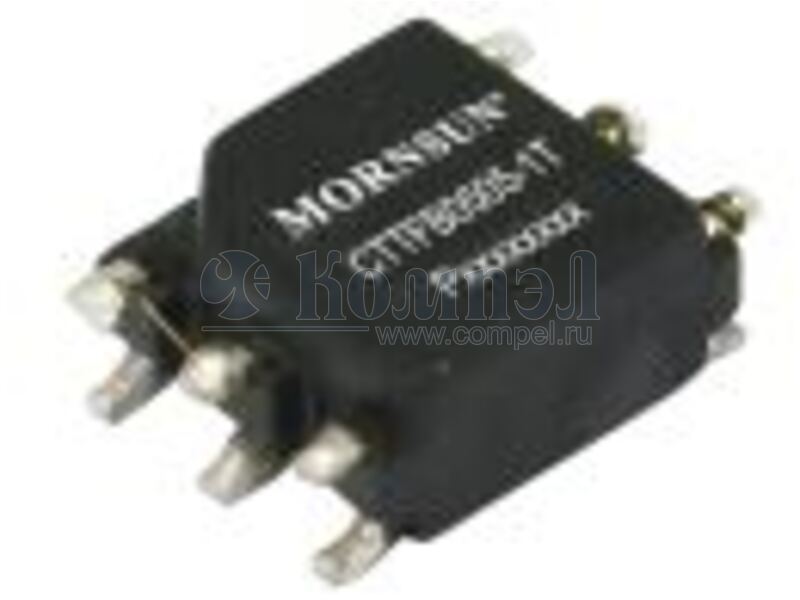

Внешний вид CTTFB0505-1T

Технические характеристики

показать свернуть
Применение DC-DC transformer for SCM1201A
Габарит
Тип монтажа
Коэффициент трансформации
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
DC/DC Converter CTTFB0505-1T FEATURES CTTFB0505-1T Transformer  Compact SMD package  I/O isolation test voltage 3000VAC/4250VDC  Operating ambient temperature range: -40℃ to +125℃  Meets EN62368 standards RoHS  Meet AEC-Q200 standards(testing) CTTFB0505-1T transformers feature 3000VAC/4250VDC primary side to secondary side and operating temperature of -40℃ to +125℃. Compatible with SCM1201ATA used as an 1W DC-DC converter with 5V input. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage(VDC) Part No. Nominal Output Voltage(VDC) Output Current(mA) Max. Power (W) 5 200 1 (Range) 5 (4.5-5.5) CTTFB0505-1T Note: Pins and phase points of the transformers refer to Phase Diagram. General Specifications Item Operating Conditions Inductance(L) ① DCR Min. Typ. Max. pin 1 to pin 3 -- 564.5 -- pin 6 to pin 4 -- 737.3 -- pin 1 to pin 3 -- 0.53 -- pin 6 to pin 4 -- 0.65 -- 4250 3000 --- --- Primary-Secondary Electric Strength Test for 1 minute with a leakage current of 1mA max. Isolation Isolation Capacitance Primary-Secondary capacitance at 100kHz/0.1V Unit μH Ω VDC VAC -- 20 -- pF 11 -- -- Vus -- -- 95 %RH Operating Temperature -40 -- +125 Storage Temperature -55 -- +125 Voltage-Time ② Storage Humidity Non-condensing ③ ④ Reflow Soldering ⑤ Temperature Moisture Sensitivity Level (MSL) ℃ Peak temp.≤245℃, maximum duration time≤60s over 217℃. IPC/JEDEC J-STD-020D.1 Level 1 Notes: ①Test conditions: 100kHz/0.1V; ②Product of input voltage and excitation time; ③The temperature of the transformer(ambient plus temperature rise) should be within the operating temperature range; ④The storage temperature of the transformer only; ⑤We suggest that times of reflow soldering should not exceed twice, For actual application, please refer to IPC/JEDEC J-STD-020D.1. Mechanical Specifications Case Material Black plastic; flame-retardant and heat-resistant (UL94 V-0) Dimensions 6.50 x 8.80 x 3.60mm Weight 0.3g(Typ.) Cooling Method Free air convection Material certification Material UL No. Wire E234867 Bobbin E150608 2020.11.14-A/2 Page 1 of 3 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на CTTFB0505-1T

CTTFB05xx-1T_EN Keywords:

Дата модификации: 14.11.2020

Размер: 1.14 Мб

3 стр.

DC/DC Converter CTTFB0505-1T FEATURES CTTFB0505-1T Transformer  Compact SMD package  I/O isolation test voltage 3000VAC/4250VDC  Operating ambient temperature range: -40℃ to +125℃  Meets EN62368 standards  Meet AEC-Q200 standards(testing) RoHS CTTFB0505-1T transformers feature 3000VAC/4250VDC primary side to secondary side and operating temperature of -40℃ to +125℃. Compatible with SCM1201ATA used as an 1W DC-DC converter with 5V input. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Input Voltage(VDC) Part No. Nominal Output Voltage(VDC) Output Current(mA) Max. Power (W) 5 200 1 (Range) 5 (4.5-5.5) CTTFB0505-1T Note: Pins and phase points of the transformers refer to Phase Diagram. General Specifications Item Operating Conditions Inductance(L)① DCR Min. Typ. Max. pin 1 to pin 3 -- 564.5 -- pin 6 to pin 4 -- 737.3 -- pin 1 to pin 3 -- 0.53 -- pin 6 to pin 4 -- 0.65 -- 4250 3000 --- --- VDC VAC -- 20 -- pF 11 -- -- Vus %RH Primary-Secondary Electric Strength Test for 1 minute with a leakage current of 1mA max. Isolation Isolation Capacitance Primary-Secondary capacitance at 100kHz/0.1V Voltage-Time ② Storage Humidity -- -- 95 Operating Temperature Non-condensing -40 -- +125 Storage Temperature④ -55 -- +125 ③ Reflow Soldering ⑤ Temperature Moisture Sensitivity Level (MSL) Unit μH Ω ℃ Peak temp.≤245℃, maximum duration time≤60s over 217℃. IPC/JEDEC J-STD-020D.1 Level 1 Notes: ①Test conditions: 100kHz/0.1V; ②Product of input voltage and excitation time; ③The temperature of the transformer(ambient plus temperature rise) should be within the operating temperature range; ④The storage temperature of the transformer only; ⑤We suggest that times of reflow soldering should not exceed twice, For actual application, please refer to IPC/JEDEC J-STD-020D.1. Mechanical Specifications Case Material Black plastic; flame-retardant and heat-resistant (UL94 V-0) Dimensions 6.50 x 8.80 x 3.60mm Weight 0.3g(Typ.) Cooling Method Free air convection 2019.10.15-A/1 Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на CTTFB0505-1T

CTTFB05xx-1T_EN Keywords:

Дата модификации: 25.12.2019

Размер: 597.4 Кб

4 стр.
