IF1505XT-1WR3

Mornsun

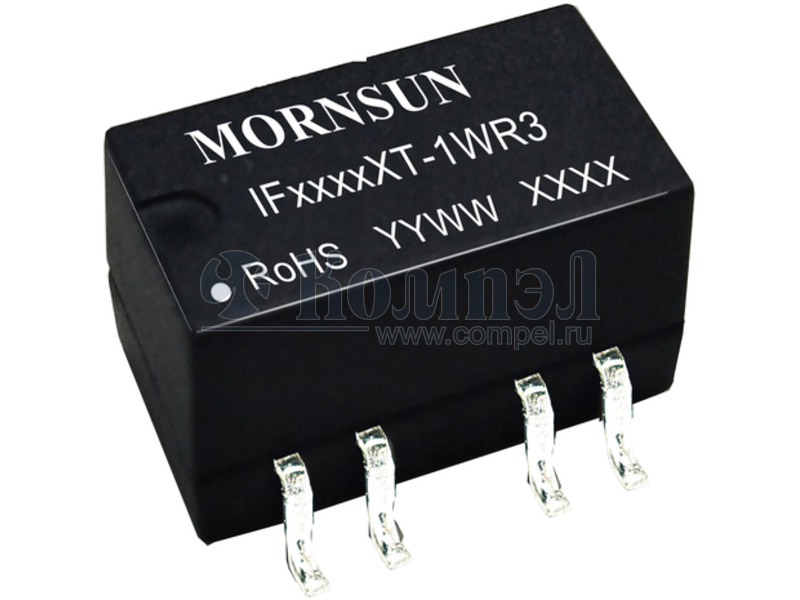

DC/DC Converter IF_XT-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage, regulated single output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +85℃  High efficiency up to 71%  Compact SMD package RoHS EN 62368-1  I/O isolation test voltage 3k VDC Patent Protection  Industry standard pin-ou...
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
Уровень пульсаций
КПД
Напряжение изоляции вход-выход
Размер 15.24×11.4×7.25 мм
Рабочая температура
