K78X2T-1000R3

Mornsun
DC/DC Converter K78_T-1000R3 Series Wide input voltage Non-isolated and Regulated Single FEATURES Output  High efficiency up to 95%  No-load input current as low as 0.2mA  Operating ambient temperature range: -40℃ to +85℃  Output short-circuit protection RoHS EN 62368-1  SMD package BS EN 62368-1 K78_T-1000R3 series are high efficiency switching regulators. The converters feature hi...
развернуть ▼ свернуть ▲

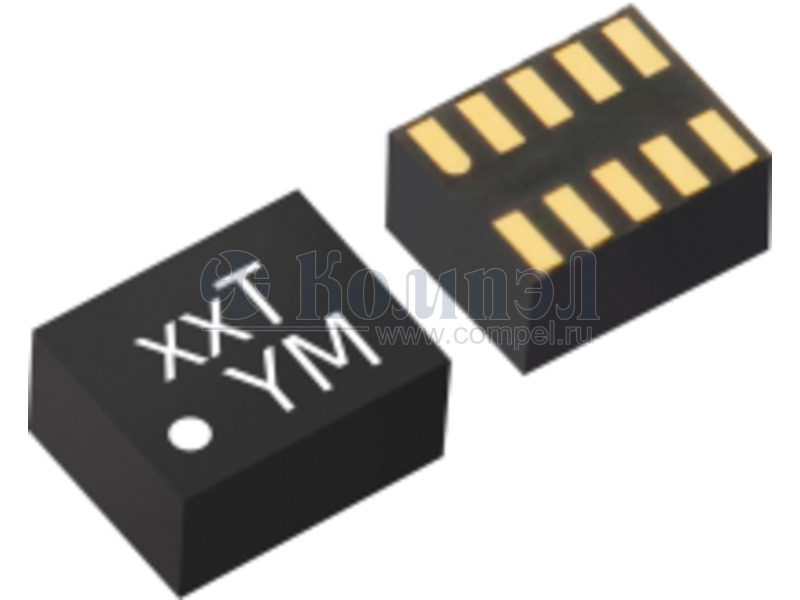

Внешний вид серии K78_T-1000R3

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
КПД
Напряжение изоляции вход-выход
Размер 15.24×11.4×8.25 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
DC/DC Converter K78_T-1000R3 Series Wide input voltage Non-isolated and Regulated Single FEATURES Output  High efficiency up to 95%  No-load input current as low as 0.2mA  Operating ambient temperature range: -40℃ to +85℃  Output short-circuit protection RoHS EN 62368-1  SMD package BS EN 62368-1 K78_T-1000R3 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short circuit protection in a compact SMD package. These products are widely used in applications such as industrial control, instrumentation and electric power. Selection Guide Input Voltage (VDC)* Certification Part No. K7801T-1000R3 K78X2T-1000R3 K7802T-1000R3 K7803T-1000R3 EN/BS EN K7805T-1000R3 K78X6T-1000R3 K7809T-1000R3 K7812T-1000R3 Nominal (Range) 12 (4.75-32) 12 (4.75-32) 12 (4.75-32) 24 (6.5-36) 24 (8-36) 24 (10-36) 24 (13-36) 24 (16-36) Output Full Load Efficiency (%) Typ. Capacitive Load (µF) Voltage (VDC) Current (mA) Max. Vin Min. / Vin Max. Max. 1.5 1000 76/66 680 1.8 1000 79/69 680 2.5 1000 86/74 680 3.3 1000 90/80 680 5 1000 93/85 680 6.5 1000 93/86 680 9 1000 94/89 680 12 800 95/92 680 Note:*For input voltage exceeding 30 VDC, an input capacitor of 22uF/50V is required. Input Specifications Item Operating Conditions No-load Input Current Min. Typ. Max. Unit -- 0.2 1 mA Reverse Polarity at Input Avoid / Not protected Input Filter Ctrl* Capacitance filter Module on Open or pulled high (TTL level 3.2-5.5VDC) Module off Pulled low to GND level (0-0.8VDC) Input current when off -- 0.2 1 Item Operating Conditions Min. Typ. Max. Voltage Accuracy Full load, input voltage range 1.5/1.8/2.5/3.3VDC output -- ±2 ±4 Others -- ±2 ±3 Linear Regulation Full load, input voltage range 1.5/1.8/2.5VDC output -- ±0.3 ±0.6 Others -- ±0.2 ±0.4 Load Regulation Nominal input voltage, 10% -100% load 1.5/1.8/2.5VDC output -- 0.8 ±1.5 Others -- 0.3 ±0.6 mA Output Specifications 2022.01.17-A/4 Unit % Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на K7803T-1000R3

K78_T-1000R3系列 Keywords:

Дата модификации: 17.01.2022

Размер: 1.53 Мб

5 стр.

DC/DC Converter K78_T-1000R3 Series Wide input voltage Non-isolated and Regulated Single Output FEATURES  High efficiency up to 95%  No-load input current as low as 0.2mA  Operating ambient temperature range -40℃ to +85℃  Output short-circuit protection RoHS  SMD package  EN62368 Approval K78_T-1000R3 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short circuit protection in a compact SMD package. These products are widely used in applications such as industrial control, instrumentation and electric power. Selection Guide Input Voltage (VDC)* Certification Part No. K7801T-1000R3 K78X2T-1000R3 K7802T-1000R3 K7803T-1000R3 CE K7805T-1000R3 K78X6T-1000R3 K7809T-1000R3 K7812T-1000R3 Nominal (Range) 12 (4.75-32) 12 (4.75-32) 12 (4.75-32) 24 (6.5-36) 24 (8-36) 24 (10-36) 24 (13-36) 24 (16-36) Output Voltage (VDC) Current (mA) Max. Full Load Efficiency (%) Vin Min. / Vin Max. Max. Capacitive Load (µF) 1.5 1000 76/66 680 1.8 1000 79/69 680 2.5 1000 86/74 680 3.3 1000 90/80 680 5 1000 93/85 680 6.5 1000 93/86 680 9 1000 94/89 680 12 800 95/92 680 Note:*For input voltage exceeding 30 VDC, an input capacitor of 22uF/50V is required. Input Specifications Item Operating Conditions No-load Input Current Min. Typ. Max. Unit -- 0.2 1 mA Reverse Polarity at Input Avoid / Not protected Input Filter Ctrl* Capacitance filter Module on Open or pulled high (TTL level 3.2-5.5VDC) Module off Pulled low to GND level (0-0.8VDC) Input current when off -- 0.2 1 Item Operating Conditions Min. Typ. Max. Voltage Accuracy Full load, input voltage range 1.5/1.8/2.5/3.3VDC output -- ±2 ±4 Others -- ±2 ±3 Linear Regulation Full load, input voltage range 1.5/1.8/2.5VDC output -- ±0.3 ±0.6 Others -- ±0.2 ±0.4 mA Output Specifications 2018.09.15-A/3 Unit % Page 1 of 5 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию K78_T-1000R3

K78_T-1000R3系列 Keywords:

Дата модификации: 26.11.2018

Размер: 769 Кб

5 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
