LO03-10B05

Mornsun
AC/DC Converter LO03-10Bxx Series FEATURES 3W, AC-DC converter  85 - 264V Universal AC or wide 100 - 370V DC Input  Operating ambient temperature range: -25℃ to +70℃      RoHS High I/O isolation test voltage up to 3000VAC Regulated output, low ripple & noise Output short circuit, over-current protection High efficiency, high reliability 2 years warranty LO03-10Bxx series is one...
развернуть ▼ свернуть ▲

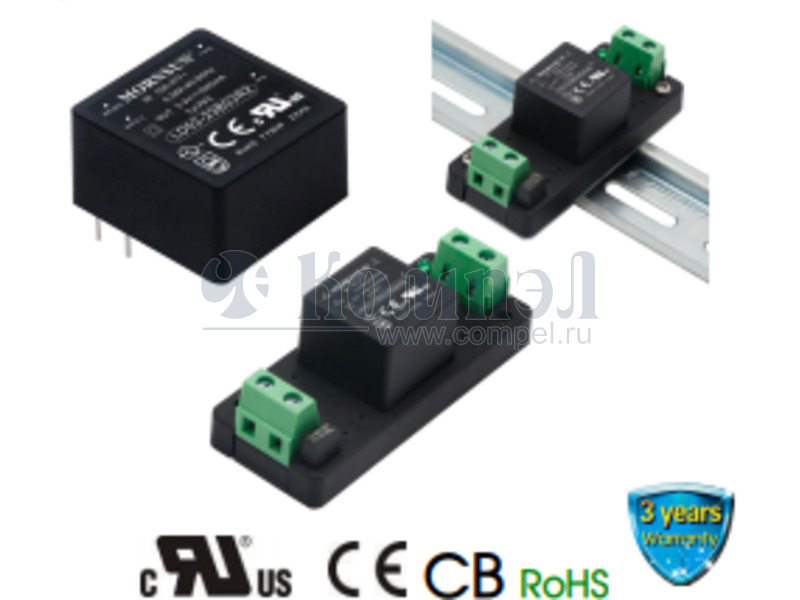

Внешний вид серии LO03-10B

Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Применение
КПД
Размер 42×16×17 мм
Рабочая температура
Примечание AC-DC Regulated Power Supply Module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ LS03-13B05R3 (MORNSUN)

— 1 шт КЗ, перегрузка, перенапряжение — — — AC-DC Regulated Power Supply Module

Файлы 2

показать свернуть
AC/DC Converter LO03-10Bxx Series FEATURES 3W, AC-DC converter  85 - 264V Universal AC or wide 100 - 370V DC Input  Operating ambient temperature range: -25℃ to +70℃      RoHS High I/O isolation test voltage up to 3000VAC Regulated output, low ripple & noise Output short circuit, over-current protection High efficiency, high reliability 2 years warranty LO03-10Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No. Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max. LO03-10B03 2.3W 3.3V/700mA 69 3000 LO03-10B05 5V/600mA 73 3000 LO03-10B09 9V/330mA 76 1000 LO03-10B12 12V/250mA 78 1000 LO03-10B15 3W 15V/200mA 78 500 LO03-10B24 24V/125mA 79 330 Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. AC input 85 -- 264 VAC DC input 100 -- 370 VDC Hz 47 -- 60 115VAC -- -- 0.09 230VAC -- -- 0.055 115VAC -- 10 -- 230VAC -- 20 -- Input Frequency Input Current Inrush Current Leakage Current 240VAC Unit A 0.25mA RMS Max. Recommended External Input Fuse 1A/250V slow-blow required Hot Plug Unavailable Output Specifications Item Min. Typ. Max. 3.3V output -- ±6 -- others -- ±5 -- 3.3V output -- ±2.5 -- others -- ±1.5 -- Load Regulation 10% -100% load -- ±3 -- Ripple & Noise* 20MHz bandwidth (peak-to-peak value) Output Voltage Accuracy Line Regulation Operating Conditions Unit % -- 80 150 mV Stand-by Power Consumption -- -- 0.5 W Temperature Coefficient -- ±0.02 -- %/℃ Short Circuit Protection Hiccup, continuous, self-recovery Over-current Protection ≥130%Io self-recovery Min. Load 10 -- -- 2019.10.15-A/2 % Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LO03-10B24

LO03-10Bxx Keywords:

Дата модификации: 22.12.2021

Размер: 551.1 Кб

4 стр.

AC/DC Converter LO03-10Bxx Series FEATURES 3W, AC-DC converter  85 - 264V Universal AC or wide 100 - 370V DC Input  Operating ambient temperature range: -25℃ to +70℃      RoHS High I/O isolation test voltage up to 3000VAC Regulated output, low ripple & noise Output short circuit, over-current protection High efficiency, high reliability 2 years warranty LO03-10Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No. Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max. LO03-10B03 2.3W 3.3V/700mA 69 3000 LO03-10B05 5V/600mA 73 3000 LO03-10B09 9V/330mA 76 1000 LO03-10B12 12V/250mA 78 1000 LO03-10B15 3W 15V/200mA 78 500 LO03-10B24 24V/125mA 79 330 Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. AC input 85 -- 264 VAC DC input 100 -- 370 VDC Hz 47 -- 60 115VAC -- -- 0.09 230VAC -- -- 0.055 115VAC -- 10 -- 230VAC -- 20 -- Input Frequency Input Current Inrush Current Leakage Current 240VAC Unit A 0.25mA RMS Max. Recommended External Input Fuse 1A/250V slow-blow required Hot Plug Unavailable Output Specifications Item Min. Typ. Max. 3.3V output -- ±6 -- others -- ±5 -- 3.3V output -- ±2.5 -- others -- ±1.5 -- Load Regulation 10% -100% load -- ±3 -- Ripple & Noise* 20MHz bandwidth (peak-to-peak value) Output Voltage Accuracy Line Regulation Operating Conditions Unit % -- 80 150 mV Stand-by Power Consumption -- -- 0.5 W Temperature Coefficient -- ±0.02 -- %/℃ Short Circuit Protection Hiccup, continuous, self-recovery Over-current Protection ≥130%Io self-recovery Min. Load 10 -- -- 2019.10.15-A/2 % Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию LO03-10B

Subject:

Дата модификации: 29.09.2019

Размер: 551.1 Кб

4 стр.
