LS10-26B12R3

Mornsun
AC/DC Converter LS10-26BxxR3 Series FEATURES 10W, DIY AC/DC converter     Report EN62368-1 BS EN 62368-1 Ultra-wide 85 - 528VAC and 100 - 745VDC input voltage range Accepts AC or DC input (dual-use of same terminal) Working available with any two phases Operating ambient temperature range: -40℃ to +85℃  High I/O isolation test voltage up to 4000VAC  Multi application, flexible layo...
развернуть ▼ свернуть ▲

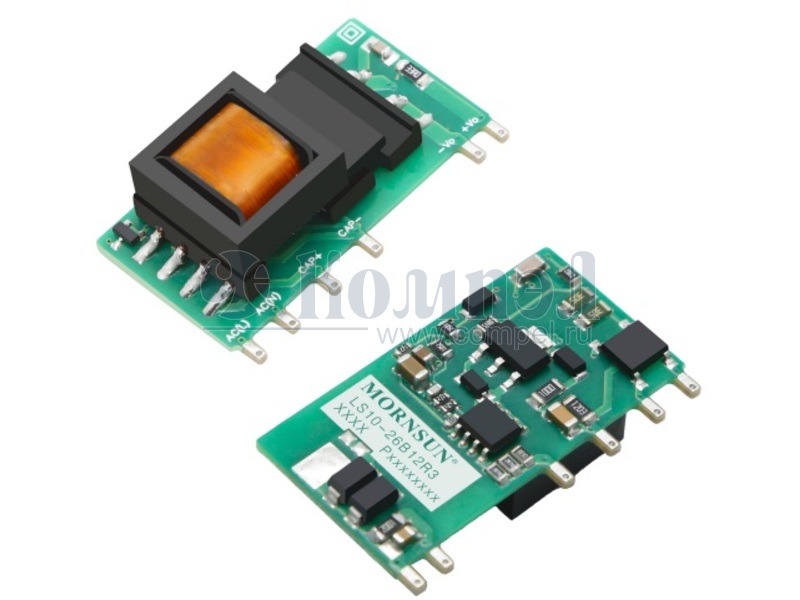

Внешний вид LS10-26B12R3

Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Конструктивное исполнение
Типы защиты
Напряжение изоляции вход-выход
КПД
Размер 38×20×15.25 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
AC/DC Converter LS10-26BxxR3 Series FEATURES 10W, DIY AC/DC converter     Report EN62368-1 BS EN 62368-1 Ultra-wide 85 - 528VAC and 100 - 745VDC input voltage range Accepts AC or DC input (dual-use of same terminal) Working available with any two phases Operating ambient temperature range: -40℃ to +85℃  High I/O isolation test voltage up to 4000VAC  Multi application, flexible layout  Output short circuit, over-current protection RoHS LS10-26BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation applications which have high requirement for dimension. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No. Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 230VAC (%) Typ. Capacitive Load (uF) Max. LS10-26B03R3 6.6W 3.3V/2000mA 70 1500 5V/2000mA 77 1500 9V/1100mA 80 1000 12V/830mA 82 680 LS10-26B15R3 15V/670mA 82 470 LS10-26B24R3 24V/420mA 83 330 Certification LS10-26B05R3 EN LS10-26B09R3 10W LS10-26B12R3 Note: 1. The nominal output voltage refers to the voltage applied to the load terminal after adding external circuits. 2. If the product is used in a severe vibration application, it needs to be glued and fixed. Input Specifications Item Input Voltage Range Input Certified Voltage Range Operating Conditions Min. Typ. Max. Unit AC input 85 -- 528 VAC DC input 100 -- 745 VDC AC input 100 -- 480 VAC Hz 47 -- 63 115VAC -- -- 0.30 230VAC -- -- 0.15 380VAC -- -- 0.10 115VAC -- 15 -- 230VAC -- 30 -- 380VAC -- 50 -- Input Frequency Input Current Inrush Current Leakage Current A 0.5mA RMS Max. 480VAC/50Hz 2A, slow-blow, required (The actual use needs to be selected according to the application environment) Recommended External Input Fuse Hot Plug Unavailable Output Specifications Item Operating Conditions Min. Typ. Max. -- ±6 -- 0% - 10% load -- ±5 -- 10% - 100% load -- ±4 -- -- ±5 -- 3.3V Output Voltage Accuracy 5V 9V/12V/15V/24V Line Regulation Rated load Load Regulation 10% - 100% load 3.3V -- ±2 -- 5V/9V/12V/15V/24V -- ±1.5 -- -- ±3 -- 2022.12.23-A/2 Unit % Page 1 of 8 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LS10-26B12R3

LS10-26BxxR3 Keywords:

Дата модификации: 30.01.2023

Размер: 2.33 Мб

8 стр.
