LS15-13B05SS

Mornsun
AC/DC Converter LS15-13BxxSS(-F) Series 15W, AC-DC converter FEATURES  Universal 85-305VAC or 100-430VDC input voltage  Accepts AC or DC input(dual-use of same terminal)  Operating ambient temperature range: -40℃ to +85℃       CB RoHS Small size, high power density Low power consumption, green power Output short circuit, over-current, over-voltage protection Regulated output, low ri...
развернуть ▼ свернуть ▲

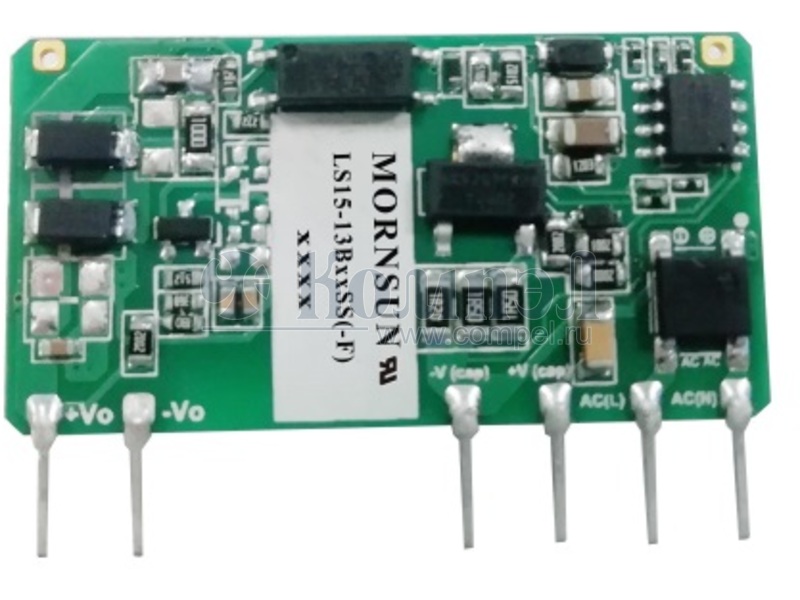

Внешний вид LS15-13B05SS

Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты
Количество выходов
Тип управления выходом
Исполнение
Напряжение изоляции вход-выход
Применение
Размер 44.5×24×15 мм
Рабочая температура
Примечание AC-DC Regulated Power Supply Module
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
AC/DC Converter LS15-13BxxSS(-F) Series 15W, AC-DC converter FEATURES  Universal 85-305VAC or 100-430VDC input voltage  Accepts AC or DC input(dual-use of same terminal)  Operating ambient temperature range: -40℃ to +85℃       CB RoHS Small size, high power density Low power consumption, green power Output short circuit, over-current, over-voltage protection Regulated output, low ripple & noise Design to meet IEC/EN60335 standards IEC/EN/UL62368 safety approval LS15-13BxxSS(-F) series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature ultra-wide input range accepting either AC or DC voltage, high efficiency, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Part No.* Output Power Nominal Output Voltage and Current Efficiency at 230VAC (%) Typ. Capacitive Load (µF) Max. LS15-13B03SS(-F) 9.9W 3.3V/3000mA 75 20000 LS15-13B05SS(-F) 14W 5V/2800mA 77 15000 LS15-13B09SS(-F) 9V/1670mA 82 5000 LS15-13B12SS(-F) 12V/1250mA 82 4000 15V/1000mA 84 2000 24V/625mA 85 1000 Certification CE/UL/CB 15W LS15-13B15SS(-F) LS15-13B24SS(-F) Note: ① *Due to different rectification methods, the layout of 3.3V/5V/9V and 12V/15V/24V output terminals is different. ② If the product is used in a severe vibration application, it needs to be glued and fixed. Input Specifications Item Input Voltage Range Operating Conditions Min. Typ. Max. Unit AC input 85 -- 305 VAC DC input 100 -- 430 VDC 47 -- 63 Hz 115VAC -- -- 0.4 230VAC -- -- 0.25 115VAC -- 18 -- 230VAC -- 35 -- Input Frequency Input Current Inrush Current Leakage Current A 0.25mA RMS Max. 277VAC/50Hz 1A/300V, slow-blow, required Recommended External Input Fuse Hot Plug Unavailable Output Specifications Item Output Voltage Accuracy Line Regulation Operating Conditions Min. Typ. Max. 3.3VDC output -- ±3 -- Other output -- ±2 -- -- ±0.5 -- 3.3VDC output -- ±2 -- 5VDC output -- ±1.5 -- Full load Unit % Load Regulation 0%-100% load Other output -- ±1 -- Ripple & Noise* 20MHz bandwidth (peak-to-peak value) -- 80 150 Stand-by Power Consumption 230VAC input -- 0.10 0.25 W -- ±0.02 -- %/°C Temperature Coefficient 2020.06.12-A/2 mV Page 1 of 7 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на LS15-13B24SS-F

LS15-13BxxSS(-F) Keywords:

Дата модификации: 12.06.2020

Размер: 2.06 Мб

7 стр.
