PV05-27B05R2A4C

Mornsun
DC/DC Converter PVxx-27BxxR2 Series 5-15W Isolation DC-DC converter with ultra-wide, ultra-high 100-1000V DC input for Renewable Energy FEATURES  Input voltage up to 1000VDC  Wide 10:1 input voltage range of 100 -1000VDC  Industrial grade operating temperature -40℃ to +70℃  High I/O isolation test voltage of 4000VAC  High efficiency, low ripple & noise  Input reverse polarity protec...
развернуть ▼ свернуть ▲

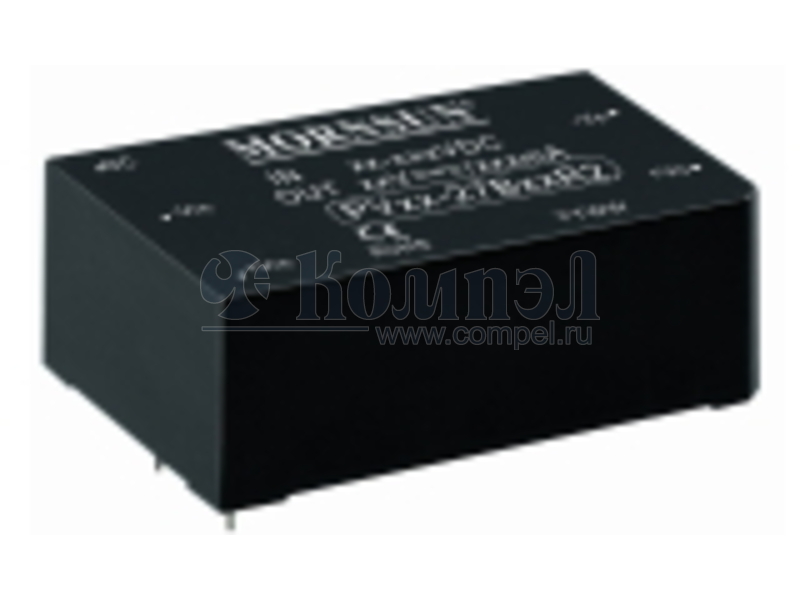

Внешний вид серии PV_27B_R2

Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности
Комплекс защит
Напряжение 1 выхода
Ток 1 выхода
КПД
Напряжение изоляции вход-выход
Размер 99×54×32 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 2

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара

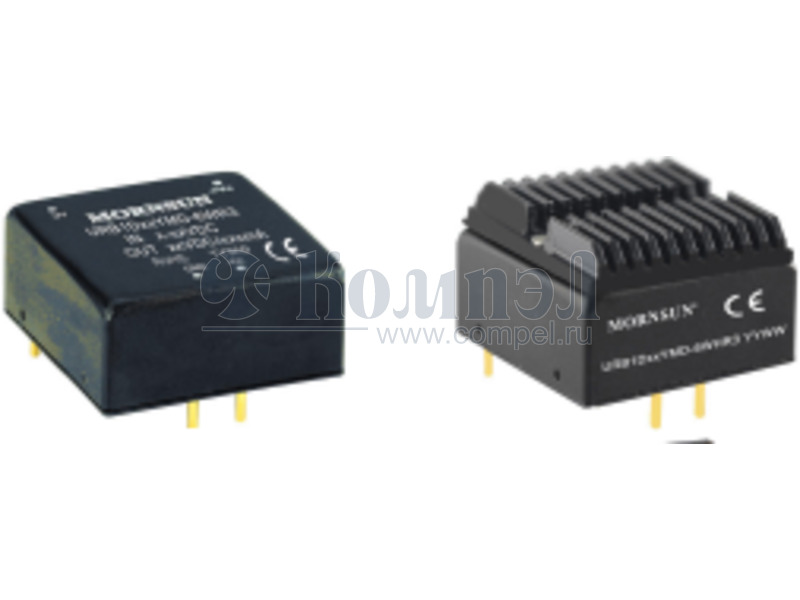

A- URB1D05YMD-6WHR3 (MORNSUN)

— в линейках 40 шт стандарт, теплоотвод, изолированный — — — — — — — — — —
A- URB1D05YMD-6WR3 (MORNSUN)

— в линейках 76 шт — — — — — — — — — — —

Файлы 2

показать свернуть
DC/DC Converter PVxx-27BxxR2 Series 5-15W Isolation DC-DC converter with ultra-wide, ultra-high 100-1000V DC input for Renewable Energy FEATURES  Input voltage up to 1000VDC  Wide 10:1 input voltage range of 100 -1000VDC  Industrial grade operating temperature -40℃ to +70℃  High I/O isolation test voltage of 4000VAC  High efficiency, low ripple & noise  Input reverse polarity protection, output short circuit, over–voltage protection  High reliability, long service life RoHS  Mounting options available for PCB mounting, chassis mounting and DIN-Rail mounting EN62109-1 PVxx-27BxxR2 series is regulated DC-DC converters with an ultra-wide and ultra-high DC input of 100-1000VDC. The products feature high efficiency, high reliability, high insulation and a high level of safety protection. This type of power supply is widely used in renewable energy industries such as photovoltaic, power generation, energy storage, inverters and high-voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. Selection Guide Model* Output Power Nominal Output Voltage and Current (Vo/Io) Efficiency at 200VDC (%) Typ. Capacitive Load (µF) Max. PV05-27B05R2 (A2C/A4C) 5W 5V/1.00A 72 6000 5V/2.00A 72 6000 9V/1.11A 76 4000 PV10-27B24R2 (A2C/A4C) 24V/0.42A 80 470 PV15-27B12R2 (A2C/A4C) 12V/1.25A 77 2000 15V/1.00A 78 1200 24V/0.625A 80 470 Certification PV10-27B05R2 (A2C/A4C) PV10-27B09R2 (A2C/A4C) EN PV15-27B15R2 (A2C/A4C) 10W 15W PV15-27B24R2 (A2C/A4C) Note: *Use suffix “A2C” for chassis mounting and suffix “A4C” for DIN-Rail mounting. The A2C and A4C suffix parts include CE certification. Input Specifications Item Operating Conditions Min. Typ. Max. Unit 100 -- 1000 VDC 200VDC -- -- 38 600VDC -- -- 15 1000VDC -- -- 10 200VDC -- -- 75 600VDC -- -- 25 1000VDC -- -- 16 200VDC -- -- 120 600VDC -- -- 40 1000VDC -- -- 22 200VDC -- 7 -- 600VDC -- 20 -- 1000VDC -- 30 -- Input Voltage Range PV05 model Input Current PV10 model PV15 model Inrush Current External Input Fuse Hot Plug mA A PV05/ PV10 model 1A/1500VDC, required PV15 model 2A/1500VDC, required Unavailable 2021.09.05-A/5 Page 1 of 6 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на PV15-27B24R2A4C

Subject:

Дата модификации: 27.10.2021

Размер: 2.72 Мб

6 стр.

DC/DC Converter PVxx-27BxxR2 Series New energy isolation converter with Ultra-wide & ultra-high input voltage of 100-1000VDC FEATURES  Input voltage up to 1000VDC  Wide input voltage range (10:1): 100 -1000VDC  Industrial grade operating temperature: -40℃to +70℃  4KVAC high isolation voltage  High efficiency, Low ripple & noise  Reverse input voltage protection, Output short circuit, over–voltage protection  EN62109 approval  High reliability, long life  Mounting: PCB mounting, Chassis mounting, DIN-Rail mounting available RoHS PVxx-27BxxR2 series are regulated output DC/DC converters with features of 100-1000VDC ultra-wide and ultra-high voltage input, high efficiency and high reliability. They can be widely used in photovoltaic power generation, high-voltage inverter and so on, which provide stable operating voltage to the equipment and improve the power and the load's safety performance with multiple protection when working under abnormal conditions. Selection Guide Certification Model* PV05-27B05R2(A2C/A4C) Output Power 5W Nominal Output Voltage and Current(Vo/Io) Efficiency (200VDC, %/Typ.) Max. Capacitive Load(µF) (Full load) 5V/1A 72 6000 5V/2A 72 6000 PV10-27B05R2(A2C/A4C) PV10-27B09R2(A2C/A4C) CE 10W PV10-27B24R2(A2C/A4C) PV15-27B12R2(A2C/A4C) PV15-27B15R2(A2C/A4C) 15W PV15-27B24R2(A2C/A4C) 9V/1.11A 76 4000 24V/0.42A 80 470 12V/1.25A 77 2000 15V/1A 78 1200 24V/0.625A 80 470 Note:*Part No. with suffix of “A2/A2C” means chassis mounting and suffix of “A4/A4C” means DIN-Rail mounting (e.g. PV05-27B05R2A2/A2C means chassis mounting; PV05-27B05R2A4/A4C means DIN-Rail mounting), A2C /A4C have CE certification. Input Specifications Item Operating Conditions Min. Typ. Max. Unit 100 -- 1000 VDC 200VDC -- -- 38 600VDC -- -- 15 1000VDC -- -- 10 200VDC -- -- 75 600VDC -- -- 25 1000VDC -- -- 16 200VDC -- -- 120 600VDC -- -- 40 1000VDC -- -- 22 200VDC -- 7 -- 600VDC -- 20 -- 1000VDC -- 30 -- Input Voltage Range PV05 model Input Current PV10 model PV15 model Inrush Current External Input Fuse(A2 chassis mounting and A4 DIN-Rail mounting package series include fuse) Hot Plug PV05/ PV10 model Necessary, 1A PV15 model Necessary, 2A mA A Unavailable 2016.08.08-A/2 Page 1 of 7 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию PV_27B_R2

60W，AC-DC模块电源

Дата модификации: 08.08.2016

Размер: 2.94 Мб

7 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
