TD541SCANFD

Mornsun
TD(H)541SCANFD DFN package isolated CAN Transceiver Package Features  Ultra-small, ultra-thin, chip scale DFN package  Compliant with ISO11898-2 standard  Integrate 5V efficiently power supply  I/O power supply range supports 3.3V and 5V microprocessors  High isolation to 3000VDC (TDH541SCANFD 5000VDC)  Bus-Pin ESD protection up to 15kV(HBM)  Baud rate up to 5Mbps  -58V ...
развернуть ▼ свернуть ▲

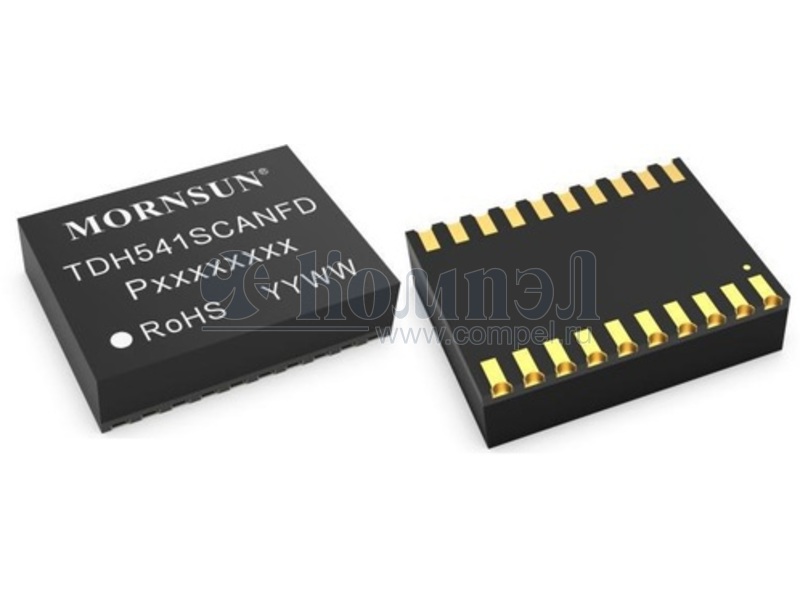

Внешний вид TDH541SCANFD

Технические характеристики

показать свернуть
Кол-во каналов передачи данных
Кратковременная импульсная защита ±
Диапазон питающих напряжений
Диапазон рабочих температур
Примечание
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Каналов Защита U пит Iпотр Аналог T раб Примечание Карточка
товара
P= TDH541SCANFD (MORNSUN)

— в ленте 4 шт ± — — Ultra-small, ultra-thin, chip-le

Файлы 1

показать свернуть
TD(H)541SCANFD DFN package isolated CAN Transceiver Package Features  Ultra-small, ultra-thin, chip scale DFN package  Compliant with ISO11898-2 standard  Integrate 5V efficiently power supply  I/O power supply range supports 3.3V and 5V microprocessors  High isolation to 3000VDC (TDH541SCANFD 5000VDC)  Bus-Pin ESD protection up to 15kV(HBM)  Baud rate up to 5Mbps  -58V to +58V bus fault protection  >25kV/us CMTI  TXD dominant time-out function  Low communication delay  The bus supports maximum 110 nodes  Industrial operating ambient temperature range: -40℃ to +125℃  Meet AEC-Q100 standards  EN62368 approval  Moisture Sensitivity Level (MSL) 3 Applications  Industrial automation, control, sensors and drive systems  Building and greenhouse environmental control(HVAC) automation  Security system  Transport  Medical treatment  Telecommunication  CAN Bus standard such as CAN open, Device Net, NMEA2000, ARNIC825, ISO11783, CAN Kingdom, CAN aerospace Functional Description TD(H)541SCANFD is a isolated CANFD Bus transceiver, which is compliant with ISO11898-2 standard. Their logic side supports 3.3V and 5V logic level conversion. TD(H)541SCANFD integrate 5 V efficiently power. The TD(H)541SCANFD provide differential transmitting and receiving capability between the CANFD protocol controller and the physical layer bus. It is capable of running at data rates of up to 5 Mbps. The device has the function of series line, over-voltage(-58V to 58V), ground loss protection and thermal shutdown so that it is especially suitable for working in harsh environment. 2021.07.08-A/5 Page 1 of 9 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на TDH541SCANFD

TD(H)541SCANFD Keywords:

Дата модификации: 28.12.2021

Размер: 2.12 Мб

9 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
