ADD-155B

MEAN WELL
AC-DC (DC-DC) с функцией UPS, 155Вт, Uвх=88-264VAC (124-370VDC), два выхода 27.6В / 5А, 5В / 3А, с зарядным устройством 27.1В/0.5А, подстр. Uвых1=24...29В, корр.коэф.мощн., изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 199х110х50 мм, -10...+50°С (70%). Прои
развернуть ▼ свернуть ▲
Фотография серии ADD-155

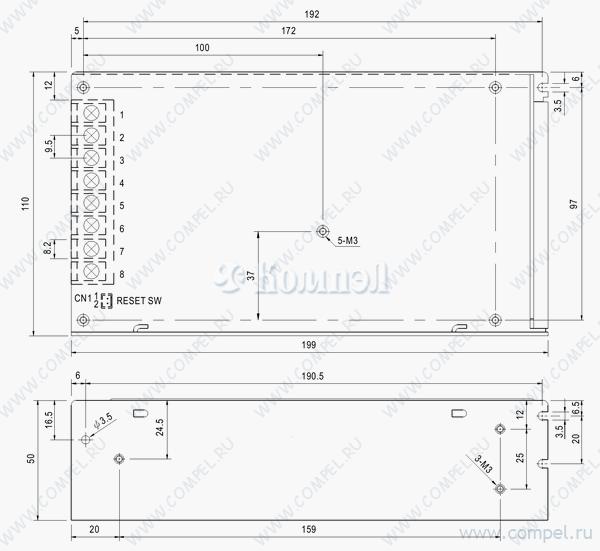

Чертеж серии ADD-155



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 199×110×50 мм
Рабочая температура
Примечание Источник питания с функцией UPS
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
ADD-155 155W Dual Output with Battery Charger(UPS Function) series ■ ‧ ‧ ‧ ‧ ‧ ‧ ‧ ‧ Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT INPUT UL62368-1 ADD-155A ADD-155B ADD-155C OUTPUT NUMBER CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 DC VOLTAGE 13.8V 5V 13.3V 27.6V 5V 27.1V 54V 5V 53.5V RATED CURRENT 9.5A 3A 0.5A 4.5A 3A 0.5A 2.3A 3A 0.2A CURRENT RANGE 0 ~ 10.5A 0 ~ 3A -------- 0 ~ 5A 0 ~ 3A -------- 0 ~ 2.5A 0 ~ 3A -------- RATED POWER 152.75W 100mVp-p -------- RIPPLE & NOISE (max.) Note.2 150mVp-p 152.75W 100mVp-p CH1: 12 ~ 14.5V VOLTAGE TOLERANCE Note.3 ±2.0% ±3.0% 149.9W -------- 200mVp-p -------- 240mVp-p -------- VOLTAGE ADJ. RANGE 100mVp-p -------- CH1: 24 ~ 29V ±1.0% ±3.0% -------- CH1: 48 ~ 58V ±1.0% ±5.0% LINE REGULATION ±1.0% ±0.5% -------- ±1.0% ±0.5% -------- ±1.0% ±0.5% -------- LOAD REGULATION ±1.0% ±2.0% -------- ±1.0% ±2.0% -------- ±1.0% ±2.0% -------- SETUP, RISE TIME 1000ms, 90ms/230VAC HOLD UP TIME (Typ.) 24ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.92 at full load EFFICIENCY (Typ.) 78% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2.5A/115VAC LEAKAGE CURRENT OVERLOAD PROTECTION OVER VOLTAGE 2000ms, 90ms/115VAC at full load 20ms/115VAC at full load 124 ~ 370VDC 81% COLD START 23A/115VAC <1mA / 240VAC 45A/230VAC CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse CH1:15.87 ~ 18.63V CH1:31.74 ~ 37.26V CH1:62.1 ~ 72.9V BATTERY LOW Protection type : Shut down o/p voltage, re-power on to recover 10V±0.8V 19.5V(+1.5V,-1V ) WORKING TEMP. -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC EMC IMMUNITY MTBF DIMENSION PACKING NOTE 81% 1.5A/230VAC WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION OTHERS BS EN/EN62368-1 IEC62368-1 TPTC004 39V±2V -20 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) on +5V output 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 164.2K hrs min. MIL-HDBK-217F (25℃) 199*110*50mm (L*W*H) 1Kg; 16pcs/16Kg/0.95CUFT ℃     http://www.meanwell.com) ℃℃ ※：https://www.meanwell.com/serviceDisclaimer.aspx File Name:ADD-155-SPEC 2021-06-28 PDF
Документация на ADD-155C

未命名 -1

Дата модификации: 28.06.2021

Размер: 592.3 Кб

2 стр.

ADD-155 155W Dual Output with Battery Charger(UPS Function) series Features : Universal AC input / Full range Built-in active PFC function Protections: Short circuit / Overload / Over voltage Battery low/battery polarity protections Cooling by free air convection 100% full load burn-in test Fixed switching frequency at PFC 67KHz, PWM 134KHz 2 years warranty SPECIFICATION ADD-155A MODEL OUTPUT INPUT CH2 CH3 CH1 CH2 CH3 CH1 CH2 DC VOLTAGE 13.8V 5V 13.3V 27.6V 5V 27.1V 54V 5V 53.5V RATED CURRENT 9.5A 3A 0.5A 4.5A 3A 0.5A 2.3A 3A 0.2A CURRENT RANGE 0 ~ 10.5A 0 ~ 3A -------- 0 ~ 5A 0 ~ 3A -------- 0 ~ 2.5A 0 ~ 3A -------- RATED POWER 152.75W 100mVp-p -------- 152.75W RIPPLE & NOISE (max.) Note.2 150mVp-p 100mVp-p CH1: 12 ~ 14.5V VOLTAGE TOLERANCE Note.3 2.0% 3.0% CH3 149.9W -------- 200mVp-p -------- CH1: 24 ~ 29V 1.0% 3.0% VOLTAGE ADJ. RANGE 100mVp-p -------- 240mVp-p -------- CH1: 48 ~ 58V 1.0% 5.0% -------- LINE REGULATION 1.0% 0.5% -------- 1.0% 0.5% -------- 1.0% 0.5% -------- LOAD REGULATION 1.0% 2.0% -------- 1.0% 2.0% -------- 1.0% 2.0% -------- SETUP, RISE TIME 1000ms, 90ms/230VAC HOLD UP TIME (Typ.) 24ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) PF>0.92 at full load EFFICIENCY (Typ.) 78% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2.5A/115VAC OVERLOAD PROTECTION OVER VOLTAGE 2000ms, 90ms/115VAC at full load 20ms/115VAC at full load 124 ~ 370VDC 81% COLD START 20A/115VAC <1mA / 240VAC 40A/230VAC CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse CH1:15.87 ~ 18.63V CH1:31.74 ~ 37.26V CH1:62.1 ~ 72.9V Protection type : Shut down o/p voltage, re-power on to recover 10V 0.8V 19.5V(+1.5V,-1V ) WORKING TEMP. -10 ~ +60 SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING 81% 1.5A/230VAC BATTERY LOW WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION NOTE ADD-155C CH1 LEAKAGE CURRENT OTHERS ADD-155B OUTPUT NUMBER 39V 2V (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) on +5V output 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A 164.2K hrs min. MIL-HDBK-217F (25 199*110*50mm (L*W*H) 1Kg; 16pcs/16Kg/0.95CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) File Name:ADD-155-SPEC 2011-06-16 PDF
Документация на серию ADD-155

ADD-155.cdr

Дата модификации: 24.08.2011

Размер: 358.4 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
