ADD-55A

MEAN WELL
AC-DC (DC-DC) с функцией UPS, 55Вт, Uвх=88-264VAC (124-370VDC), два выхода 13.8В / 3.5А, 5В / 4А, с зарядным устройством 13.4В/0.23А, подстр. Uвых1=12...14.5В, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 159х97х38 мм, -10...+60°С Производитель: MEAN WELL.
развернуть ▼ свернуть ▲
Фотография серии ADD-55

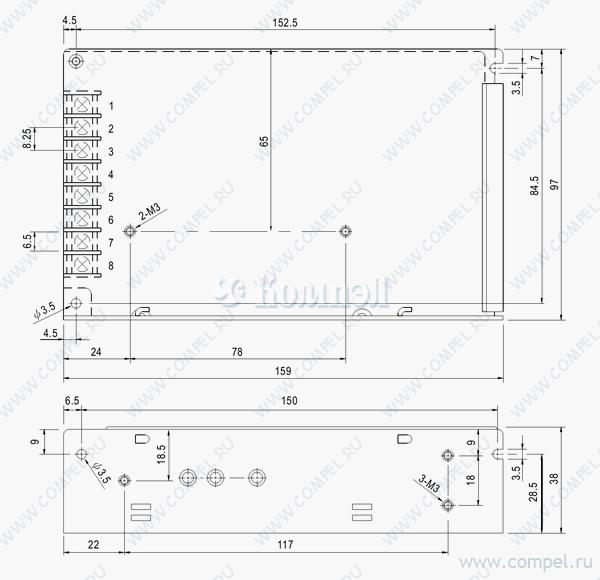

Чертеж серии ADD-55



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 159×97×38 мм
Рабочая температура
Примечание Источник питания с функцией UPS
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
ADD-55 55W Dual Output with Battery Charger(UPS Function) series ■ ‧ ‧ ‧ ‧ ‧ ‧ ‧  Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION MODEL OUTPUT INPUT ADD-55A ADD-55B CH1 CH2 CH3 CH1 CH2 CH3 DC VOLTAGE 13.8V 5V 13.4V 27.6V 5V 26.5V RATED CURRENT 2.5A 3A 0.23A 1.3A 3A 0.16A CURRENT RANGE 0 ~ 3.5A 0 ~ 4A -------- 0 ~ 2A 0 ~ 4A -------- RATED POWER 52.58W RIPPLE & NOISE (max.) Note.2 100mVp-p 55.12W 100mVp-p -------- 150mVp-p 150mVp-p -------- ±3.0% -------- CH1: 24 ~ 29V ±1.0% ±3.0% -------- ±0.5% -------- ±1.0% ±0.5% -------- ±0.5% -------- ±1.0% ±0.5% -------- VOLTAGE ADJ. RANGE CH1: 12 ~ 14.5V VOLTAGE TOLERANCE Note.3 ±1.0% LINE REGULATION ±1.0% LOAD REGULATION ±1.0% SETUP, RISE TIME 800ms, 50ms/230VAC HOLD UP TIME (Typ.) 80ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz 1600ms, 50ms/115VAC at full load 16ms/115VAC at full load 124 ~ 370VDC EFFICIENCY (Typ.) 71% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.6A/115VAC 1A/230VAC COLD START 20A/115VAC 40A/230VAC 74% LEAKAGE CURRENT <1mA / 240VAC OVERLOAD 105 ~ 150% rated output power Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse OVER VOLTAGE CH1:14.49 ~ 18.63V CH1:28.98 ~ 37.26V Protection type : Hiccup mode, recovers automatically after fault condition is removed AC fail CN1 PIN2 DC ALARM SIGNAL(OPTIONAL) Battery low under charge voltage 82.5%±2% CN1 PIN1 WORKING TEMP. Normal 0.8V max. Abnormal 5V±0.5V -10 ~ +60℃ (Refer to "Derating Curve") WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION 20 ~ 90% RH non-condensing SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved (Note 4) OTHERS EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE BS EN/EN62368-1 IEC62368-1 TPTC004 OUTPUT NUMBER PROTECTION FUNCTION UL62368-1 -20 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) on CH1 output 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 241.3K hrs min. MIL-HDBK-217F (25℃) 159*97*38mm (L*W*H) 0.57Kg; 24pcs/13.7Kg/0.83CUFT ℃     http://www.meanwell.com) ℃℃ ※：https://www.meanwell.com/serviceDisclaimer.aspx File Name:ADD-55-SPEC 2021-06-28 PDF
Документация на ADD-55B

未命名 -1

Дата модификации: 28.06.2021

Размер: 588.3 Кб

2 стр.

55W Dual Output with Battery Charger(USP Function) ADD-55 series Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Battery low protections Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 45KHz 2 years warranty SPECIFICATION ADD-55A MODEL OUTPUT INPUT CH1 CH2 CH3 CH1 CH2 DC VOLTAGE 13.8V 5V 13.4V 27.6V 5V 26.5V RATED CURRENT 2.5A 3A 0.23A 1.3A 3A 0.16A CURRENT RANGE 0 ~ 3.5A 0 ~ 4A -------- 0 ~ 2A 0 ~ 4A -------- RATED POWER 52.58W 150mVp-p -------- CH1: 12 ~ 14.5V VOLTAGE TOLERANCE Note.3 1.0% 150mVp-p CH1: 24 ~ 29V 1.0% 3.0% -------- 3.0% -------- 1.0% 0.5% -------- 1.0% 0.5% -------- LOAD REGULATION 1.0% 0.5% -------- 1.0% 0.5% -------- SETUP, RISE TIME 800ms, 50ms/230VAC HOLD UP TIME (Typ.) 80ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz 1600ms, 50ms/115VAC at full load 16ms/115VAC at full load 124 ~ 370VDC EFFICIENCY (Typ.) 71% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.6A/115VAC 1A/230VAC COLD START 20A/115VAC 40A/230VAC 74% LEAKAGE CURRENT <1mA / 240VAC OVERLOAD 105 ~ 150% rated output power Protection type : AC Charging Mode : Hiccup mode, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse OVER VOLTAGE CH1:14.49 ~ 18.63V CH1:28.98 ~ 37.26V Protection type : Hiccup mode, recovers automatically after fault condition is removed AC fail CN1 PIN2 DC ALARM SIGNAL(OPTIONAL) Battery low under charge voltage 82.5% 2% CN1 PIN1 SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE -------- LINE REGULATION WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION OTHERS 100mVp-p RIPPLE & NOISE (max.) Note.2 100mVp-p WORKING TEMP. (Note 4) CH3 55.12W VOLTAGE ADJ. RANGE PROTECTION FUNCTION ADD-55B OUTPUT NUMBER Normal 0.8V max. Abnormal 5V 0.5V -10 ~ +60 (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) on CH1 output 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A 241.3K hrs min. MIL-HDBK-217F (25 159*97*38mm (L*W*H) 0.57Kg; 24pcs/13.7Kg/0.75CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) File Name:ADD-55-SPEC 2011-06-16 PDF
Документация на серию ADD-55

ADD-55.cdr

Дата модификации: 24.08.2011

Размер: 374.9 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
