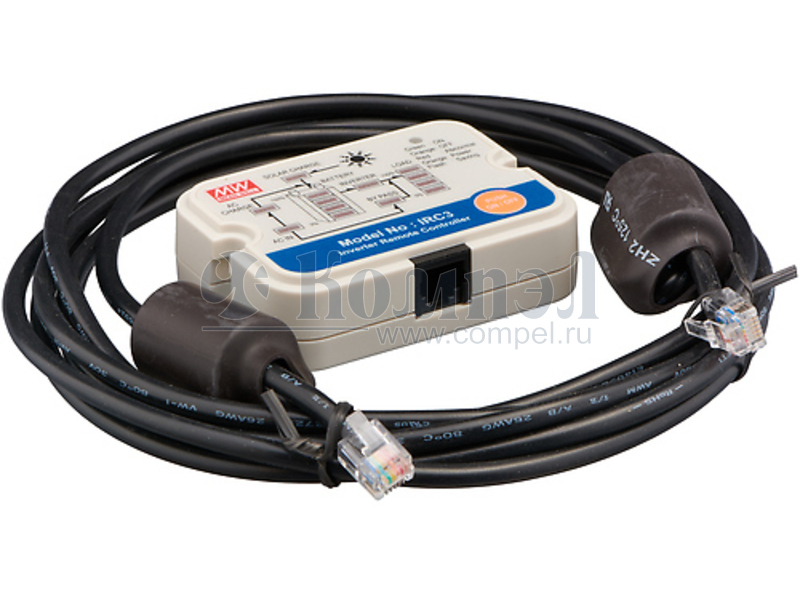

IRC3

IRC1 / IRC2 / IRC3 Power Inverter Remote Control ■ Features : •Wall-mount and control panel acceptable •Built-in ON/OFF button •Digital meters for battery level, output load level, and operating status on remote control panel •LED indicators for remote ON/OFF, abnormal and power saving mode •Remote panel with 10FT cable length, optional for 25FT or 50FT •Connect directly to the remote socket...
развернуть ▼ свернуть ▲


Технические характеристики

показать свернуть
Тип аксессуара
Описание для управления DC-AC преобразователем
Серии совместимых моделей
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
IRC1 / IRC2 / IRC3 Power Inverter Remote Control ■ Features : •Wall-mount and control panel acceptable •Built-in ON/OFF button •Digital meters for battery level, output load level, and operating status on remote control panel •LED indicators for remote ON/OFF, abnormal and power saving mode •Remote panel with 10FT cable length, optional for 25FT or 50FT •Connect directly to the remote socket of inverter, no power supply needed •3 years warranty ■ Description : IRC1 / IRC2 / IRC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal sent by inverter series and display through digital meters. IRC1 / IRC2 / IRC3 can also turn ON/OFF of inverter remotely that make the basic control more easily. SPECIFICATION MODEL OUTPUT IRC1 IRC2 DIGITAL METER ----- Display the battery level, output load level, and operating status of inverter unit CONTROL OUTPUT Remote ON/OFF for inverter unit LED INDICATOR Remote turn ON(Green) ; Remote turn Off(Orange) ; Abnormal (Red) ; Saving mode (Orange flash) REMOTE ON/OFF CONTROL FUNCTION POWER SAVING CONTROL SUITABLE SERIES WORKING TEMP. ENVIRONMENT EMC OTHERS NOTE IRC3 The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3 Power saving enable / disable activation TS-700 / 1000 / 1500 / 3000 ; TN-1500 / 3000 TS-700 / 1000 / 1500 / 3000 -20 ~ +50℃ WORKING HUMIDITY STORAGE TEMP., HUMIDITY VIBRATION EMC EMISSION 20 ~ 90% RH non-condensing EMC IMMUNITY DIMENSION PACKING Compliance to EN61000-4-2,3,4,6,8 75*55*21mm (L*W*H) 0.26Kg; 24pcs/7.3Kg/1.75CUFT TN-1500 / 3000 -40 ~ +85℃, 10 ~ 95% RH non-condensing 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes Compliance to EN55032 class A, EN61000-3-2,3, FCC PART 15 class A 1. The remote control can not re-power on for inverter at abnormal status. Mechanical Specification 75 70.5 25.25 69.74 Green Orange Red Orange Flash : : : : ON OFF Abnormal Power Saving Model No : IRC1 Inverter Remote Controller R1 50.5 55 27.5 2.63 R4 .5 2-ψ4.5 2-R2 (M3) PUSH ON / OFF 4-R 69.7 Remote port 8.2 21 HOLE IN CHASSIS SOLAR CHARGE BATTERY Green Orange Red Orange Flash : : : : ON OFF Abnormal Power Saving 100% INVERTER 100% Green : ON Orange : OFF LOAD Red : Abnormal Orange Power : Flash Saving AC CHARGE BATTERY 100% INVERTER 100% Green : ON Orange : OFF LOAD Red : Abnormal Orange Power : Flash Saving BY PASS 0% 0% 0% 0% AC IN Model No : IRC1 Inverter Remote Controller PUSH ON / OFF Model No : IRC2 Inverter Remote Controller PUSH ON / OFF Model No : IRC3 Inverter Remote Controller PUSH ON / OFF File Name:IRC1 / IRC2 / IRC3-SPEC 2017-07-14 PDF
Документация на серию IRC3

IRC1,IRC2,IRC3.cdr

Дата модификации: 21.07.2017

Размер: 108 Кб

1 стр.
