PT-6503

MEAN WELL
AC-DC (DC-DC), 65Вт, Uвх=90-264VAC (127-370VDC), три выхода +3.3В/7А, +5В/10А, +12В/1.2А, подстр. Uвых1=+/-10%, изоляция 3кVAC (вх-вых), 1,5кVAC (вх-корп), 127х76.2х42 мм, 0...+30°С Производитель: MEAN WELL
развернуть ▼ свернуть ▲
Фотография PT-6503

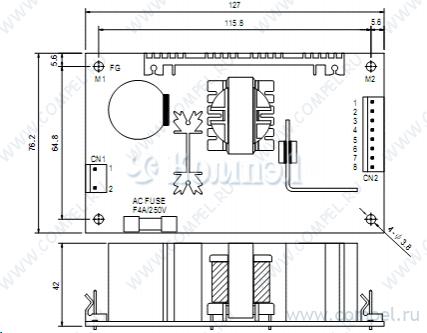

Чертеж PT-6503



Технические характеристики

показать свернуть
Серия
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 127×76×24 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Серия P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ RPT-7503 (MW)

— AC-DC сетевой преобразователь - P вых: 62 Вт; Выход: 3.3 В, 5 В, 12 В; U1: 3.3 В; I1: 0... КЗ, перегрузка, перенапряжение —

Файлы 2

показать свернуть
P T- 6 5 0 3 65W Triple Output with 3.3V output User’s Manual ■ Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 65KHz 2 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION MODEL INPUT CH1 3.3V CH2 5V RATED CURRENT 6A 6A 1A CURRENT RANGE 0 ~ 7A 0.2 ~ 10A 0 ~ 1.2A RATED POWER Total power max. 61.8W(CH1+CH2 max. 54W) RIPPLE & NOISE (max.) Note.2 50mVp-p VOLTAGE ADJ. RANGE IEC62368-1 50mVp-p CH3 12V 100mVp-p CH1: 3 ~ 3.6V VOLTAGE TOLERANCE Note.3 ±3.0% +4,-2% ±8.0% LINE REGULATION ±1.0% ±1.0% ±2.0% LOAD REGULATION SETUP, RISE TIME ±3.0% 800ms, 50ms at full load ±3.0% ±8.0% HOLD UP TIME (Typ.) 60ms at full load VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 72% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.8A/115VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE BS EN/EN62368-1 TPTC004 DC VOLTAGE LEAKAGE CURRENT OTHERS UL62368-1 PT-6503 OUTPUT NUMBER OUTPUT www. tuv.com ID 2000000000 [DC input operation possible by connecting AC/N(-), AC/L(+)] 127 ~ 370VDC 0.9A/230VAC COLD START 20A/115V <1mA / 240VAC 40A/230V 120 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V on +5V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -20 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC 1min. I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 222Khrs min. MIL-HDBK-217F (25℃) 127*76*42mm (L*W*H) 0.28Kg; 54pcs/16.2Kg/1.28CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Mounting holes M1 and M2 should be grounded for EMI purposes. 6. Heat Sink HS1,HS2 can not be shorted. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:PT-6503-SPEC 2021-09-15 PDF
Документация на PT-6503

PT-6503-20210915.cdr

Дата модификации: 17.09.2021

Размер: 94.3 Кб

2 стр.

P T- 6 5 0 3 65W Triple Output with 3.3V output Features : Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection 100% full load burn-in test Fixed switching frequency at 65KHz 2 years warranty SPECIFICATION MODEL PT-6503 OUTPUT NUMBER OUTPUT INPUT DC VOLTAGE CH1 3.3V CH2 5V CH3 12V RATED CURRENT 6A 6A 1A CURRENT RANGE 0 ~ 7A 0.2 ~ 10A 0 ~ 1.2A RATED POWER Total power max. 61.8W(CH1+CH2 max. 54W) RIPPLE & NOISE (max.) Note.2 50mVp-p VOLTAGE ADJ. RANGE 3.0% +4,-2% 8.0% LINE REGULATION 1.0% 1.0% 2.0% 3.0% 8.0% LOAD REGULATION SETUP, RISE TIME 3.0% 800ms, 50ms at full load HOLD TIME (Typ.) 60ms at full load VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 72% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.8A/115VAC OVER LOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE EMI CONDUCTION & RADIATION EMC (Note 4) HARMONIC CURRENT 127 ~ 370VDC 0.9A/230VAC COLD START 20A/115V <1mA / 240VAC 40A/230V 120 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V on +5V Protection type : Hiccup mode, recovers automatically after fault condition is removed -10 ~ +60 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1min. I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC Compliance to EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11 Light industry level, criteria A MTBF 222Khrs min. MIL-HDBK-217F (25 127*76*42mm (L*W*H) 0.28Kg; 54pcs/16.2Kg/1.35CUFT DIMENSION PACKING NOTE 100mVp-p VOLTAGE TOLERANCE Note.3 LEAKAGE CURRENT OTHERS 50mVp-p CH1: 3 ~ 3.6V ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Mounting holes M1 and M2 should be grounded for EMI purposes. File Name:PT-6503-SPEC 2006-01-27 PDF
Документация PT-6503

Pt-6503.cdr

Дата модификации: 07.02.2006

Размер: 162.9 Кб

2 стр.
