RID-65A

AC/DC преобразователь корпусированный
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум

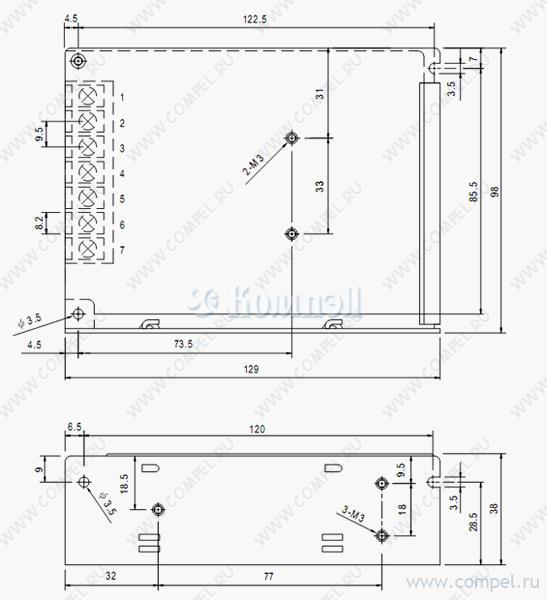

Размер 129×98×38 мм
Рабочая температура
Примечание AC-DC Regulated Power Supply Module, 2 Output, 66W, Hybrid
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 4

показать свернуть
Тип Наименование Корпус Упаковка i P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ RD-65A (MW)

в коробках 30 шт AC-DC сетевой преобразователь - P вых: 66 Вт; Выход: 5 В, 12 В; U1: 4.75...5.5 В; I1: 0... КЗ, перегрузка, перенапряжение
A+ LM75-10A0512-30 (MORNSUN)

КЗ, перегрузка, перенапряжение
A+ LM75-10A0512-40 (MORNSUN)


КЗ, перегрузка, перенапряжение
A+ LM75-10D0512-30-Q (MORNSUN)


КЗ, перегрузка, перенапряжение

Файлы 2

показать свернуть
RID-65 65W Dual Output Switching Power Supply ■ Features : Isolated output & GND for CH1,CH2 Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105℃ long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70℃ Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty series User’s Manual Bauar t gepruft Sicherheit egel ma ge od o s be wac g SPECIFICATION www. tuv.com ID 2000000000 UL62368-1 MODEL OUTPUT INPUT RID-65A OUTPUT NUMBER CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 6A 3A 4A 2A 0 ~ 4A 0 ~ 8A 0 ~ 3A 120mVp-p 80mVp-p 150mVp-p CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 ±2.0% ±8.0% CH1: 4.75 ~ 5.5V ±2.0% ±10% LINE REGULATION Note.4 ±0.5% ±1.5% ±0.5% ±2.0% LOAD REGULATION Note.5 ±0.5% ±5.0% ±0.5% ±5.0% CURRENT RANGE Note.6 0 ~ 8A RATED POWER Note.6 66W VOLTAGE ADJ. RANGE SETUP, RISE TIME 500ms, 20ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 80% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2A/115VAC 1.2A/230VAC COLD START 50A/230VAC OVERLOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 7) EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING NOTE TPTC004 68W RIPPLE & NOISE (max.) Note.2 80mVp-p LEAKAGE CURRENT OTHERS BS EN/EN62368-1 IEC62368-1 RID-65B 1200ms, 30ms/115VAC at full load 12ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 81% <2mA / 240VAC 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70℃ (Refer to "Derating Curve") 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.03%/℃ (0 ~ 50℃)on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 265.9Khrs min. MIL-HDBK-217F (25℃) 129*98*38mm (L*W*H) 0.44Kg; 30pcs/14.2Kg/0.72CUFT 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:RID-65-SPEC 2021-09-15 PDF
Документация на RID-65B

RID-65-20210915.cdr

Дата модификации: 28.09.2021

Размер: 108 Кб

2 стр.

RID-65 65W Dual Output Switching Power Supply series Features : Isolated output & GND for CH1,CH2 Universal AC input / Full range Protections:Short circuit/Over load/Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70 Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty SPECIFICATION MODEL OUTPUT INPUT RID-65A RID-65B OUTPUT NUMBER CH1 CH2 CH1 DC VOLTAGE 5V 12V 5V 24V RATED CURRENT 6A 3A 4A 2A 0.2 ~ 4A 0.3 ~ 8A 0.2 ~ 3A CURRENT RANGE Note.6 0.3 ~ 8A RATED POWER Note.6 66W CH2 68W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 2.0% 80mVp-p CH1: 4.75 ~ 5.5V 2.0% 8.0% 150mVp-p 10% LINE REGULATION Note.4 0.5% 1.5% 0.5% 2.0% LOAD REGULATION Note.5 0.5% 5.0% 0.5% 5.0% SETUP, RISE TIME 500ms, 20ms/230VAC HOLD TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 88 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY(Typ.) 81% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 2A/115VAC 1.2A/230VAC COLD START 40A/230VAC LEAKAGE CURRENT 1200ms, 30ms/115VAC at full load 12ms/115VAC at full load 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 82% <2mA / 240VAC 110 ~ 150% rated output power OVER LOAD PROTECTION OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed -25 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 )on +5V output 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, TUV EN60950-1 Approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMC (Note 7) OTHERS HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY MTBF Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A DIMENSION PACKING NOTE 265.9Khrs min. MIL-HDBK-217F (25 129*98*38mm (L*W*H) 0.44Kg; 30pcs/14.2Kg/0.72CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load. 6. Each output can work within current range. But total output power can't exceed rated output power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:RID-65-SPEC 2006-08-01 PDF
Документация на серию RID-65

\\Fileserver-s\doc-control\do

Дата модификации: 21.08.2006

Размер: 425.2 Кб

2 стр.
