RPT-75D

MEAN WELL
DC/DC преобразователи на шасси
развернуть ▼ свернуть ▲
Фотография серии RPT-75

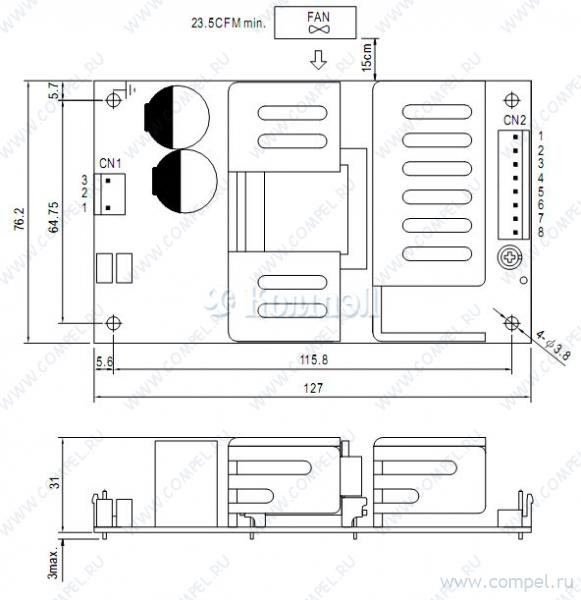

Чертеж серии RPT-75



Технические характеристики

показать свернуть
Серия
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 127×76×31 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Серия P вых Выход U1 I1 Стабилизация Вход Конструктив Возможности Защита Выходов Управление IP U вх AC U вх DC Коэф. мощн. U изол вх-вых U изол вх-земля U изол вых-земля Применение КПД Шум T раб Примечание Карточка
товара
A+ PT-65D (MW)

— в коробках 6 шт AC-DC сетевой преобразователь - P вых: 68 Вт; Выход: 5 В, 12 В, 24 В; U1: 4.75...5.5 В;... КЗ, перегрузка, перенапряжение —

Файлы 2

показать свернуть
72W Reliable Triple Output Medical Grade R P T- 7 5 series User’s Manual + EN 60601-1 IEC 60601-1 8 ANSI/AAMI ES60601-1 BS EN/EN60601-1 IEC60601-1 + TPTC004 ■ Features 5"×3" compact size Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 Suitable for BF application with appropriate system consideration 72W convection, 100W force air EMI class B for class Ⅰ configuration Extremely low leakage current Protections: Short circuit / Overload / Over voltage Lifetime > 140K hours 3 years warranty ■ Applications Oral irrigator Hemodialysis machine Medical computer monitors Sleep apnea devices Description RPT-75 is a 72W highly reliable PCB type medical power supply with a high power density on the 5” by 3” footprint. It accepts 90~264VAC input and offers triple output voltages . RPT-75 is able to be used for Class Ⅰ system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011.a Model Encoding RPT - 75 A Output voltage Rated wattage Series name File Name:RPT-75-SPEC 2021-09-15 PDF
Документация на RPT-75C

RPT-75-20210915.cdr

Дата модификации: 26.11.2021

Размер: 140.7 Кб

5 стр.

R P T- 7 5 75W Triple Output Medical Type series Features : Universal AC input / Full range Low leakage current<200uA Protections: Short circuit / Overload / Over voltage Free air convection for rated power and 23.5CFM forced air convection for peak load UL60601-1/IEC60601-1/EN60601-1 medical safety approved Fixed switching frequency at 65KHz 3 years warranty EN60601-1 IEC60601-1 SPECIFICATION OUTPUT INPUT CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 DC VOLTAGE 5V 12V -5V 5V 12V -12V 5V 15V -15V RATED CURRENT 6A 3A 0.5A 6A 3A 0.5A 6A 2.3A 0.5A CURRENT RANGE 0.6 ~ 8A 0.2 ~ 4A 0.1 ~ 1A 0.6 ~ 8A 0.2 ~ 4A 0.1 ~ 1A 0.6 ~ 8A 0.1 ~ 3A 0.1 ~ 1A RATED POWER 68.5W PEAK LOAD (23.5CFM) 93W 150mVp-p 150mVp-p 120mVp-p 80mVp-p 100W 120mVp-p 120mVp-p 80mVp-p 5.0% 2.0% 6.0% 5.0% 2.0% 8.0% 5.0% LINE REGULATION 0.5% 1.0% 1.0% 0.5% 1.0% 1.0% 0.5% 1.0% 1.0% LOAD REGULATION 1.5% 3.0% 1.0% 1.5% 3.0% 1.0% 1.5% 3.0% 1.0% SETUP, RISE TIME 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 100ms/230VAC VOLTAGE RANGE 90 ~ 264VAC FREQUENCY RANGE EFFICIENCY(Typ.) 47 ~ 63Hz 76% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.5A/115VAC 1A/230VAC COLD START 25A/115VAC 50A/230VAC WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 500ms, 30ms/115VAC at full load 20ms/115VAC at full load 127 ~ 370VDC 77% 77% Earth leakage current <200uA / 264VAC, Patient leakage current <100uA/264VAC 140 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover -20 ~ +70 (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 45 ) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60601-1,TUV EN60601-1 Approved I/P-O/P:4KVAC I/P-FG:1.5KVAC O/P-FG:1.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55011 (CISPR11), EN55022 (CISPR22) Class B Compliance to EN61000-3-2,-3 HARMONIC CURRENT Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN60601-1-2, EN61000-6-2, EN61204-3 heavy industry level, EN61204-3 Medical level, criteria A EMS IMMUNITY ISOLATION RESISTANCE MTBF NOTE 100W 120mVp-p CH1:4.75 ~ 5.5V VOLTAGE TOLERANCE Note.3 2.0% 6.0% OVER VOLTAGE OTHERS 72W VOLTAGE ADJ. RANGE OVERLOAD (Note 4) 72W RIPPLE & NOISE (max.) Note.2 80mVp-p PROTECTION EMC RPT-75C OUTPUT NUMBER LEAKAGE CURRENT SAFETY & RPT-75B RPT-75A MODEL DIMENSION PACKING 521.2K hrs min. MIL-HDBK-217F (25 127*76.2*31mm (L*W*H) 0.26Kg; 63pcs/17.4Kg/1.35CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. File Name:RPT-75-SPEC 2006-12-18 PDF
Документация на серию RPT-75

RPT-75.cdr

Дата модификации: 12.01.2007

Размер: 523.7 Кб

3 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
