RPTG-160C

MEAN WELL
AC/DC преобразователи открытого типа
развернуть ▼ свернуть ▲
Фотография серии RPT-160

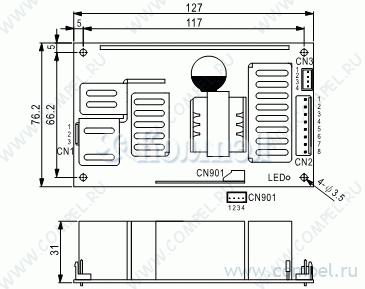

Чертеж серии RPT-160



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, перегрузка, перенапряжение, перегрев
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум
Размер 127×76.2×33 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
R P T- 1 6 0 145W Reliable Triple Output Medical Grade series User’s Manual (Standard) (Optional) EN 60601-1 IEC 60601-1 8 ANSI/AAMI ES60601-1 BS EN/EN60601-1 IEC60601-1 TPT004 (G model) (except -C type) ■ Features 5"×3" compact size Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN 60601-1 Suitable for BF application with appropriate system ■ Applications Oral irrigator Hemodialysis machine Medical monitors Sleep apnea devices Pumps machine consideration 100W convection, 145W force air EMI Class B for Class Ⅰ configuration No load power consumption<0.75W by PS-ON control (G model) Extremely low leakage current 5Vdc standby output, Power Good, Power Fail Protections: Short circuit / Overload / Over voltage / Over temperature Lifetime > 85K hours 3 years warranty ■ Description RPT(G)-160 is a 145W highly reliable PCB type medical power supply with a high power density on the 5” by 3” footprint. It accepts 90~264VAC input and offers triple output voltages. The extremely low leakage current is less than 160μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment. RPT(G)-160 series also offers the enclosed style model [RPT(G)-160-C]. ■ Model Encoding RPT G - 160 A -C Type Output voltage Rated wattage Green model, with 5Vsb and no load < 0.75W Series name Type Blank C PCB Type Enclosed casing type Description Note In Stock Optional File Name:RPT-160-SPEC 2021-12-15 PDF
Документация на RPTG-160D

RPT-160-20211215.cdr

Дата модификации: 15.12.2021

Размер: 281.2 Кб

7 стр.

R P T- 1 6 0 160W Triple Output Medical Type series Features : Universal AC input / Full range Built-in active PFC function Protections: Short circuit / Overload / Over voltage / Over temperature 5"x3" compact size Free air convection for 100W and 145W with 20.5 CFM forced air With power good and fail signal output No load power consumption under 0.75W by PS-ON control (G model) Standby 5V@0.8A with fan, @0.6A without fan (G model) 3 years warranty RPT G G: With 5Vsb & no load power consumption < 0.75 W Blank: Basic function (without 5Vsb) 160A EN60601-1 IEC60601-1 SPECIFICATION MODEL OUTPUT CH3 CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3 DC VOLTAGE 5V 12V -5V 5V 12V -12V 5V 15V -15V 5V 12V 24V RATED CURRENT (20.5CFM) 14A 5.5A 1A 14A 5A 1A 14A 3.6A 1A 11A 5A 1.2A CURRENT RANGE (convection) 0.6 ~ 9A 0.2 ~ 3.8A 0.1 ~ 0.6A 0.6 ~ 9A 98.4W 99W 98.2W RATED POWER (20.5CFM) Note.8 145W 146W 143W 147.8W CH1:5 ~ 5.5V 2.0% 5.0% -5,+7% 2.0% 5.0% -4,+5% 2.0% 4.0% +8.0% 2.0% 5.0% LINE REGULATION 0.5% 1.0% 1.0% 0.5% 1.0% 1.0% 0.5% 1.0% 1.0% 0.5% 1.0% 1.0% LOAD REGULATION 1.5% 3.0% -5,+6% 1.5% 3.0% -4,+5% 2.0% 3.0% 8.0% 1.5% 3.0% -3,+4% SETUP, RISE TIME 1200ms, 30ms/230VAC HOLD UP TIME (Typ.) 16ms/230VAC/115VAC at full load Note.6 90 ~ 264VAC +7,-5% 2500ms, 30ms/115VAC at full load 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR (Typ.) EFFICIENCY (Typ.) PF>0.93/230VAC 84% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) 1.8A/115VAC 0.9A/230VAC COLD START 35A/115VAC 70A/230VAC PF>0.98/115VAC at full load 84% 83% LEAKAGE CURRENT Earth leakage current <300uA / 264VAC, Patient leakage current <100uA/264VAC OVERLOAD 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed 83% CH1: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover 105 (TSW1)detect on heatsink of power transistor 90 (TSW2 )detect on heatsink of power transistor Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down Protection type : (TSW2)Shut down o/p voltage, re-power on to recover 5VSB : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; tolerance 2%, ripple : 50mVp-p(max.) 5V STANDBY (G model) PS-ON INPUT SIGNAL (G model) Power on: PS-ON = "Hi" or " > 2 ~ 5V" ; Power off: PS-ON = "Low" or " < 0 ~ 0.5V" PF>1ms POWER GOOD / POWER FAIL 500ms>PG>10ms -20 ~ +70 (Refer to output load derating curve) WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 20 ~ 90% RH non-condensing -40 ~ +85 , 10 ~ 95% RH 0.03%/ (0 ~ 50 ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes UL60601-1, TUV EN60601-1 approved I/P-O/P:4KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH EMI CONDUCTION & RADIATION Compliance to EN55011 (CISPR11), EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY MTBF NOTE 0.15 ~ 1.2A RIPPLE & NOISE (max.) Note.2 100mVp-p 120mVp-p 120mVp-p 100mVp-p 120mVp-p 120mVp-p 100mVp-p 150mVp-p 150mVp-p 100mVp-p 120mVp-p 200mVp-p OVER TEMPERATURE OTHERS 0.1 ~ 1A 0.2 ~ 2.6A 0.15 ~ 1A 0.6 ~ 14A 0.1 ~ 3.6A 0.1 ~ 1A 0.3 ~ 11A 0.2 ~ 5A 0.6 ~ 14A 0.2 ~ 5A PROTECTION (Note 4) 0.1 ~ 2.6A 0.1 ~ 0.8A 0.3 ~ 8A RATED POWER (convection) Note.7 98.6W OVER VOLTAGE EMC 0.2 ~ 3.4A 0.1 ~ 0.8A 0.6 ~ 9A CURRENT RANGE (20.5CFM) 0.6 ~ 14A 0.2 ~ 5.5A 0.1 ~ 1A VOLTAGE RANGE SAFETY & RPT -160D CH2 VOLTAGE TOLERANCE Note.3 FUNCTION RPT -160C CH1 VOLTAGE ADJ. RANGE INPUT RPT -160B RPT -160A OUTPUT NUMBER DIMENSION PACKING Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A 191.4Khrs min. MIL-HDBK-217F (25 127*76.2*34.6mm (L*W*H) 0.33Kg; 36pcs/12.9Kg/0.79CUFT ) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. HS1,HS2 & HS3 can not be shorted. 6. Derating may be needed under low input voltages. Please check the derating curve for more details. 7. The rated power includes 5Vsb @ 0.6A. 8. The rated power includes 5Vsb @ 0.8A. PDF
Документация на серию RPT-160

RPT,RPTG-160.cdr

Дата модификации: 03.06.2009

Размер: 383.6 Кб

2 стр.
