SCP-35-12

AC/DC преобразователь корпусированный
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Выходная мощность (ном)
Выход
Напряжение 1 канала
Выходной ток 1 канала
Тип стабилизации
Вход
Конструктивное исполнение
Возможности
Типы защиты КЗ, переполюсовка, перенапряжение, перегрузка
Количество выходов
Тип управления выходом
Исполнение
Входное напряжение AC
Входное напряжение DC
Коэффициент мощности
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Применение
КПД
Шум

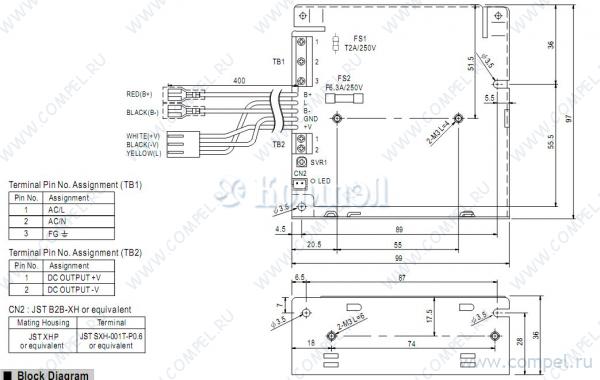

Размер 97×99×36 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
SCP-35 35W Single Output Switching Power Supply series ■ Features : Universal AC input/Full range Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse) Built-in temperature compensation function Output voltage detection signal Cooling by free air convection LED indicator for power on No load power consumption <0.75W Suitable for installation in metallic or non-metallic system enclosure 100% full load burn-in test 2 years warranty SPECIFICATION UL62368-1 MODEL SCP-35-12 SCP-35-24 DC VOLTAGE 13.8V 27.6V RATED CURRENT 2.6A 1.4A CURRENT RANGE 0 ~ 2.6A 0 ~ 1.4A PEAK 5S Note.6 3.1A RATED POWER OUTPUT INPUT FUNCTION 200mVp-p VOLTAGE ADJ. RANGE +15,-5% VOLTAGE TOLERANCE Note.3 ±2.0% +15,-5% ±1.0% LINE REGULATION Note.4 ±1.0% ±1.0% LOAD REGULATION Note.5 ±2.0% 500ms, 30ms/230VAC HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 83% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENT 0.75A/115VAC OTHERS 16ms/115VAC at full load 120 ~ 370VDC 86% 0.5 A/230VAC COLD START 45A <2mA / 240VAC By NTC (not provide with the power supply) L=output voltage +0.2 ~ 0.7V(AC OK); L=0V(AC Fail) OVERLOAD OVER VOLTAGE 16.6 ~ 19.3V Protection type : Shut down o/p voltage, re-power on to recover EMC EMISSION 33.1 ~ 38.5V -20 ~ +60℃ (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85℃, 10 ~ 95% RH ±0.05% /℃ (0 ~ 45℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CB(IEC62368-1), EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,3, EAC TP TC 020 EMC IMMUNITY Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/ENV50204, BS EN/EN55024, BS EN/EN61000-6-1, light industry level, criteria A, EAC TP TC 020 MTBF 523.3Khrs min. DIMENSION 99*97*36mm (L*W*H) 0.37Kg; 45pcs/17.7Kg/1.04CUFT PACKING NOTE 1200ms, 30ms/115VAC at full load 1.7 ~ 2.3A rated output power 3.1 ~ 4.2A rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE (Note 6) ±1.0% SETUP, RISE TIME WORKING TEMP. EMC 38.6W RIPPLE & NOISE (max.) Note.2 120mVp-p PROTECTION IEC62368-1 1.7A 35.9W TEMP. COMPENSATION OUTPUT VOLTAGE SENSOR TPTC004 MIL-HDBK-217F (25℃) 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. 33% Duty cycle maximum within every 15 seconds. Average output power should not exceed the rated power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). (As available on http://www.meanwell.com) ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:SCP-35-SPEC 2021-07-05 PDF
Документация на SCP-35-24

SCP-35-20210705.cdr

Дата модификации: 17.08.2021

Размер: 100.3 Кб

3 стр.

SCP-35 35W Single Output Switching Power Supply series Features : Universal AC input/Full range Protections: Short circuit / Overload / Over voltage / Battery polarity protections (by fuse) Cooling by free air convection LED indicator for power on No load power consumption <0.75W 100% full load burn-in test 2 years warranty SPECIFICATION MODEL SCP-35-12 SCP-35-24 DC VOLTAGE 13.8V 27.6V RATED CURRENT 2.6A 1.4A CURRENT RANGE 0 ~ 2.6A 0 ~ 1.4A PEAK 5S INPUT FUNCTION RIPPLE & NOISE (max.) Note.2 120mVp-p 200mVp-p VOLTAGE ADJ. RANGE +15,-5% 1.0% +15,-5% VOLTAGE TOLERANCE Note.3 2.0% LINE REGULATION Note.4 1.0% LOAD REGULATION Note.5 2.0% OTHERS HOLD UP TIME (Typ.) 50ms/230VAC VOLTAGE RANGE 85 ~ 264VAC FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 83% AC CURRENT (Typ.) INRUSH CURRENT (Typ.) LEAKAGE CURRENT 0.75A/115VAC TEMP. COMPENSATION OUTPUT VOLTAGE SENSOR 1200ms, 30ms/115VAC at full load 16ms/115VAC at full load 120 ~ 370VDC 86% 0.5 A/230VAC COLD START 45A <2mA / 240VAC By NTC (not provide with the power supply) L=output voltage +0.7 -0 V OVERLOAD 1.7 ~ 2.3A rated output power 3.1 ~ 4.2A rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed OVER VOLTAGE 16.6 ~ 19.3V Protection type : Shut down o/p voltage, re-power on to recover WORKING TEMP. -20 ~ +60 33.1 ~ 38.5V (Refer to output load derating curve) 20 ~ 90% RH non-condensing -40 ~ +85 0.03%/ , 10 ~ 95% RH (0 ~ 45 ) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1, CB(IEC60950-1),CCC GB4943 approved I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 / 70% RH EMS IMMUNITY MTBF Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A 523.3Khrs min. MIL-HDBK-217F (25 ) DIMENSION 99*97*36mm (L*W*H) 0.37Kg; 45pcs/17.7Kg/1CUFT PACKING NOTE 1.0% 500ms, 30ms/230VAC WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE SAFETY & ISOLATION RESISTANCE (Note 6) 1.0% SETUP, RISE TIME PROTECTION EMC 38.6W 35.9W RATED POWER OUTPUT 1.7A Note.6 3.1A 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. 33% Duty cycle maximum within every 15 seconds. Average output power should not exceed the rated power. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name:SCP-35-SPEC 2010-02-03 PDF
Документация на серию SCP-35

SCP-35.cdr

Дата модификации: 07.05.2010

Размер: 388.8 Кб

3 стр.
