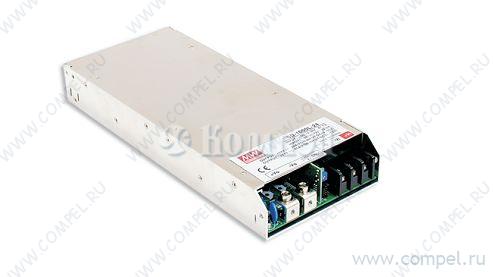

SD-500H-12

DC/DC преобразователи на шасси
развернуть ▼ свернуть ▲



Технические характеристики

показать свернуть
Монтаж
Выходная мощность
Количество каналов
Входное напряжение
Параметры выходов
Возможности подстройка выхода, вентилятор, компенсация на проводах, Power Good
Комплекс защит короткого замыкания, перегрузки, перенапряжения, перегрева
Номинальное входное напряжение
Напряжение 1 выхода
Ток 1 выхода
Уровень пульсаций
КПД
Схема параллельного включения
Напряжение изоляции вход-выход
Напряжение изоляции вход-земля
Напряжение изоляции выход-земля
Сертификаты медицинские
Размер 215×115×50 мм
Рабочая температура
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 4

показать свернуть
Тип Наименование Корпус Упаковка i Монтаж P вых Каналов U вх Выход Возможности Защита U вх ном. U1 U2 U3 I1 I2 I3 Шум КПД Паралл. сх. Uиз. вх-вых Uиз. вх-общ Uиз. вых-общ Uиз. вых-вых Серт. медиц. T раб Примечания Карточка
товара
A- RSD-500D-12 (MW) 10 шт КЗ, перегрузка, перенапряжения, перегрев, от пониженного входного напряжения, обратной полярности
A- RSD-500C-12 (MW) в коробках 5 шт КЗ, перегрузка, перенапряжения, перегрев, от пониженного входного напряжения, обратной полярности
A- SD-1000L-12 (MW) в коробках 6 шт DC-DC модульный преобразователь - Монтаж: в кожухе; P вых: 1 кВт; #: 1; U вх: 19...72 В... подстройка выхода, вентилятор, компенсация на проводах, Power Good короткого замыкания, перегрузки, перенапряжения, перегрева
A- SD-500L-12 (MW) 1 шт DC-DC модульный преобразователь - Монтаж: в кожухе; P вых: 500 Вт; #: 1; U вх: 19...72 ... подстройка выхода, вентилятор, компенсация на проводах, Power Good короткого замыкания, перегрузки, перенапряжения, перегрева

Файлы 2

показать свернуть
SD-500 500W Single Output DC-DC Converter ■ Features : series User’s Manual DC input active surge current limiting Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC) Protections: Short circuit / Overload / Over voltage / Over temperature / Input polarity(by fuse) 2000VAC I/O Isolation Forced air cooling by built-in DC fan with fan speed control function Output OK Signal Built-in remote ON-OFF control Built-in remote sense function 3 years warranty Bauar t gepruft Sicherheit egel ma ge od o s be wac g www. tuv.com ID 2000000000 SPECIFICATION AS/NZS62368-1 BS EN/EN62368-1 TPTC004 IEC62368-1 MODEL OUTPUT SD-500L-12 SD-500L-24 SD-500L-48 SD-500H-12 SD-500H-24 SD-500H-48 DC VOLTAGE 12V 24V 48V 12V 24V 48V RATED CURRENT 40A 21A 10.5A 40A 21A 10.5A CURRENT RANGE 0 ~ 40A 0 ~ 21A 0 ~ 10.5A 0 ~ 40A 0 ~ 21A 0 ~ 10.5A RATED POWER 480W 504W 504W 480W 504W 504W RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p VOLTAGE ADJ. RANGE 23 ~ 30V 46 ~ 60V 11 ~ 15V 23 ~ 30V 46 ~ 60V VOLTAGE TOLERANCE Note.3 ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% LOAD REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% SETUP, RISE TIME 500ms, 50ms at full load 89% 87% 89% 90% VOLTAGE RANGE INPUT 11 ~ 15V Note.5 19 ~ 72VDC EFFICIENCY (Typ.) DC CURRENT (Typ.) CURRENT (AT NO LOAD) INRUSH CURRENT (Typ.) OVERLOAD 72 ~ 144VDC 86% 24.2A/19VDC 88% 24.8A/24VDC 12A/48VDC 8A/72VDC Max. 0.2A/48VDC Max. 0.1A/96VDC 60A/48VDC 60A/96VDC 105 ~ 125% rated output power Protection type : Constant current limiting, shut down o/p voltage after about 5 sec., re-power on to recover PROTECTION 16 ~ 19V 30.8 ~ 35.2V 62 ~ 68V 16 ~ 19V OVER VOLTAGE Protection type : Shut down o/p voltage, re-power on to recover Shut down o/p voltage, recovers automatically after temperature goes down OVER TEMPERATURE REMOTE ON/OFF CONTROL Please refer to function manual FUNCTION Open collector signal low when PSU turns on, max. sink current :10mA OUTPUT OK SIGNAL WORKING TEMP. 6A/96VDC 30.8 ~ 35.2V -20 ~ +60℃ (Refer to "Derating Curve") WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY 20 ~ 90% RH non-condensing TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC (Note 4) EMC EMISSION ±0.02%/℃ (0 ~ 50℃) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes IEC62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved, design refer to AS/NZS 62368.1 EMC IMMUNITY MTBF OTHERS DIMENSION PACKING NOTE 62 ~ 68V -40 ~ +85℃, 10 ~ 95% RH I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 196.3K hrs min. MIL-HDBK-217F (25℃) 215*115*50mm (L*W*H) 1.15Kg; 12pcs/14.8Kg/0.9CUFT 1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx File Name:SD-500-SPEC 2021-09-15 PDF
Документация на SD-500L-48

SD-500-20210915.cdr

Дата модификации: 15.09.2021

Размер: 125.8 Кб

4 стр.

SD-500 500W Single Output DC-DC Converter series Features : DC input active surge current limiting Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC) Protections: Short circuit / Overload / Over voltage / Over temperature / Input polarity(by fuse) 2000VAC I/O Isolation Forced air cooling by built-in DC fan with fan speed control function Output OK Signal Built-in remote ON-OFF control Built-in remote sense function 3 years warranty SPECIFICATION MODEL OUTPUT SD-500L-12 SD-500L-24 SD-500L-48 SD-500H-12 SD-500H-24 SD-500H-48 DC VOLTAGE 12V 24V 48V 12V 24V 48V RATED CURRENT 40A 21A 10.5A 40A 21A 10.5A CURRENT RANGE 0 ~ 40A 0 ~ 21A 0 ~ 10.5A 0 ~ 40A 0 ~ 21A 0 ~ 10.5A RATED POWER 480W 504W 504W 480W 504W 504W RIPPLE & NOISE (max.) Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 11 ~ 15V 23 ~ 30V 46 ~ 60V 11 ~ 15V 23 ~ 30V 46 ~ 60V VOLTAGE TOLERANCE Note.3 1.0% 1.0% 1.0% 1.0% 1.0% 1.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% VOLTAGE ADJ. RANGE 500ms, 50ms at full load SETUP, RISE TIME VOLTAGE RANGE INPUT 72 ~ 144VDC Note.5 19 ~ 72VDC EFFICIENCY (Typ.) DC CURRENT (Typ.) CURRENT (AT NO LOAD) INRUSH CURRENT (Typ.) 86% 88% 24.2A/19VDC 24.8A/24VDC 89% 12A/48VDC 89% 87% 8A/72VDC 90% 6A/96VDC Max. 0.2A/48VDC Max. 0.1A/96VDC 60A/48VDC 60A/96VDC 105 ~ 125% rated output power OVERLOAD PROTECTION OVER VOLTAGE Protection type : Constant current limiting, shut down o/p voltage after about 5 sec., re-power on to recover 30.8 ~ 35.2V 62 ~ 68V 16 ~ 19V Protection type : Shut down o/p voltage, re-power on to recover 80 5 (TSW1 ) detect on heatsink of power transistor 16 ~ 19V 30.8 ~ 35.2V 62 ~ 68V 80 5 (L-48V,H-24V,H-48V), 85 5 (L-24V), 90 5 (L-12V), 95 5 (H-12V) (TSW2 : detect on heatsink of o/p diode) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down REMOTE ON/OFF CONTROL Please refer to function manual FUNCTION Open collector signal low when PSU turns on, max. sink current :10mA OUTPUT OK SIGNAL OVER TEMPERATURE WORKING TEMP. -20 ~ +60 (Refer to output load derating curve) WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY 20 ~ 90% RH non-condensing TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS SAFETY & WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC 0.02%/ (0 ~ 50 ) 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes IEC60950-1 CB approved by TUV (Note 4) OTHERS , 10 ~ 95% RH I/P-O/P:2KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 25 70%RH EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B EMS IMMUNITY Compliance to EN61000-4-2,3,4,6,8; ENV50204, light industry level, criteria A MTBF 196.3K hrs min. MIL-HDBK-217F (25 ) DIMENSION PACKING NOTE -40 ~ +85 215*115*50mm (L*W*H) 1.15Kg; 12pcs/14.8Kg/0.92CUFT 1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Derating may be needed under low input voltages. Please check the derating curve for more details. File Name:SD-500-SPEC 2008-04-28 PDF
Документация на серию SD-500

SD-500.cdr

Дата модификации: 20.06.2008

Размер: 145 Кб

4 стр.
