YP-350A-AA

MEAN WELL
AC/DC преобразователь корпусированный
развернуть ▼ свернуть ▲

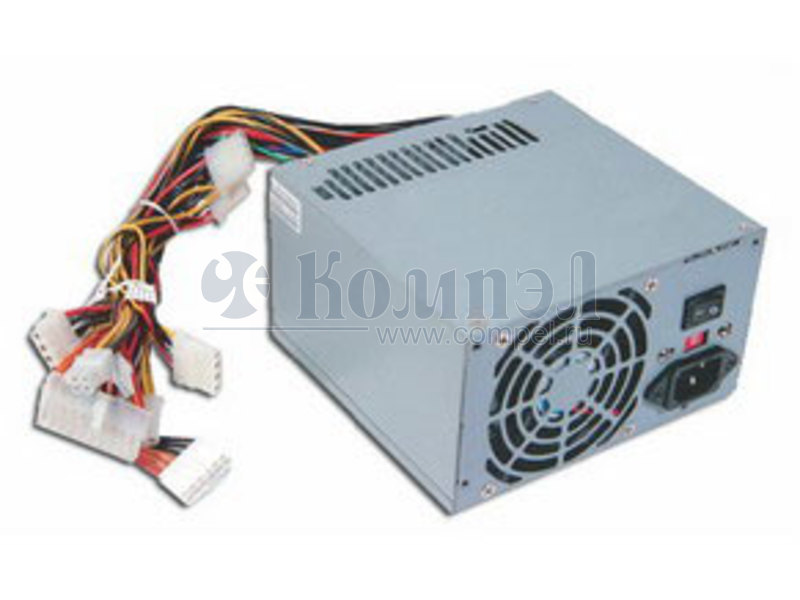

Внешний вид YP-350A-AA
  • Корпус: —
  • Норма упаковки: 1  шт. (в коробках)
  • снято с производства

Файлы 1

показать свернуть
YP-350A-AA 250W ATX 12V PC Power Supply Features : AC input range selected by switch With +5VSB:0 ~ 2.0A max. Power good signal output Power fail signal output Power ON-OFF switch High efficiency Approvals: TUV / CSA / CB / CE / FCC Forced air cooling by built-in DC fan 100% full load burn-in test 1 year warranty R SUD SPECIFICATION ORDER NO. OUTPUT YP-350A-AA SAFETY MODEL NO. YP-350-A CHANNEL CH1 CH2 CH3 CH4 CH5 CH6 STANDBY DC VOLTAGE 3.3V 5V 12V1 12V2 -5V -12V 5VSB MINIMUM CURRENT 2A 2A 1A 1A 0.1A 0.1A 0A NORMAL CURRENT 12A 12A 5A 9A 0.3A 0.8A 2.0A MAXIMUM CURRENT 17A 18A 8A 14A 0.3A 0.8A 2.0A 120mVp-p 120mVp-p 50mVp-p 120mVp-p 50mVp-p +5V, +3.3V 115W max. COMBINE LOAD +5V, +3.3V, +12V 230W max. 250W RATED POWER (max.) RIPPLE & NOISE (max.) Note.2 50mVp-p LINE REGULATION LOAD REGULATION INPUT Note.3 1.0% 1.0% 1.0% 2.0% 2.0% 1.0% 5.0% 5.0% 5.0% 5.0% 10% 10% 5.0% HOLD UP TIME 8ms min. at full load VOLTAGE RANGE 103 ~ 132VAC / 206 ~ 264VAC selected by switch FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 70% AC CURRENT INRUSH CURRENT (max.) 6.0A / 115VAC LEAKAGE CURRENT(max.) OVER LOAD PROTECTION OVER VOLTAGE SHORT CIRCUIT FUNCTION 50mVp-p 1.0% POWER GOOD SIGNAL POWER FAIL SIGNAL PS-ON INPUT SIGNAL WORKING TEMP. WORKING HUMIDITY ENVIRONMENT STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE 40A / 115VAC 3.5mA / 240VAC 3.0A / 230VAC 80A / 230VAC 105 ~ 150% rated output power Protection type : Shut down o/p voltage, re-power on to recover +3.3V, +5V, +12V 1, +12V 2 : 110%~130% of rated voltage Protection type : Shut down o/p voltage, re-power on to recover All output equipped with short circuit Protection type : Shut down o/p voltage, re-power on to recover The TTL compatible signal out with 100ms to 500ms delay after power set up The TTL compatible signal will go down at least 1ms before +5V below 4.75V Power on: PS-ON = "Low" or "<0.8V" ; Power off: PS-ON = "Hi" or ">2V" -10 ~ +35 20 ~ 90% RH non-condensing -20 ~ +85 , 10 ~ 95% RH 0.05% / (0 ~ 50 ) 10 ~ 200Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes CSA(C22.2 60950, UL60950),TUV EN60950 Approved I/P-O/P, I/P-FG:1.5KVAC SAFETY & ISOLATION RESISTANCE I/P-O/P, I/P-FG:50M Ohms / 500VDC EMC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) class B, FCC part 15 class B (Note 4) Compliance to EN61000-3-2,-3 HARMONIC CURRENT Compliance to EN61000-4-2,3,4, 5,6,8,11, Light industry level, criteria A EMS IMMUNITY MTBF CONNECTOR OTHERS COOLING DIMENSION PACKING NOTE 100K hrs min. MIL-HDBK-217F (25 ) ATX main power connector * 1ea; +12V power connector * 1ea; Serial ATA connector * 1ea Peripheral power connector * 5 ea; Floppy drive power connector * 2 ea Forced air ventilation by 8cm DC fan 150*140*86mm (L*W*H) 1.1kg ; 12pcs / 16kg / CARTON 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Load regulation is measured from 20% to 100% max. Load. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. File Name: YP-350A-AA-SPEC 2006-04-13 PDF
Документация YP-350A-AA

\\Fileserver-s\doc-control\do

Дата модификации: 27.07.2006

Размер: 456.2 Кб

2 стр.
