N717-EA-01-S1

Neoway
NEOWAY N717-EA Ideal solution for IoT Applications LTE Cat 1 module optimized for M2M and IoT applications ● AT Standard version with cellular network connection and 2G backward. ● B31 Band Support for Smart Meter or Industrial Market ● Chipset ASR 1603s Operating temperature -40°C to +85°C, industrial grade Various protocols TCP/IP/UDP IoT protocols N715-EA is Neoway 2nd-Generation LTE Cat...
развернуть ▼ свернуть ▲

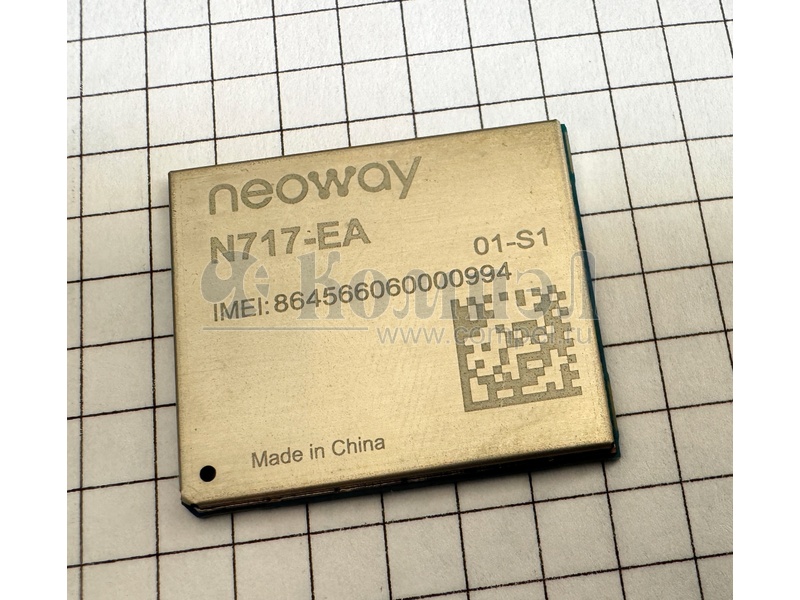

Внешний вид серии N717

Технические характеристики

показать свернуть
Конструктивное исполнение
Стандарты передачи данных
  Особенности: FDD-LTE: B1, B3, B5, B7, B8, B20, B28, B31; TDD-LTE: B38, B40, B41; GSM: 900/1800 MHz
Системный разъём
Антенный разъём
Напряжение питания
Размер 29×25×2.35 мм
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
NEOWAY N717-EA Ideal solution for IoT Applications LTE Cat 1 module optimized for M2M and IoT applications ● AT Standard version with cellular network connection and 2G backward. ● B31 Band Support for Smart Meter or Industrial Market ● Chipset ASR 1603s Operating temperature -40°C to +85°C, industrial grade Various protocols TCP/IP/UDP IoT protocols N715-EA is Neoway 2nd-Generation LTE Cat.1 module that specifically support Band31 connection and 2G network. Which would be much suitable for the smart meter and Industrial market. It Adopts the 3GPP Rel.13 LTE technology, which could deliver 10Mbps downlink and 5Mbps uplink data rates. This module has an excellent RF performance. It supports low power consumption and ultra wide operating temperature range. N717-EA supports various network protocols and provides industrial grade interfaces. N717-EA is an optimal option for energy metering, telematics, industrial router, industrial PAD, video surveillance, environmental monitoring, etc. The N717-EA can be used in regions including European country where LTE networks are deployed. Compact package LGA package 29 mm × 25 mm × 2.35 mm Technical support Reference designs, evaluation kits Timely support via emails, calls, and IM Field support PDF
Документация на серию N717

Дата модификации: 08.12.2024

Размер: 638.4 Кб

2 стр.

NEOWAY N717-EA Ideal solution for IoT Applications LTE Cat 1 module optimized for M2M and IoT applications ● AT Standard version with cellular network connection and 2G backward. ● B31 Band Support for Smart Meter or Industrial Market ● Chipset ASR 1603s Operating temperature -40°C to +85°C, industrial grade Various protocols TCP/IP/UDP IoT protocols N715-EA is Neoway 2nd-Generation LTE Cat.1 module that specifically support Band31 connection and 2G network. Which would be much suitable for the smart meter and Industrial market. It Adopts the 3GPP Rel.13 LTE technology, which could deliver 10Mbps downlink and 5Mbps uplink data rates. This module has an excellent RF performance. It supports low power consumption and ultra wide operating temperature range. N717-EA supports various network protocols and provides industrial grade interfaces. N717-EA is an optimal option for energy metering, telematics, industrial router, industrial PAD, video surveillance, environmental monitoring, etc. The N717-EA can be used in regions including European country where LTE networks are deployed. Compact package LGA package 29 mm × 25 mm × 2.35 mm Technical support Reference designs, evaluation kits Timely support via emails, calls, and IM Field support PDF
Документация на серию N717

Дата модификации: 21.12.2023

Размер: 638.4 Кб

2 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
