NSI8260W0-DSWR

Novosense
NSI826x High Reliability Reinforced Six-Channel Digital Isolators Datasheet (EN) 1.3 Product Overview Safety Regulatory Approvals The NSi826x devices are high reliability six-channel digital isolators. The NSi826x device is safety certified by UL1577 support several insulation withstand voltage(3kV,5kV), while providing high electromagnetic immunity and low emissions at low power consumption....
развернуть ▼ свернуть ▲


Технические характеристики

показать свернуть
Напряжение изоляции RMS
Кол-во передатчиков
Кол-во приемников
Скорость передачи данных
Максимальная задержка сигнала
Диапазон напряжений питания
Примечание
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 3

показать свернуть
Тип Наименование Корпус Упаковка i Изоляция TX RX Скорость Задержка U пит Примечание T раб Карточка
товара
P= CA-IS3760LW (CHIPANLG)

SO-16 SOIC16 в ленте 1000 шт — — — —

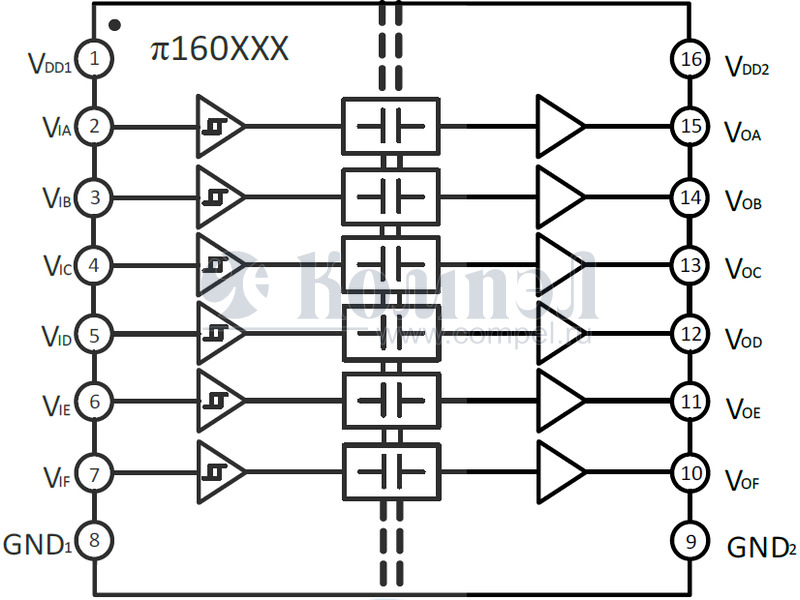

F~ Pai160E60 (2PAI)

SO-16 SOIC16 300 шт

 Capacitive isolation 6 General-purpose WBSOIC-16 Digital Isolators ROHS
F~ Pai160M60 (2PAI)

SO-16 SOIC16 300 шт Capacitive isolation 6 General-purpose WBSOIC-16 Digital Isolators ROHS

Файлы 1

показать свернуть
NSI826x High Reliability Reinforced Six-Channel Digital Isolators Datasheet (EN) 1.3 Product Overview Safety Regulatory Approvals The NSi826x devices are high reliability six-channel digital isolators. The NSi826x device is safety certified by UL1577 support several insulation withstand voltage(3kV,5kV), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi826x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 200kV/us. The NSi826x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi826x device supports to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use.  UL recognition: up to 5000Vrms for 1 minute per UL1577 Key Features  Up to 5000Vrms Insulation voltage  Date rate: DC to 150Mbps  CQC certification per GB4943.1-2011  CSA component notice 5A  DIN VDE V 0884-11:2017-01 Applications  Industrial automation system  Isolated SPI, RS232, RS485  General-purpose multichannel isolation Device Information Part Number NSI826x-DSWR Package SOP16(300mil） SSOP16 NSI826x-DSSR Body Size 10.30mm × 7.50mm 4.90mm × 3.90mm  Power supply voltage: 2.5V to 5.5V  High CMTI: 200kV/us Functional Block Diagrams  Chip level ESD: HBM: ±8kV VDD1 1  High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity  Default output high level or low level option 16 VDD2 VDD1 1 16 VDD2 INA 2 15 OUTA INA 2 15 OUTA INB 3 14 OUTB INB 3 14 OUTB INC 4 13 OUTC INC 4 13 OUTC IND 5 12 OUTD IND 5 12 OUTD INE 6 11 OUTE INE 6 INF 7 10 OUTF OUTF 11 OUTE 10 INF 7 GND2 GND1 8 VDD1 1 16 VDD2 VDD1 1 16 VDD2  Low propagation delay: <15ns INA 2 15 OUTA INA 2 15 OUTA INB 3 14 OUTB INB 3 14 OUTB  Operation temperature: -55℃~125℃ INC 4 13 OUTC INC 4 13 OUTC IND 5 12 OUTD OUTD 5 OUTE 6 11 INE OUTE 6 11 INE OUTF 10 INF OUTF 10 INF  Isolation barrier life: >60 years  Low power consumption: 1.5mA/ch (1 Mbps)  RoHS-compliant packages: SOP16(300mil) SSOP16 Copyright © 2021, NOVOSENSE GND1 8 7 GND1 8 NSI8260 9 NSI8262 9 GND2 NSI8261 9 12 IND 7 GND1 8 GND2 NSI8263 9 GND2 Figure 1. NSi826x Block Diagram Page 1 PDF
Документация на NSI8260S0-DSSR

Дата модификации: 17.05.2022

Размер: 1.54 Мб

30 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
