D2F-01FL-A

Omron
Ultra Subminiature Basic Switch D2F Ultra Subminiature Snap Action Switch • Switches 3 A loads (general-purpose), 1 A loads (low force general-purpose) and 0.1 A loads(microvoltage/ microcurrent) • Long life span assured by high-precision dual spring reverse-action mechanism • Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom • Ideal for...
развернуть ▼ свернуть ▲

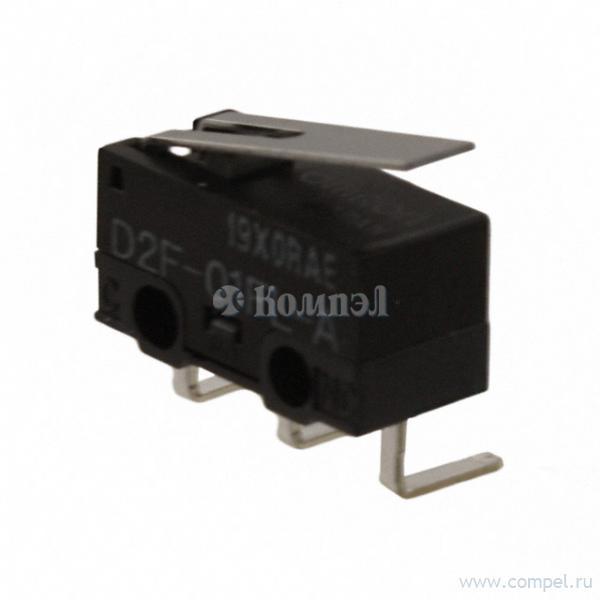

Изображение D2F-01FL-A
  • Корпус: —

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Карточка
товара
P= D2F01FLA (OMRON)

— на поддоне 450 шт

Файлы 1

показать свернуть
Ultra Subminiature Basic Switch D2F Ultra Subminiature Snap Action Switch • Switches 3 A loads (general-purpose), 1 A loads (low force general-purpose) and 0.1 A loads(microvoltage/ microcurrent) • Long life span assured by high-precision dual spring reverse-action mechanism • Flux penetration prevented by using an insert terminal and allowing a height difference at the case bottom • Ideal for a wide range of applications including appliances, office equipment, audio and communications equipment • RoHS Compliant Ordering Information Actuator Contact type Model Contact Model OF Terminal type 75 g 150 g 75 g 150 g 25 g 80 g 25 g 80 g 40 g 80 g 40 g 80 g PCB D2F-01F D2F-01 D2F-F D2F D2F-01FL D2F-01L D2F-FL D2F-L D2F-01FL3 D2F-01L3 D2F-FL3 D2F-L3 Selfsupporting D2F-01F-T D2F-01-T D2F-F-T D2F-T D2F-01FL-T D2F-01L-T D2F-FL-T D2F-L-T D2F-01FL3-T D2F-01L3-T D2F-FL3-T D2F-L3-T Solder D2F-01F-D3 D2F-01-D3 D2F-F-D3 D2F-D3 D2F-01FL-D3 D2F-01L-D3 D2F-FL-D3 D2F-L-D3 D2F-01FL3-D3 D2F-01L3-D3 D2F-FL3-D3 D2F-L3-D3 Compact Solder D2F-01F-D D2F-01-D D2F-F-D D2F-D D2F-01FL-D D2F-01L-D D2F-FL-D D2F-L-D D2F-01FL3-D D2F-01L3-D D2F-FL3-D D2F-L3-D Right-angle D2F-01F-A D2F-01-A D2F-F-A D2F-A D2F-01FL-A D2F-01L-A D2F-FL-A D2F-L-A D2F-01FL3-A D2F-01L3-A D2F-FL3-A D2F-L3-A Left-angle D2F-01F-A1 D2F-01-A1 D2F-F-A1 D2F-A1 D2F-01FL-A1 D2F-01L-A1 D2F-FL-A1 D2F-L-A1 D2F-01FL3-A1 D2F-01L3-A1 D2F-FL3-A1 D2F-L3-A1 Microvoltage/ Low force current Standard GeneralLow force purpose Standard 31 g 55 g 31 g 55 g D2F-01FL30 D2F-01L30 D2F-FL30 D2F-L30 D2F-01FL30-T D2F-01L30-T D2F-FL30-T D2F-L30-T D2F-01FL30-D3 D2F-01L30-D3 D2F-FL30-D3 D2F-L30-D3 D2F-01FL30-D D2F-01L30-D D2F-FL30-D D2F-L30-D D2F-01FL30-A D2F-01L30-A D2F-FL30-A D2F-L30-A D2F-01FL30-A1 D2F-01L30-A1 D2F-FL30-A1 D2F-L30-A1 Roller lever Microvoltage/ Low force current Standard GeneralLow force purpose Standard 40 g 80 g 40 g 80 g D2F-01FL2 D2F-01L2 D2F-FL2 D2F-L2 D2F-01FL2-T D2F-01L2-T D2F-FL2-T D2F-L2-T D2F-01FL2-D3 D2F-01L2-D3 D2F-FL2-D3 D2F-L2-D3 D2F-01FL2-D D2F-01L2-D D2F-FL2-D D2F-L2-D D2F-01FL2-A D2F-01L2-A D2F-FL2-A D2F-L2-A D2F-01FL2-A1 D2F-01L2-A1 D2F-FL2-A1 D2F-L2-A1 Pin plunger Microvoltage/ Low force current Standard GeneralLow force purpose Standard Hinge lever Microvoltage/ Low force current Standard GeneralLow force purpose Standard Simulated Microvoltage/ Low force roller lever current Standard (R1.3) GeneralLow force purpose Standard Simulated roller lever (R2.5) Model Number Legend D2F1 2 3 4 1. 2. Ratings None: General loads 01: Micro loads (0.1 A at 30 VDC) 3. Actuator 4. None: Pin plunger L: Hinge lever L2: Hinge roller lever L3: Simulated roller lever (R1.3) L30: Simulated roller lever (R2.5) Maximum Operating Force None: 1.47 N {150 gf} F: 0.74 N {75 gf} Note: These OF values are for the pin plunger models. Terminals None: PCB terminals/straight terminals -T: Self-clinching PCB terminals -A: Right-angled PCB terminals -A1: Left-angled PCB terminals -D3: Solder terminals -D: Compact solder terminals Ultra Subminiature Basic Switch D2F 1 PDF
