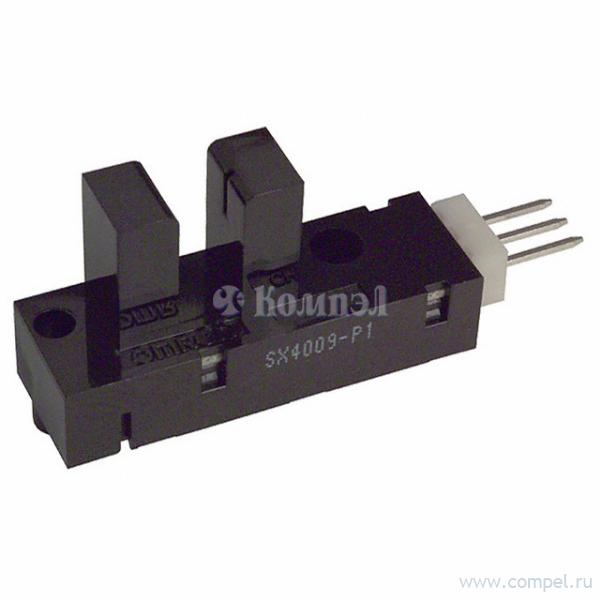

EE-SX4009-P1

Omron
Датчик положения оптический - Режим: просвет; Выход: логический, отрытый коллектор; Расстояние: 5 мм; Монтаж: на шасси; I cc: 30 мА; U cc: 10 В
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Режим работы
Тип выхода
Рабочее расстояние
Способ монтажа
Ток потребления (ном)
Рабочее напряжение (ном)
Примечания
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 1

показать свернуть
Тип Наименование Корпус Упаковка i Режим Выход Расстояние Особенности Монтаж Ток излучателя U out I out I cc U cc Корпус Кабель Индикация Спектр Регулировка Разъем T раб Примечания Карточка
товара
P= EESX4009P1 (OMRON)

100 шт


Файлы 1

показать свернуть
Photomicrosensor (Transmissive) EE-SX3009-P1/-SX4009-P1 ■ Dimensions ■ Features Note: All units are in millimeters unless otherwise indicated. • • • • • • 34 171825-3 (Tyco Electronics AMP) 23±0.2 ■ Absolute Maximum Ratings (Ta = 25°C) 4.2±0.2 dia. hole 3±0.1 dia, depth: 2 Two, R1 0.5 (Aperture width) Item Optical axis 10.5 7.5 4 0 −0.1 dia. V Name Rated value VCC 10 V Output voltage VOUT 28 V Output current IOUT 16 mA Permissible output dissipation POUT 250 mW (see note) Ambient temperature Operating Topr –25°C to 75°C Storage Tstg –40°C to 85°C Tsol --- Note: Refer to the temperature rating chart if the ambient temperature exceeds 25°C. O G Symbol Power supply voltage Soldering temperature Internal Circuit Terminal No. Screw-mounting model. High resolution with a 0.5-mm-wide sensing aperture. With a 5-mm-wide groove. Photo IC output signals directly connect with C-MOS and TTL. Connects to Tyco Electronics AMP’s EI-series connectors. RoHS Compliant. Unless otherwise specified, the tolerances are as shown below. Dimensions ■ Ordering Information Tolerance V Power supply (Vcc) 4 mm max. ±0.2 O G Output (OUT) Ground (GND) 4 < mm ≤ 16 ±0.3 16 < mm ≤ 63 ±0.5 Description Photomicrosensor (transmissive) Model Dark ON EE-SX3009-P1 Light ON EE-SX4009-P1 Recommended Mating Connectors: Tyco Electronics AMP 171822-3 (crimp connector) 172142-3 (crimp connector) OMRON EE-1005 (with harness) ■ Electrical and Optical Characteristics (Ta = 25°C, VCC = 5 V ±10%) Item Symbol Value Condition Current consumption ICC 30 mA max. With and without incident Low-level output voltage VOL 0.3 V max. IOUT = 16 mA Without incident (EE-SX3009-P1) With incident (EE-SX4009-P1) High-level output voltage VOH (VCC x 0.9) V min. VOUT = VCC With incident (EE-SX3009-P1) Without incident (EE-SX4009-P1), RL = 47 kΩ Response frequency f 3 kHz min. VOUT = VCC, RL = 47 kΩ (see note) Note: The value of the response frequency is measured by rotating the disk as shown below. Disk 2.1 mm 0.5 mm 0.5 mm t = 0.2 mm Photomicrosensor (Transmissive) EE-SX3009-P1/-SX4009-P1 197 PDF
Документация EE-SX4009-P1

EE_SX3009_4009_P1_1010.fm

Дата модификации: 22.10.2010

Размер: 124.3 Кб

4 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
