G6HK-2-100-DC5

Omron
PCB Signal Relay – G6H Ultracompact, Ultrasensitive DPDT Relay ■ Compact size and low 5mm profile. ■ Low power consumption (140 mW for single- side stable, 100 to 300 mW for latching type) and high sensitivity. 4+ ■ Low thermoelectromotive force. ■ Low magnetic interference enables high- density mounting. ■ Single- and double-winding latching types also available. Ordering Information Cla...
развернуть ▼ свернуть ▲

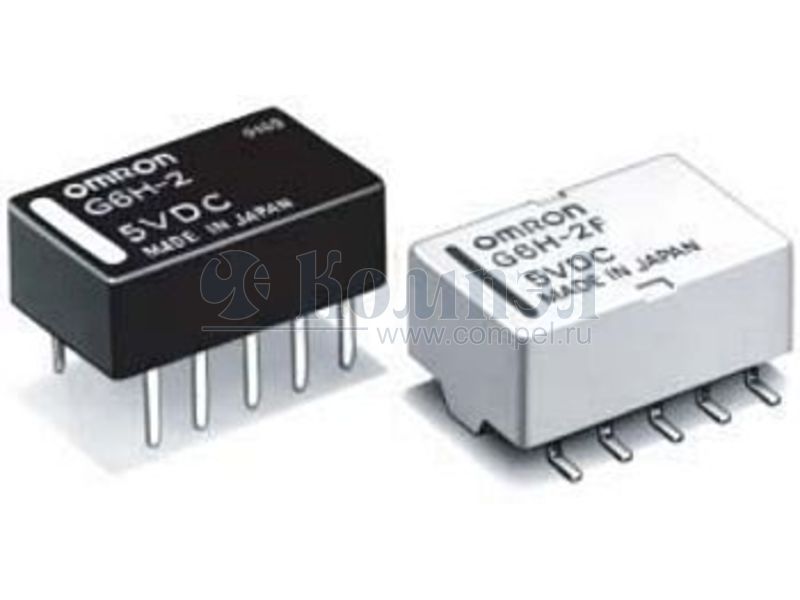

Внешний вид G6HK2 5DC
  • Корпус: —

Файлы 1

показать свернуть
PCB Signal Relay – G6H Ultracompact, Ultrasensitive DPDT Relay ■ Compact size and low 5mm profile. ■ Low power consumption (140 mW for single- side stable, 100 to 300 mW for latching type) and high sensitivity. 4+ ■ Low thermoelectromotive force. ■ Low magnetic interference enables high- density mounting. ■ Single- and double-winding latching types also available. Ordering Information Classification DPDT Fully Sealed Single-side stable Single-winding latching Double-winding latching PCB terminal G6H-2 G6HU-2 G6HK-2 Surface mount terminal G6H-2F – – Note: When ordering, add the rated coil voltage to the model number. Example: G6HK-2 12 VDC Rated coil voltage Model Number Legend G6H 1 2 3 VDC 4 5 1. Relay Function None: Single-side stable U: Single-winding latching K: Double-winding latching 2. Contact Form 2: DPDT 3. Terminal Shape None: PCB terminal F: Surface mount terminal 4. Classification U: Ultrasonically cleanable 5. Rated Coil Voltage 3, 5, 6, 9, 12, 24 VDC Specifications ■ Coil Ratings Single-side Stable Type (G6H-2, G6H-2F) Rated voltage 3 VDC 5 VDC 6 VDC 9 VDC 12 VDC Rated current 46.7 mA 28.1 mA 23.3 mA 15.5 mA 11.7 mA 8.3 mA Coil resistance 64.3 Ω 178 Ω 257 Ω 579 Ω 1,028 Ω 2,880 Ω Coil inductance Armature OFF 0.025 0.065 0.11 0.24 0.43 1.2 (H) (ref. value) 0.058 0.09 0.20 0.37 1.0 Armature ON 0.022 24 VDC Must operate voltage 75% max. of rated voltage Must release voltage 10% min. of rated voltage Max. voltage 200% of rated voltage at 23°C 170% of rated voltage at 23°C Power consumption Approx. 140 mW Approx. 200 mW Note: 48 VDC (single-side stable) model is also available. Consult OMRON for details. 187 PDF
Документация на G6HK2 5DC

2004 Omron Catalogue.pdf

Дата модификации: 22.12.2004

Размер: 92.4 Кб

6 стр.
