ECPU1C104MA5

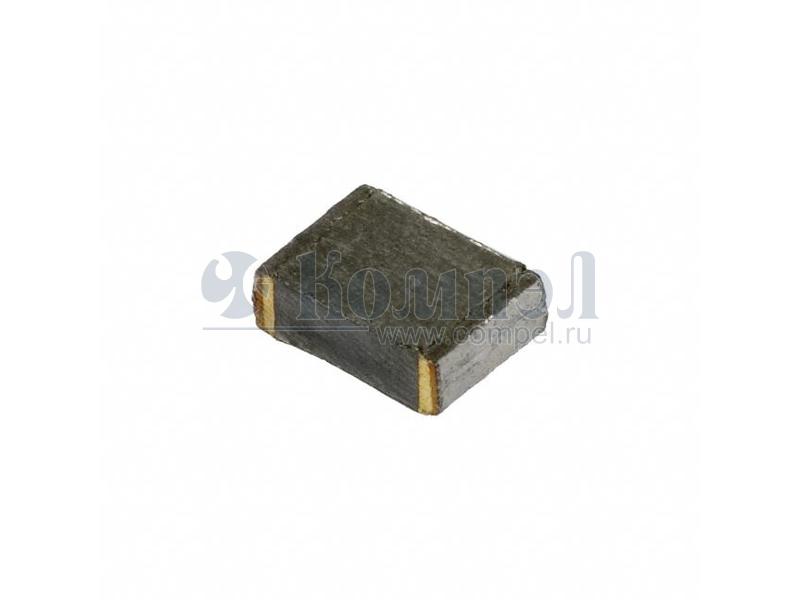

Конденсатор плёночный 16 В, 0.1 мкФ ±20%, Resin
развернуть ▼ свернуть ▲

Технические характеристики

показать свернуть
Ёмкость номинальная
Допуск по ёмкости
Напряжение постоянное номинальное
Тип диэлектрика
Способ монтажа
Температура рабочая
Размер 2×1.25×1 мм
Примечание
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 3

показать свернуть
Тип Наименование Корпус Упаковка i Ёмкость Допуск Напряжение VDC Напряжение VAC Тип диэлектрика Способ монтажа Шаг Корпус производителя ESR Ток пульсаций Классификация Применение Температура рабочая Примечание Карточка
товара
A- ECHU1C104GX5 (PAN)

SMD121032X25MM в ленте 2000 шт Film Capacitor, Polyphenylene Sulfide, 16V, 2% +Tol, 2% -Tol, 0.1uF, Surface Mount, 1310
A- ECHU1C104JX5 (PAN)

SMD121032X25MM в ленте 2000 шт
A- ECH-U1C104JB5 (PAN)

Polyphenylene Sulfide (PPS), Metallized - Stacked

Файлы 3

показать свернуть
Plastic Film Capacitors Stacked Metallized Plastic Film Chip Capacitor ECPU(A) series Stacked dielectric and inner electrode with simple mold-less construction. Features ● ● ● ● Low ESR Small size & large capacitance For reflow soldering RoHS compliant Recommended applications ● Noise suppressor circuit ● Audio circuit Explanation of part number 1 2 3 4 5 6 E C P U 1 C Product code Dielectric & construction 7 9 Capacitance Rated voltage Code 1C 8 R. voltage [DC] 16 V 10 11 12 M A 5 Cap. Tol. Suffix 1 Suffix 2 Code M Code Tape width 5 8 mm Cap. Tol. ±20 % Specifications Category temp. range −40 ℃ to +85 ℃ (Including temperature-rise on unit surface) Rated voltage [DC] Capacitance range Capacitance tolerance Dissipation factor (tan δ) Withstand voltage Insulation resistance (IR) Soldering conditions 16 V 0.10 μF to 1.0 μF (E6) ±20 %(M) tan δ ≦ 1.5 % (20 ℃, 1 kHz) Between terminals: Rated voltage (V) × 150 % 60 s C ≦ 0.33 μF IR ≧ 1000 MΩ (20 ℃, 10 V [DC], 60 s) C > 0.33 μF IR ≧ 300 MΩ∙μF (20 ℃, 10 V [DC], 60 s) Reflow soldering:240 ℃ max. and 30 sec max. at more than 220 ℃ (Temp. at capacitor surface) * In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”. Construction Dimensions L±0.2 H±0.2 W±0.20 g Element (Stacked) Outer electrode e±0.30 (±0.25)*1 e±0.30 (±0.25)*1 Size J1 H1 H2 H3 G2 L 2.0 3.2 3.2 3.2 3.2 W 1.25 1.6 1.6 1.6 2.5 H 1.0 0.8 1.0 1.4 1.4 Unit : mm e 0.45 0.65 0.65 0.65 0.65 g ≧0.6 ≧1.0 ≧1.0 ≧1.0 ≧1.0 *1: To be applied only for size code J1 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 01-Dec-15 PDF
Документация на ECPU1C104MA5

Series catalog

Дата модификации: 27.01.2020

Размер: 606.9 Кб

16 стр.

Plastic Film Capacitors Stacked Metallized Plastic Film Chip Capacitor Series : ECPU(A) Stacked dielectric and inner electrode with simple mold - less construction Features ● Low ESR ● Max. capacitance values 1.0 μF ● Smallest package size in film capacitors ● For reflow soldering ● RoHS directive compliant 3225/1.0 μF Recommended applications ● Noise ● Audio suppressor circuit Explanation of part number 1 2 3 4 5 6 E C P U 1 C Product code Dielectric & construction Rated voltage 7 8 9 Capacitance 10 11 12 M A 5 Cap. Tol. Suffix Suffix 1C 16 V.DC Code Tape width 5 8 mm Specifications Category temp. range (Including temperature-rise on unit surface) Rated voltage – 40 °C to +85 °C 16 V.DC Capacitance range 0.10 μF to 1.0 μF (E6) Capacitance tolerance ±20 %(M) Dissipation factor (tan d) tan d < 1.5 % ( 20 °C, 1 kHz ) Withstand voltage Between terminals : Rated volt (V.DC)×150 %, 60 s C < 0.33 μF : IR > 1000 MΩ (20 °C, 10 V.DC, 60 s) C > 0.33 μF : IR > 300 MΩ ∙ μF (20 °C, 10 V.DC, 60 s) Reflow soldering : 240 °C max. and 30 sec max. at more than 220 °C (Temp. at capacitor surface) Insulation resistance (IR) Soldering conditions ✽ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”. Construction Dimensions W±0.20 Unit : mm H±0.2 L±0.2 Element (Stacked) Outer electrode g e±0.30 e±0.30 (±0.25) ✽ (±0.25) ✽ ✽ To be applied only for size code J1 Size code J1 H1 H2 H3 G2 L W H e g 2.0 1.25 1.0 0.45 > 0.6 3.2 1.6 0.8 0.65 > 1.0 3.2 1.6 1.0 0.65 > 1.0 3.2 1.6 1.4 0.65 > 1.0 3.2 2.5 1.4 0.65 > 1.0 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 02 Sep. 2017 PDF
Документация на серию ECPU(A)

Series catalog

Дата модификации: 17.01.2019

Размер: 103.4 Кб

2 стр.
