EECS0HD224H

Panasonic Industrial Europe GmbH
SMD Not SMD Body shape Coin type(multi-layer structure) Maximum operating voltage (V) 5.5 Capacitance (F) 0.22 Tolerance on capacitance (%) -20 to 80 Internal resistance(max.) (Ohm) 75 Category temperature range (Cel) -25 to 70 Body diameter (mm) 10.5 Occupied-length (mm) 11.5 Occupied-width (mm) 10.5 Occupied-height (mm) 6 Lead(terminal) pitch (mm) 10 Endurance (h) 1000 Forming & packaging feature Bulk(no lead/terminal forming),bag packing Quantity(min. packaging unit) (PCS.) 200 Weight(Typ.) (g) 1
развернуть ▼ свернуть ▲

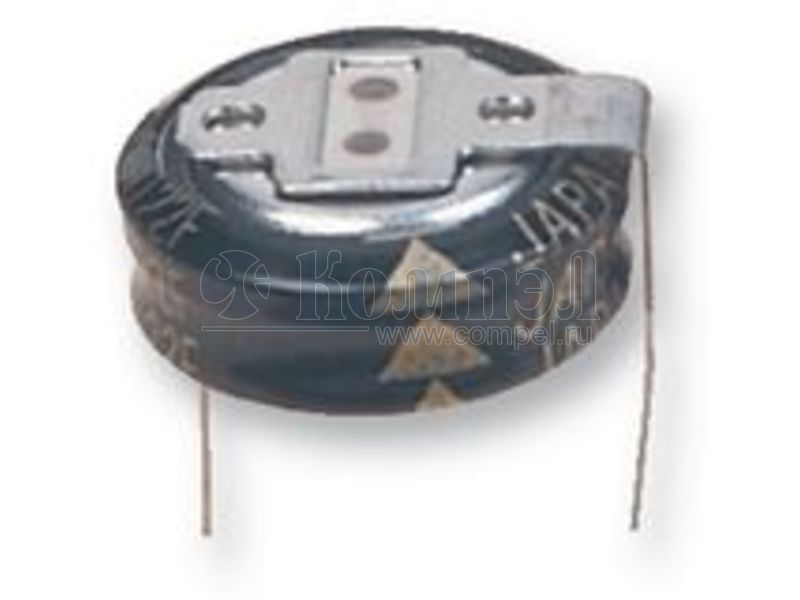

Внешний вид EECS0HD224H
  • Группа: Ионисторы
  • Альт. имя: ИОНИСТОР 0.22/5.5 1106H (PAN)
  • Корпус: —
  • Норма упаковки: 200  шт.
  • снято с производства
