EEEFK1A102P

Panasonic Industrial Europe GmbH
Конденсатор алюминиевый 10 В x 1000 мкФ ±20%, SMD, -55...105 °C, 2000 ч
развернуть ▼ свернуть ▲

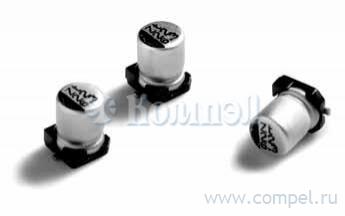

Внешний вид серии FK_SMD

Технические характеристики

показать свернуть
Номинальная ёмкость
Допуск ёмкости
Номинальное напряжение
Диаметр корпуса
Высота корпуса
Рабочая температура
Срок службы
Способ монтажа
  Примечания: Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141
Диаметр x Высота 10×10×10.3 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 34

показать свернуть
Тип Наименование Корпус Упаковка i Ёмкость Допуск Напряжение Диаметр Высота Траб Наработка Монтаж Примечания Выводы Карточка
товара
P= EEEFK1A102AP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P= UCM1C102MNL1GS (NICHICON)

— 5 шт

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P= 10TKV1000M10X10.5 (RUB)

—

 — — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P= 10TZV1000M10X10.5 (RUB)

— 1 шт

 — — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P= 10TLV1000M10X10.5 (RUB)

—

 — — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P- EEEFK1A102GL (PAN)

— — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P- EEEFN1A102P (PAN)

— 500 шт V-FN, 10V, 1000uF, 105°C, 2000h, 10x10.2mm, ripple 850mArms, 0.08Ohm —
P- EEEFK1A102GP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P- EEEFP1A102AL (PAN)

—

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P- EEEFP1A102AP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
P- EEEFK1A102AL (PAN)

— — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ EEEFN1A102V (PAN)

— 500 шт V-FN, Vibration proof, 10V, 1000uF, 105°C, 2000h, 10x10.2mm, ripple 850mArms, 0.08Ohm —
A+ JCK1A102M100105 (JB)

— в ленте 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ JCS1A102M100105 (JB)

— 500 шт — —
A+ JCS1C102M100105 (JB)

— 500 шт — —
A+ JCS1C102M125135 (JB)

— 200 шт — —
A+ JCK1C102M100105 (JB)

— 500 шт — —
A+ JCK1C102M125135 (JB)

— 200 шт — —
A+ CZ010M1000RSG-1010 (YAG)

— в ленте 500 шт конденсатор алюминиевый SMD 1000 мкФ 10 В -40...105 °C 1000 ч —
A+ CDS010M102F10PKKKV00R (SUSCON)

— — —
A+ 16SVPT1000M (PAN)

—

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ EEEFT1C102GV (PAN)

—

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ 16SVPF1000M (PAN)

— в ленте 400 шт High Voltage / Large capacitance —
A+ EEEFT1A102AL (PAN)

— — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 3333 —
A+ EEEFT1A102AP (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 3333 —
A+ EEEFT1A102AV (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 3333 —
A+ EEEFT1A102GV (PAN)

—

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 3333 —
A+ EEEFN1C102UP (PAN)

— 500 шт V-FN, 16V, 1000uF, 105°C, 2000h, 10x10.2mm, ripple 850mArms, 0.08Ohm —
A+ EEEFN1C102UV (PAN)

— 500 шт V-FN, Vibration proof, 16V, 1000uF, 105°C, 2000h, 10x10.2mm, ripple 850mArms, 0.08Ohm —
A+ EEEFT1C102AL (PAN)

—

 — Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ EEEFT1C102AP (PAN)

— в ленте 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ EEEFT1C102AV (PAN)

— 500 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ 16SVT1000M (PAN)

— 400 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 4141 —
A+ EEETK1A102AQ (PAN)

— 200 шт Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 1000uF, Surface Mount, 5353 —

Файлы 1

показать свернуть
Aluminum Electrolytic Capacitors/ FK Surface Mount Type Series: FK Type: V ■ Features ● Endurance: 2000 h to 5000 h at 105 °C ● Low impedance (40 % to 60 % less than FC series) Miniaturized (30 % to 50 % less than FC series) ● Vibration-proof product is available upon request. (08 mm and larger) ● AEC-Q200 qualified ✽ ● RoHS directive compliant ■ Specifications Category Temp. Range Rated W.V.Range Nominal Cap.Range Capacitance Tolerance DC Leakage Current tan d Characteristics at Low Temperature Endurance Shelf Life Resistance to Soldering Heat –55 °C to +105 °C 6.3 V.DC to 100 V.DC 3.3 μF to 6800 μF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached standard products list W.V. (V) 6.3 10 16 25 35 50 63 80 100 Z(–25 °C)/Z(+20 °C) 2 2 2 2 2 2 2 2 2 (Impedance ratio at 120 Hz) Z(–40 °C)/Z(+20 °C) 3 3 3 3 3 3 3 3 3 Z(–55 °C)/Z(+20 °C) 4 4 4 3 3 3 3 3 3 After applying rated working voltage for 2000 hours at +105 °C±2 °C and then being stabilized at +20 °C, Capacitors shall meet the following limits. ( > 012.5 and suffix “G” in 08×10.2, 010×10.2 are 5000 hours) Capacitance change ±30 % of initial measured value (Suffix “G” is 35 %) tan d < 200 % of initial specified value (Suffix “G” is 300 %) DC leakage current < initial specified value After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized at +20 °C, capacitors shall meet the limits specified in Endurance (With voltage treatment) After reflow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits. Capacitance change ±10 % of initial measured value tan d < initial specified value DC leakage current < initial specified value ■ Frequency correction factor for ripple current 50, 60 0.70 Correction factor Rated Voltage Mark j 6.3 V A 10 V C 16 V E 25 V V 35 V L Pressure Relief (010 and larger) Rated Voltage Mark Capacitance (μF)  K ', Series identification Rated Voltage Mark H J K 2A 50 V 63 V 80 V 100 V (P) (I) A±0.2 K (Unit : mm) B±0.2 Series identification Mark for Lead-Free Products Black Dot (Square) – H 0D±0.5 Capacitance (μF) > 012.5 Lot number 0.3 max.  K ', Lot number Negative polarity marking (–) 100 k to 1.00 ■ Dimensions in mm (not to scale) Example:6.3 V 22 μF, 6.3 V 3300 μF Marking color : BLACK < 010 Negative polarity marking (–) 10 k 0.95 + (I) ■ Marking Frequency (Hz) 1k 0.90 120 0.75 W ( ) Reference size Size code B D L A,B I W P K 4.0 5.8±0.3 4.3 5.5 max. 1.8 0.65±0.1 1.0 0.35 +- 1.5 0.2 C 5.0 5.8±0.3 5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35 +- 1.5 0.2 D 6.3 5.8±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35 +- 1.5 0.2 D8 6.3 7.7±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35 +- 1.5 0.2 E 8.0 6.2±0.3 8.3 9.5 max. 3.4 0.65±0.1 2.2 0.35 +- 1.5 0.2 F 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2 H G 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2 H13 12.5 13.5±0.5 13.5 15.0 max. 4.7 0.90±0.3 4.4 0.70±0.3 J16 16.0 16.5±0.5 17.0 19.0 max. 5.5 1.20±0.3 6.7 0.70±0.3 K16 18.0 16.5±0.5 19.0 21.0 max. 6.7 1.20±0.3 6.7 0.70±0.3 ✽ This product qualify for AEC-Q200, but it has some deviations. Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 01 Mar. 2014 – EEE-41 – PDF
