RS1G14XC5

Runic
RS1G14 RS1G14 Single Schmitt-Trigger Inverter DESCRIPTION FEATURES • Operating Voltage Range:1.65V to 5.5V • Low Power Consumption:1µA (Max) • • Operating Temperature Range: -40°C to +125°C Input Accept Voltage to 5.5V • High Output Drive: ±24mA at VCC=3.0V • Ioff Supports Partial-Power-Down Mode Operation Micro SIZE PACKAGES: SOT23-5, SC70-5 • The RS1G14 Single Schmitt-trigger inv...
развернуть ▼ свернуть ▲

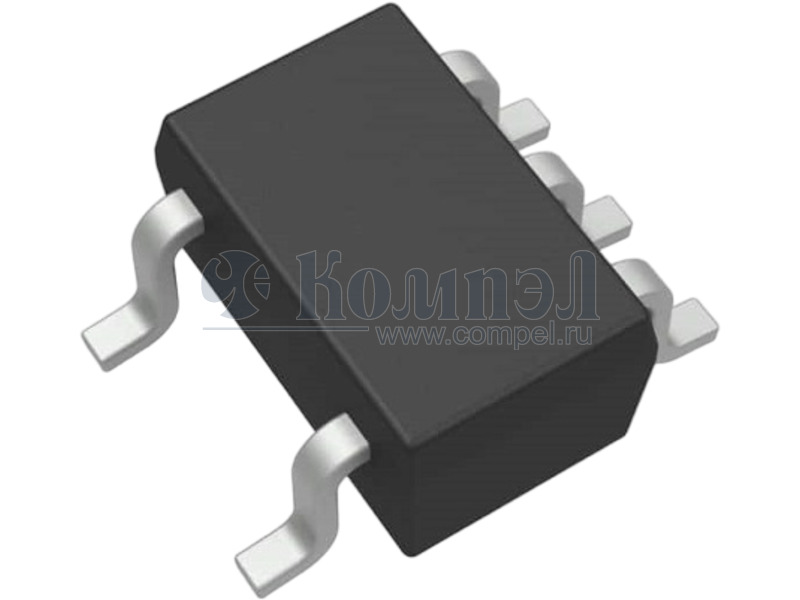

Внешний вид серии RS1G14

Технические характеристики

показать свернуть
Корпус SOT353
Тип логики
Кол-во узлов
Логическая функция
Диапазон напряжений питания
Номинальное напряжение питания
Задержка прохождения сигнала вход-выход
Входной гистерезис
Максимальный выходной ток
Максимальный входной ток
Рабочая температура
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
RS1G14 RS1G14 Single Schmitt-Trigger Inverter DESCRIPTION FEATURES • Operating Voltage Range:1.65V to 5.5V • Low Power Consumption:1µA (Max) • • Operating Temperature Range: -40°C to +125°C Input Accept Voltage to 5.5V • High Output Drive: ±24mA at VCC=3.0V • Ioff Supports Partial-Power-Down Mode Operation Micro SIZE PACKAGES: SOT23-5, SC70-5 • The RS1G14 Single Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The RS1G14 device contains one inverter and ̅ . The device performs the Boolean function Y= A functions as an independent inverter with Schmitttrigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. APPLICATIONS • AC Receiver and • Home Theaters • Blu-ray Players and Home Theaters • • Desktops or Notebook PCs Digital Video Cameras (DVC) • Mobile Phones • Personal Navigation Device (GPS) • Portable Media Player The RS1G14 is available in Green SOT23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +125°C. Device Information (1) PART NUMBER RS1G14 Functional Block Diagram A 2 4 (1) PACKAGE BODY SIZE (NOM) SOT23-5(5) 2.92mm×1.60mm SC70-5(5) 2.10mm×1.25mm For all available packages, see the orderable addendum at the end of the data sheet. Y FUNCTION TABLE INPUT OUTPUT A Y H L L H Y=A H=High Voltage Level L=Low Voltage Level REV A.2 1 / 11 www.run-ic.com PDF
Документация на серию RS1G14

Дата модификации: 26.04.2022

Размер: 426.6 Кб

11 стр.

    Внимание! Точность указанного на сайте описания товара не может быть гарантирована. Для получения более полной и точной информации о товаре смотрите техническое описание (Datasheet) на сайте производителя.
