RY8411

RYCHIP Semiconductor Inc.
RY8411 Standoff 42V 1.2A 800KHz Sync Step-Down Regulator Features • • • • • • • • • Wide 4V to 38V Operating Input Range Standoff Voltage: 42V 1.2A Continuous Output Current 800KHz Switching Frequency Short Protection with Foldback-Mode Built-in Over Current Limit Built-in Over Voltage Protection Support PSM Mode Internal Soft-Start • 250mΩ/150mΩ Low RDS(ON) Internal Power MOSFETs • • • • •...
развернуть ▼ свернуть ▲

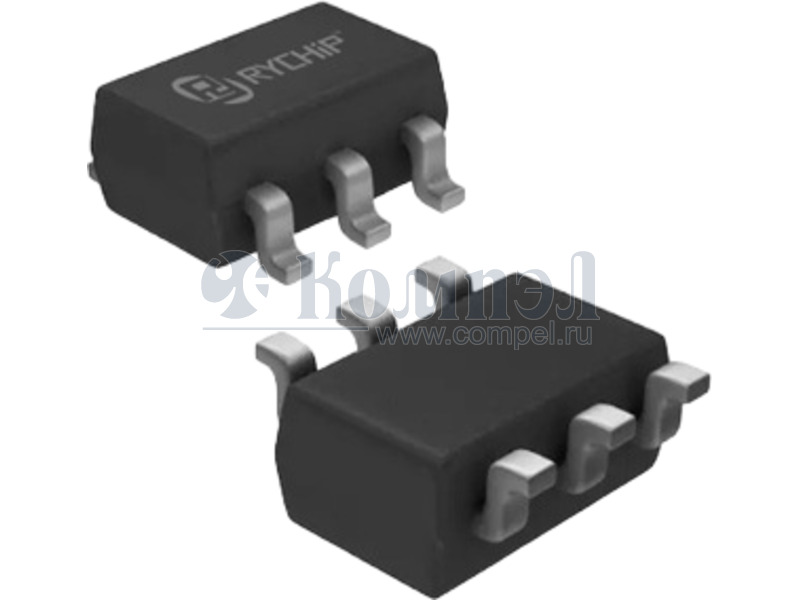

Внешний вид RY8411

Технические характеристики

показать свернуть
Корпус SOT236
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Аналоги 7

показать свернуть
Тип Наименование Корпус Упаковка i Тип Режим Uвх Uвых Iвых Выходов F преобр Iпотр nmax Опции Примечание T раб Карточка
товара
P= JW5026SOTB#TRPBF (JOULWATT)

SOT236 в ленте 3000 шт

 —
P= SCM1301ATA (MORNSUN)

TSOT236 в ленте 3000 шт

 — —
P= BL9366 (CN BELL)

SOT236 в ленте 3000 шт

 — — — — — — — — — — — —
P= BL9362 (CN BELL)

SOT236 в ленте 3000 шт

 Internal compensation, Soft-start, Cycle-by-cycle current limit, Short-circuit protection, Thermal shutdown, UVLO, EN pin 0.6A continuous output; 2MHz fixed frequency; 850mΩ internal NMOS; up to 95% efficiency; minimum duty cycle 20%
P= SY8291ABC (SILERGY)

SOT236 в ленте 3000 шт

 — — —
P= BL9342 (CN BELL)

SOT236 в ленте 3000 шт

 Internal compensation, Soft-start, Cycle-by-cycle current limit, Thermal shutdown, UVLO, EN pin 0.6A continuous output; 1.8MHz fixed frequency; up to 90% efficiency; 500mΩ internal MOSFET; pulse skip mode at light load
P= SY8290ABC (SILERGY)

SOT236 в ленте 3000 шт

 — — —

Файлы 1

показать свернуть
RY8411 Standoff 42V 1.2A 800KHz Sync Step-Down Regulator Features • • • • • • • • • Wide 4V to 38V Operating Input Range Standoff Voltage: 42V 1.2A Continuous Output Current 800KHz Switching Frequency Short Protection with Foldback-Mode Built-in Over Current Limit Built-in Over Voltage Protection Support PSM Mode Internal Soft-Start • 250mΩ/150mΩ Low RDS(ON) Internal Power MOSFETs • • • • • • Output Adjustable from 0.8V No Schottky Diode Required Integrated internal compensation Thermal Shutdown Available in SOT23-6 Package -40°C to +85°C Temperature Range • • Industrial Distributed Power Applications Portable Hand-Held Instruments Applications • • Battery-Powered Equipment Portable Media Players General Description The RY8411 device is high-efficiency, synchronous step-down DC/DC regulators. With a wide input range, it is suitable for a wide range of applications, such as power conditioning from unregulated sources. It features a low RDSON (250mΩ/150mΩ typical) internal switch for maximum efficiency (92% typical). Supports PSM mode, the operating frequency is fixed at 800kHz, allowing the use of small external components while still being able to have low output voltage ripple. With OVP function, the IC can stand off input voltage as high as 42V. The RY8411 supports 1.2A continuous output current, and it has a 0.8V nominal feedback voltage. Additional features include: thermal shutdown, VIN undervoltage lockout, and gate drive undervoltage lockout. The RY8411 is available in a low-profile SOT23-6 package. Typical Application Circuit C1 BS VIN IN SW L1 VOUT R1 CIN ON/ OFF EN CFF COUT FB GND R2 Basic Application Circuit Email: support@rychip.com ©RYCHIP Semiconductor Inc. http://www.rychip.com Page 1 / 13 PDF
