CDEP105-0R3NC-88

Sumida
Дроссель 360 нГн ±30%, 19 А
развернуть ▼ свернуть ▲
Фотография серии CDEP105
Footprint серии CDEP105
Схема серии CDEP105

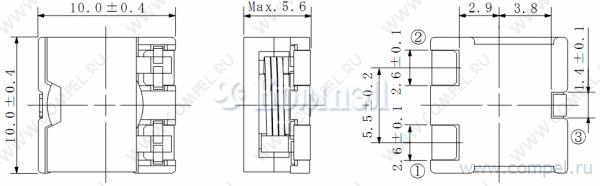

Чертеж серии CDEP105

Технические характеристики

показать свернуть
Индуктивность номинальная
Допуск по индуктивности
Ток рабочий
Ток насыщения
Корпус производителя
Экранирование магнитное
Температура рабочая
Размер 10.4×10.4×5.6 мм
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 2

показать свернуть
Power Inductors <SMD Type: CDEP Series> Type: CDEP105 Product Description ・10.4×10.4mm Max.(L×W), 5.6mm Max. Height. ・Standard type, Low D.C.R Type and High Power Type are available. ・Inductance Range:0.22～5.0μH (standard type ); 0.36～8.8μH(Low D.C.R type); 0.15～3.0μH (High Power type). ・Saturation Current range: 8.4～40.0 A(Standard type ) ; 4.8～24.0A(Low D.C.R type);12.6～55.0A (High Power type). ・Temperature rise current 4.9～19.0A ・In addition to the standards versions shown here, custom inductors are also available to meet your exact requirements. ◆ Feature ・Magnetically shielded construction. ・Super high current, Mn-Zn core used, Flat wire used. ・Ideally used in computer CPU power supply. ・RoHS Compliance. ◆ Dimensions (mm) ◆ Land Pattern (mm) 2. 6 ±0. 1 2 .6 ±0 .1 5. 5 ±0 .2 10 .0 ±0.4 2. 9 3 .8 1. 4 ±0 .1 Ma x. 5. 6 10 .0 ± 0 .4 ② ③ ① ◆Schematics (Bottom) 11.0 2.9 3.8 ② ③ 2.0 2.5 8.5 ① Please refer to the sales offices on our website for a representative near you www.sumida.com 1/3 PDF
Документация на серию CDEP105

Дата модификации: 05.05.2008

Размер: 159.4 Кб

3 стр.

POWER INDUCTORS CDEP105 < SMD TYPE : The square wire use Inductors & Inductors for PC > DIMENSIONS (mm) Max. 5.6 2.9 CONNECTION 2.6 3 8.5 2.5 2.0 5.5 Max.10.4 1.4 2 3.8 ( 0.15µH - 8.8µH ) CONSTRUCTION 3.8 2.6 Max.10.4 LAND PATTERNS (mm) 1 2.9 BOTTOM VIEW 11.0 TYPE : CDEP105(Low D.C.R Type), CDEP105(Standard Type), CDEP105(High Power Type) Parts No. L (H) 0R1 0.15µ 0R2 0.22µ 0R3 0.3µ 0R3 0.36µ 0R4 0.45µ 0R5 0.5µ 0R8 0.8µ 1R2 1.2µ 1R3 1.3µ 1R4 1.4µ 1R5 1.5µ 1R8 1.8µ 2R0 2.0µ 2R2 2.2µ 2R5 2.5µ 3R0 3.0µ 3R2 3.2µ 4R0 4.0µ 4R3 4.3µ 5R0 5.0µ 5R7 CDEP105 (Low D.C.R Type) CDEP105(Standard Type) Saturation Rated Current (A) *A Saturation Rated Current (A) *A D.C.R.(Ω) : Max.(Typ.) 20 °c 100 °c Temperature Rise Current (A) *B D.C.R.(Ω) : Max.(Typ.) 1.7m(1.4m) 1.7m(1.4m) 2.4m(2.0m) 4.1m(3.4m) 5.3m(4.4m) 24.0 16.0 12.0 9.6 20.0 13.2 10.0 8.0 20 °c 40.0 100 °c CDEP105(High Power Type) Temperature Rise Current (A) *B 30.9 Saturation Rated Current (A) *A D.C.R.(Ω) : Max.(Typ.) 20 °c 100 °c 1.7m(1.4m) 55.0 46.0 19.0 2.4m(2.0m) 40.0 33.0 17.7 4.1m(3.4m) 30.4 25.0 13.0 5.3m(4.4m) 25.2 20.7 11.2 7.5m(6.2m) 21.0 17.4 9.0 10.5m(8.7m) 18.0 15.0 7.8 12.4m(10.3m) 15.8 13.1 7.4 18.0m(15.0m) 14.0 11.7 6.2 23.8m(19.8m) 12.6 10.5 4.9 19.0 19.0 17.7 2.4m(2.0m) 26.4 21.2 17.7 4.1m(3.4m) 20.8 16.7 13.0 5.3m(4.4m) 16.8 13.4 11.2 7.5m(6.2m) 13.8 11.0 9.0 13.0 11.2 10.5m(8.7m) 7.5m(6.2m) 7.8 6.6 9.0 10.5m(8.7m) 6.8 5.7 7.8 5.7µ 12.4m(10.3m) 5.8 4.9 7.4 7R2 7.2µ 18.0m(15.0m) 5.3 4.2 6.2 8R8 8.8µ 23.8m(19.8m) 4.8 4.0 4.9 11.8 9.6 7.8 12.4m(10.3m) 10.5 8.4 7.4 18.0m(15.0m) 9.3 7.4 6.2 23.8m(19.8m) 8.4 6.7 4.9 Measuring Freq. (L) CDEP105(L) 100kHz CDEP105(S) 100kHz CDEP105(H) 100kHz Tolerance of Inductance CDEP105(L) 0.36µH ± 30% (N), 0.8µH – 8.8µH ± 20% (M) CDEP105(S) 0.22µH ± 30% (N), 0.45µH – 5.0µH ± 20% (M) CDEP105(H) 0.15µH – 0.3µH ± 30% (N), 0.5µH – 3.0µH ± 20% (M) Other *A Saturation Rated Current : The current either the inductance value becomes 35% (tolerance ± 30%) lower than its nominal value or becomes 25% (tolerance ± 20%) lower than its nominal value.(Ta=20°C) *B Temperature Rise Current : The actual current when temperature of coil becomes ∆T=40 °C. (Ta=20°C) About Lead-free products Lead-free products are now available for sale To order a lead-free product, please add " NP " after the product type e.g. Ordering code of lead product : Type nameOrdering code of lead-free product : Type name NP 38 Temperature Rise Current (A) *B Ordering Code CDEP105 : Parts No. : Tolerance of inductance M (20%) N (30%) : Packing C (Carrier tape) B (Box) : 88 (Low D.C.R. type) 50 (Standard type) 32 (High power type) PDF
Документация на CDEP105-0R1NC-32

2006_power02

Дата модификации: 10.08.2006

Размер: 99.5 Кб

1 стр.
