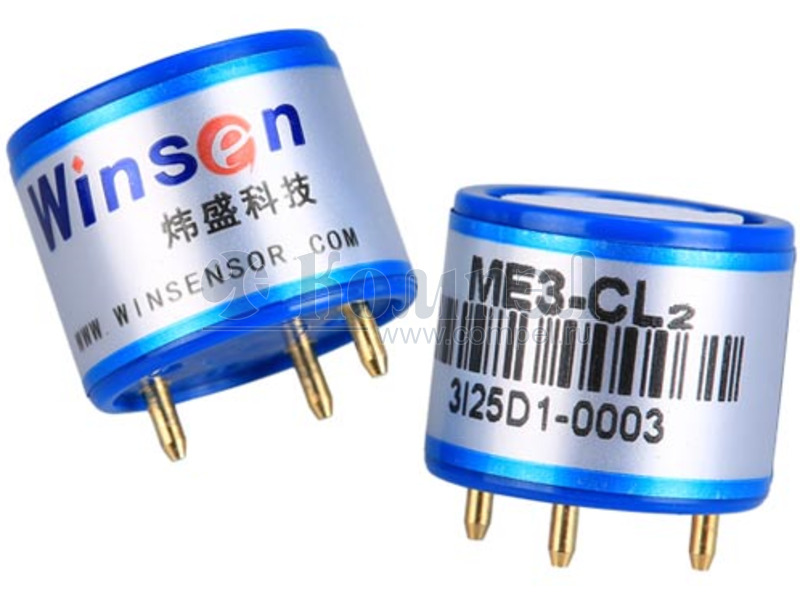

ME3-CL2

Electrochemical Sensor ME3-CL2 • Detection Gas: Cl2/chlorine • Detection Range: 0~10ppm CL2 • Application: industrial and environmental fields ME3-CL2 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current. Measurement range 0~10ppm Max detecting concentration100ppm Sensitivity (0.6±0.15)µA/ppm Resolution ratio 0.1ppm Response time (T90) <60S Bias voltage 0mV Load resistance (recommend)10Ω Repeatability <2%output value Stability (/month) <2% Output Linearity linear Zero drift (-20~40С) 0.2ppm Storage temperature -20+50С Storage humidity15%~90%RH Pressure range (kPa) 90-110 Anticipated using life 2 years
