NUP1301 Low Capacitance Diode Array for ESD Protection in a Single Data Line NUP1301 is a MicroIntegration device designed to provide protection for sensitive components from possible harmful electrical transients; for example, ESD (electrostatic discharge). SOT−23 CASE 318 STYLE 11 Features • Low Capacitance (0.9 pF Maximum) • Single Package Integration Design • Provides ESD Protection for J...
развернуть ▼ свернуть ▲

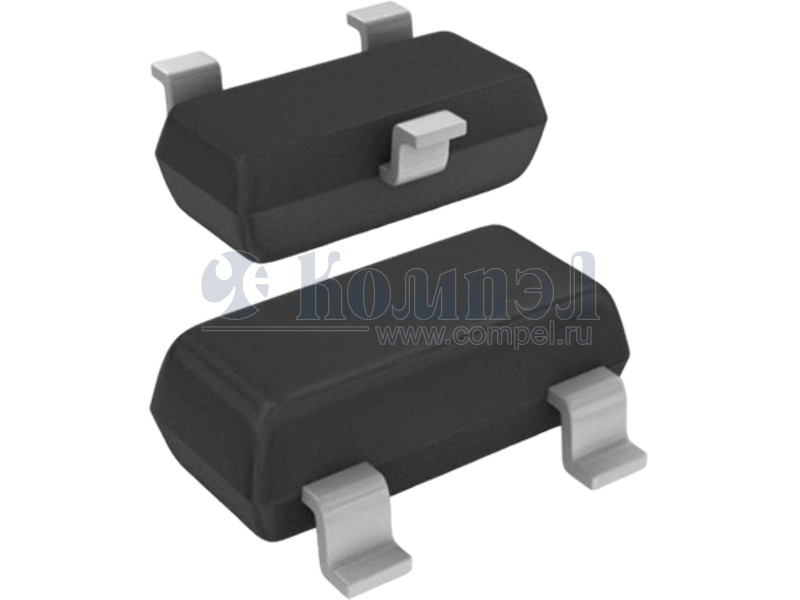

Внешний вид NUP1301
