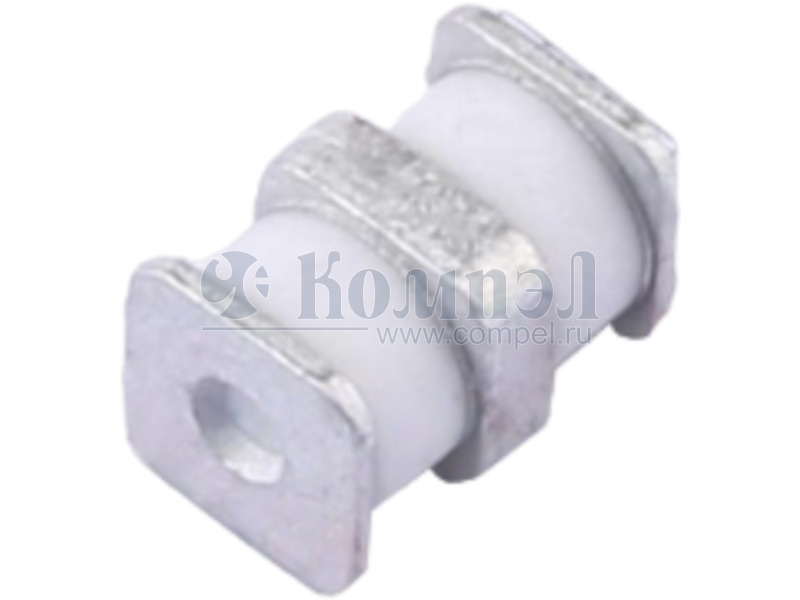

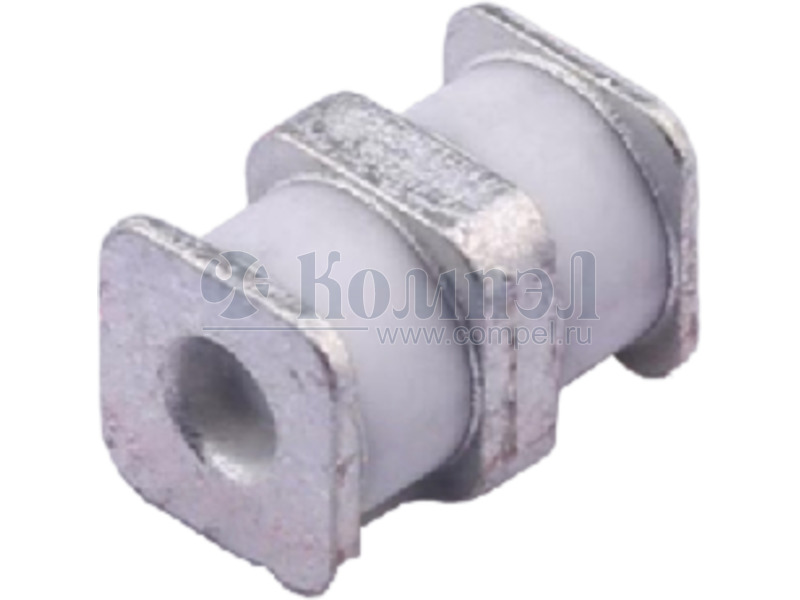

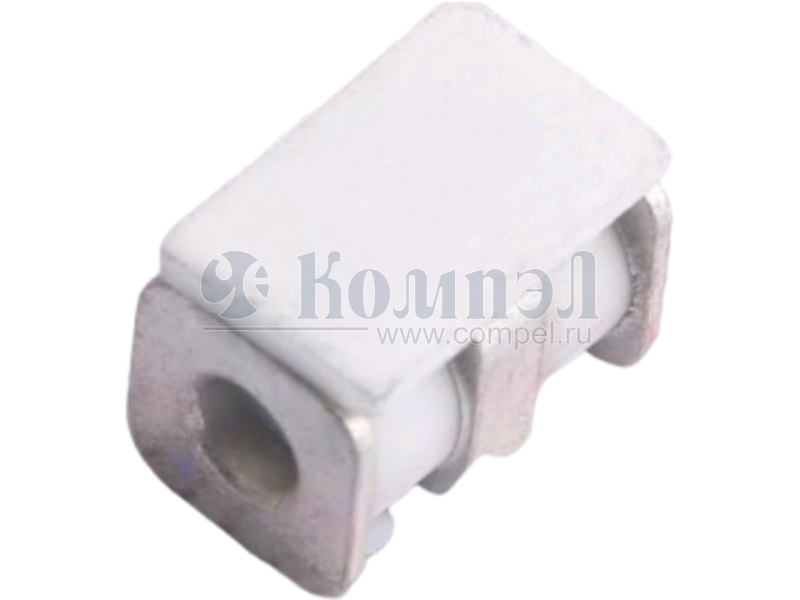

Серия газоразрядников B3D

Bencent

Общие характеристики

 Раздел Газоразрядники
Способ монтажа
Повторяемость пробоя

Документация на серию B3D

B3D075M Order Code: B3D075M Version: A0 2019-03-18 Gas Discharge Tube Features Exterior Surface Mounting Design 7.6×5.0×5.0mm High Current Handling Capability 10,000A @ 8/20μ s Low Capacitance and Insertion Loss Quick Response and Long Service Life Moisture sensitivity level：Level 1 SMD Application information rmation Package (Top View) Agency Approvals Schematic Symbol RS485/232/422 ` Ethernet Icon 1 3 2 Description Compliance with 2011/65/EU 1 3 Compliance with IEC61249-2-21:2003 Mean lead free 2 UL Certificated E232249 Electrical Parameter DC Breakdown Voltage 1)2) 4) 100V/s 60-90 for 99 % of measured values At 100V/μs Typical values of distribution Impulse Spark-over Voltage4) for 99 % of measured values At 1kV/μs Typical values of distribution 8/20μs ±5 times  475 V V A 1 time 1,000 A ±150times 200 A 1A，1S 10 Times 1A，0.18S (9 cycl.) 1 Time 4) 1time At 1A ~6 V 4) DC=50V ≥1 GΩ 4) VDC=0.5V ≤1.5 pF <0.2 μs Glow to arc transiton current <0.4 A Glow Voltage At 0.1A ~65 V Weight ~1.0 g Operating And Storage Temperature -40~125 ℃ Insulation Resistance Capacitance at 1MHz Transverse Delay Time 3) Marking Without 1) At delivery AQL 0.65 level II GB/T 2828.1-2003 3) Terms and waveforms in accordance with ITU-T Rec. K. 12 and IEC 61643-21 5）Total Currents through center electrode 2, half value through each Tip electrode“1” “3”.. 1/3  575 V 20,000 10/1000μs Arc Voltage  300 V A 10/350μs AC Discharge Current5)  400 10,000 8/20μs Impulse Discharge Current 5) V www.bencent.com.cn 2) In ionized mode 4）Tip electrode “1”or “3”to center electrode “2” Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications PDF
Документация на B3D075M

Дата модификации: 25.03.2019

Размер: 394.6 Кб

3 стр.

    Товары серии B3D

    Наименование i Упаковка Полюс Пробой Ток Допуск
    B3D075M (BENCENT)


    B3D090L (BENCENT)


    		 1 шт
    B3D090L-C (BENCENT)

    		1 шт
    B3D090M-C (BENCENT)

    		в ленте 1000 шт
    B3D090M-C-2 (BENCENT)


    B3D230L-1 (BENCENT)


    B3D230L-C (BENCENT)

    		в ленте 1000 шт
    B3D230L-CD (BENCENT)


    B3D350M-R (BENCENT)


    B3D350M-R-1 (BENCENT)


    B3D420L (BENCENT)


    B3D420L-1 (BENCENT)


    B3D420L-C (BENCENT)

    		в ленте 1000 шт
    B3D470L-1 (BENCENT)


    B3D470L-2 (BENCENT)


    B3D470L-C (BENCENT)


    B3D470L-C-1 (BENCENT)


    B3D470L-C-2 (BENCENT)


    B3D470M (BENCENT)


    B3D650M-C-1 (BENCENT)

    B3D650M-C-3 (BENCENT)


    B3D650M-C-4 (BENCENT)
