B3D090M-C Order Code: B3D090M-C Version: A8 2019-01-18 Gas Discharge Tube Features Exterior Surface Mounting Design 7.8×5.0×6.0mm High Current Handling Capability 10,000A @ 8/20μ s Low Capacitance and Insertion Loss Quick Response and Long Service Life Moisture sensitivity level：Level 1 Application information rmation Package (Top View) Agency Approvals Schematic Symbol SMD RS485/23...
развернуть ▼ свернуть ▲

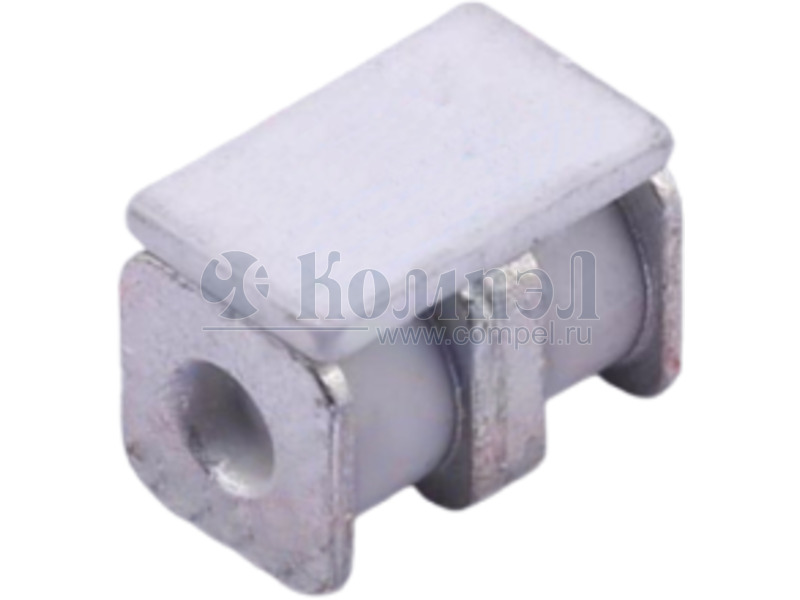

Внешний вид B3D090M-C

Технические характеристики

показать свернуть
Количество полюсов
Напряжение пробоя
Импульсный ток пробоя
Способ монтажа
Примечания
Повторяемость пробоя
Допуск напряжения пробоя
Нашли ошибку? Выделите её курсором и нажмите CTRL + ENTER

Файлы 1

показать свернуть
B3D090M-C Order Code: B3D090M-C Version: A8 2019-01-18 Gas Discharge Tube Features Exterior Surface Mounting Design 7.8×5.0×6.0mm High Current Handling Capability 10,000A @ 8/20μ s Low Capacitance and Insertion Loss Quick Response and Long Service Life Moisture sensitivity level：Level 1 Application information rmation Package (Top View) Agency Approvals Schematic Symbol SMD RS485/232/422 ` Ethernet Icon 1 3 2 Description Compliance with 2011/65/EU 1 3 Compliance with IEC61249-2-21:2003 Mean lead free 2 UL Certificated E232249 Electrical Parameter DC Breakdown Voltage 1)2) 4) 100V/s 72-108 for 99 % of measured values At 100V/μ s Typical values of distribution Impulse Spark-over Voltage4) for 99 % of measured values At 1kV/μ s Impulse Discharge Current AC Discharge Current Arc Voltage 5)  450  350  600  500 V V V V 8/20μ s ±5 times 10,000 A 10/350μ s 1,000 A 10/1000 μ s ±150 times 200 A 10A，1S 10 Times 5) 4) Insulation Resistance Typical values of distribution V 1 time At 1A ~10 V 4) DC=50V ≥1 GΩ 4) VDC=0.5V ≤1.5 pF ~1.12 g -40-125 ℃ Capacitance at 1MHz Weight Operating And Storage Temperature Marking Bencent Logo YY WW B3D090M-C（YY：year of production，WW：week of production） 1) At delivery AQL 0.65 level II ISO 2859 2) In ionized mode 3) Terms and waveforms in accordance with ITU-T Rec. K. 12 and IEC 61643-21 4）Tip electrode “1”or “3”to center electrode “2” 5）Total Currents through center electrode 2, half value through each Tip electrode“1” “3”.. 1/3 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications PDF
