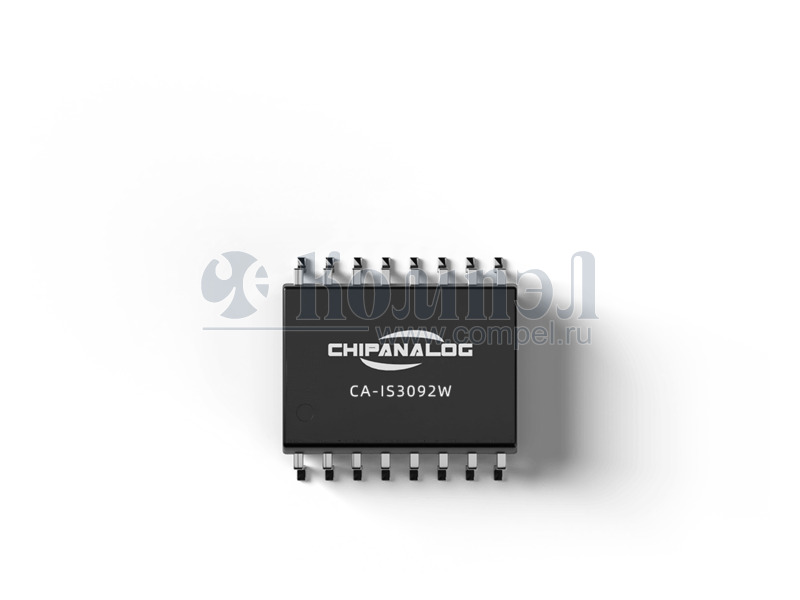

Серия RS-485 и RS-422 CA-IS309x

Chipanalog

Общие характеристики

 Раздел RS-485 и RS-422
Поддерживаемый протокол
Нагрузочная способность (узлов)
Напряжение питания
ESD защита
Напряжение изоляции вход-выход
Максимальное рабочее напряжение между шиной и общим проводом
Корпус SO-16 SOIC16
Особенности Isolated RS-485/RS-422 Transceivers with Integrated DC-DC Converter

Документация на серию CA-IS309x

CA-IS3090, CA-IS3092, CA-IS3096, CA-IS3098 Version 1.03, 2022/04/15 Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS309x 5kVRMS Isolated RS-485/RS-422 Transceivers with Integrated DC-DC Converter 1. Features 3. • High-Performance and Compliant with RS-485 EIA/TIA-485 Standard ◼ Up to 10Mbps(CA-IS3096/98 only) data rate ◼ 1/8 unit load enables up to 256 nodes on the bus ◼ 3V to 5.5V supply voltage range • Integrated DC-DC Converter for Cable-side Power ◼ 3.3V and 5V output options for the CA-IS3092 and CA-IS3098 (VISO ≤ VCC) ◼ High integration with internal transformer ◼ Soft-start reduces input inrush current ◼ Overload and short-circuit protection ◼ Thermal shutdown The CA-IS309x family of devices is galvanically-isolated RS485/RS-422 transceivers with built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. All devices of this family have the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides up to 5kVRMS (60s) of galvanic isolation and ±150kV/μs typical CMTI. Isolation improves data communication by breaking ground loops and reduces noise where there are large differences in ground potential between ports. An integrated DC-DC converter generates the 3.3V or 5V operating voltage for the cable-side. • Integrated Protection for Robust Communication ◼ 5kVRMS withstand isolation voltage for 60s (galvanic isolation) ◼ ±150kV/μs typical CMTI ◼ High lifetime: >40 years ◼ ±8kV Human Body Model(HBM) ESD, ±12kV IEC 61000-4-2 Contact Discharge ESD protection on bus I/O, ±6kV HBM ESD protection on logic I/O ◼ True fail-safe guarantees known receiver output state ◼ Wide operating temperature range: –40°C to 125°C • Wide-body SOIC16-WB(W) and SOIC20-WB(T) Packages • Safety Regulatory Approvals(pending) ◼ 7071VPK VIOTM and 849VPK VIORM per DIN VDE V0884-11:2017-01 ◼ 5kVRMS isolation for 1 minute per UL 1577 ◼ IEC 60950-1, IEC 60601-1 and EN 61010-1 certifications ◼ CQC, TUV, and CSA certifications 2. Applications • • • • • Industrial Automation Equipment Grid infrastructure Solar inverter Motor drivers HVAC Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectronics Co., Ltd. General Description The CA-IS309x family of devices is designed for high-speed multi-drop operation with high ESD protection of up to ±8kV HBM and ±12kV IEC 61000-4-2 Contact Discharge ESD protection on the bus pins. The receiver is 1/8-unit load, allowing up to 256 transceivers (loads) on a common bus. The CA-IS3090 and CA-IS3096 full-duplex transceivers are designed for bidirectional data communications on multipoint bus transmission lines simultaneously. The CAIS3092 and CS-IS3098 provide half-duplex transceivers, the driver and receiver enable pins let any node at any given moment be configured in either transmit or receive mode which decreases cable requirements. See the Ordering Information for the different duplex, data rate and VISO level options. The CA-IS309x series devices are available in wide-body 20-pin SOIC and 16-pin SOIC packages which are the industry standard isolated RS-485/RS-422 package, and operate over -40°C to +125°C temperature range. Device Information PART NUMBER CA-IS3090W CA-IS3092W CA-IS3096W CA-IS3098W CA-IS3090T CA-IS3096T PACKAGE BODY SIZE (NOM) SOIC16-WB(W) 10.30 mm × 7.50 mm SOIC20-WB(W) 12.80 mm X 7.50 mm 1 PDF
Документация на CA-IS3098W

Дата модификации: 21.04.2022

Размер: 1.47 Мб

28 стр.

    Товары серии CA-IS309x

    Наименование i Упаковка Режим Скорость
    CA-IS3090T (CHIPANLG)


    CA-IS3090W (CHIPANLG)


    CA-IS3092W (CHIPANLG)

    		в ленте 1000 шт
    CA-IS3096T (CHIPANLG)


    CA-IS3096W (CHIPANLG)


    CA-IS3098W (CHIPANLG)

    		в ленте 110 шт
