Серия соединителей провод - плата DS1066

CONNFLY

Общие характеристики

 Раздел Соединители провод - плата
Расстояние между соседними контактами
Количество рядов контактов
Применение

Документация на серию DS1066

Male V/T type 4.8 (N+1)*2.00 4.8 2.00±0.1 6.0 1. Main specifications . Housing material: Nylon 66 . Wire range: AWG#30~#24 . Rated voltage: 100V . Rated current: 2A(24AWG) . Contact resistance: 30mΩ Max . lnsulation resistance: 1000MΩ Min . Withstanding voltage: 500V,AC 1 minute . Temperature range: -25 ~ +85°C . Recommend PC board thickness:1.6mm 3.4 3.4 6.0 NOTES: Pin1 □0.50 (N-1)*2.00±0.25 W/O kink W/ kink 2. Product number code: N=No.of contact Bend Type A: Type A B: Type B Male Right Angle 4.8 4.8 □0.50 (N-1)*2.00±0.25 N=No.of contact Pin1 6.0 6.25 Contact Type X: W/O kink S: W/ kink Type A Contact Plating 6: Tin 8: Full gold flash Housing Color W: White E: Orange 3.4 3.4 1.6 Mounting type V: V/T type Type B .8 2.00 0 (N-1)*2.00 Ø0 2.00±0.1 6.25 6.0 (N+1)*2.00 (R/A only) R: Right Angle Connector type M: Male No.of contact 2 to 15 Recommended PCB Layout 晨翔电子有限公司 (Series Image-Reference Only) CONNFLY ELECTRONIC CO. LTD PDF
Документация на серию DS1066

DS1066

Дата модификации: 15.10.2021

Размер: 355 Кб

2 стр.

    Товары серии DS1066

    Наименование i Упаковка Тип Контакты Ток Напряжение Монтаж Расположение Коммерческое наименование Семейство Провод AWG

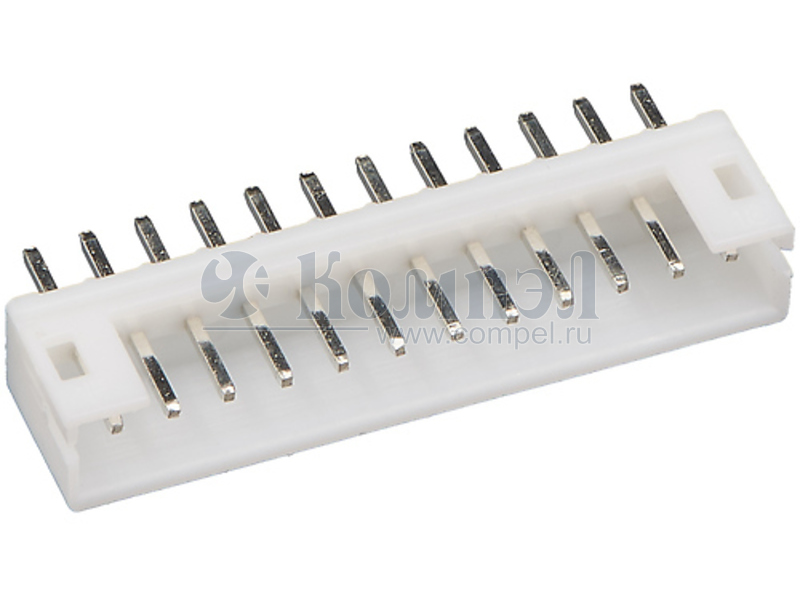

    DS1066-02MRW6XB (Connfly)


    		 — —
    DS1066-02MVW6S (Connfly)


    		 — —
    DS1066-02MVW6X (Connfly)


    		 — —
    DS1066-03MRW6XB (Connfly)


    		 — —
    DS1066-03MVW6X (CONNFLY)


    		 — —
    DS1066-04-02MSV6R (Connfly)


    		 — —
    DS1066-04-03MSV6R (Connfly)


    		 — —
    DS1066-04-04MSV6R (Connfly)


    		 — —
    DS1066-04-05MSV6R (Connfly)


    		 — —
    DS1066-04MRW6XB (Connfly)


    		 — —
    DS1066-04MVW6X (Connfly)


    		 — —
    DS1066-05MRW6XB (Connfly)


    		 — —
    DS1066-05MVW6X (Connfly)


    		 — —
    DS1066-06-08MRV6R (Connfly)


    		 — —
    DS1066-06-MVW6X (CONNFLY)


    		 1 шт — — Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-06MRW6XB (Connfly)


    		 — —
    DS1066-06MVW6X (CONNFLY)


    		 4000 шт — —
    DS1066-07MRW6XB (Connfly)


    		 — —
    DS1066-07MVW6X (Connfly)


    		 — —
    DS1066-08MRW6XB (Connfly)


    		 — —
    DS1066-08MVW6X (Connfly)


    		 — —
    DS1066-09MVW6X (Connfly)


    		 1 шт — —
    DS1066-10MRW6SA (CONNFLY)


    		 1000 шт — Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-10MRW6XB (CONNFLY)


    		 — — — Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-10MVW6S (CONNFLY)


    		 — — Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-10MVW6X (Connfly)


    		 Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-11MRW6XB (CONNFLY)


    		 — — — Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-11MVW6X (CONNFLY)


    		 1 шт Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-12MRW6XB (Connfly)


    		 1 шт Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-12MVW6X (Connfly)


    		 1 шт Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-13MVW6X (Connfly)


    		 — —
    DS1066-14MRW6XA (CONNFLY)


    		 — —
    DS1066-14MRW6XB (Connfly)


    		 Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-14MVW6X (Connfly)


    		 Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-15MVW6X (Connfly)


    		 — —
    DS1066-2MRW6SA (CONNFLY)


    		 1 шт — — — Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-2MRW6XB (CONNFLY)


    		 1 шт — Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-2MVW6S (CONNFLY)


    		 8000 шт — Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-2MVW6X (CONNFLY)


    MW-2M (CONNFLY)     		1 шт Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-3MRW6SA (CONNFLY)


    		 1 шт — Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-3MRW6XB (CONNFLY)


    		 1 шт — Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-3MVW6S (CONNFLY)


    		 1000 шт — — Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-3MVW6X (CONNFLY)


    MW-3M (CONNFLY)

    		 1000 шт — Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-4MRW6SA (CONNFLY)


    		 1 шт — Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-4MRW6SB (CONNFLY)


    		 — — — Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-4MRW6XB (CONNFLY)


    		 730 шт — Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-4MVW6S (CONNFLY)


    		 1 шт — — Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-4MVW6X (CONNFLY)


    MW-4M (CONNFLY)

    		 40000 шт — Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-5MRW6SA (CONNFLY)


    		 1 шт — Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-5MRW6XB (CONNFLY)


    		 1 шт — — — Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-5MVW6S (CONNFLY)


    		 1000 шт — — Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-5MVW6X (CONNFLY)


    		 1000 шт — Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-6MRW6SA (CONNFLY)


    		 1 шт — — — Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-6MRW6XB (CONNFLY)


    		 1 шт — — — Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-6MVW6S (CONNFLY)


    		 1000 шт — — Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-7MRW6SA (CONNFLY)


    		 1 шт — Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-7MRW6XB (CONNFLY)


    		 1 шт — — — Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-7MVW6S (CONNFLY)


    		 — — Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-7MVW6X (CONNFLY)


    		 1 шт — Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-8MRW6SA (CONNFLY)


    		 — Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-8MRW6XB (CONNFLY)


    		 1000 шт — — — Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-8MVW6S (CONNFLY)


    		 — — Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-8MVW6X (CONNFLY)


    MW-8M (CONNFLY)

    		 2000 шт — Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-9MRW6SA (CONNFLY)


    		 — Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-9MRW6SB (CONNFLY)


    		 — — — Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-9MRW6XB (CONNFLY)


    		 — — — Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-9MVW6S (CONNFLY)


    		 — — Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —
    DS1066-9MVW6X (CONNFLY)


    		 — — Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator —

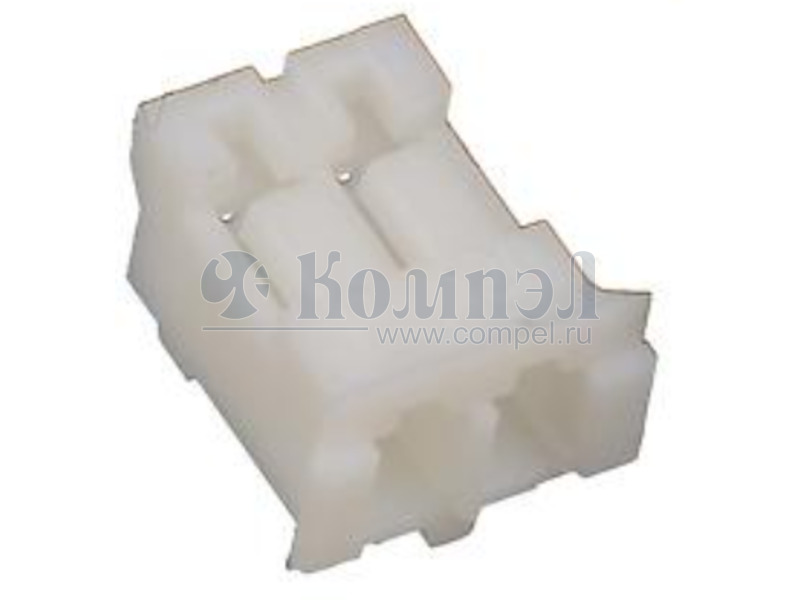

    I-DS1066-SCW002 (CONNFLY)


    MU-2F (CONNFLY)     		1 шт — Board Connector, 2 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW003 (CONNFLY)


    		 80000 шт — Board Connector, 3 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW004 (CONNFLY)


    		 30000 шт — Board Connector, 4 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW005 (CONNFLY)


    		 1 шт — Board Connector, 5 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW006 (Connfly)


    		 20000 шт — Board Connector, 6 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW007 (Connfly)


    		 1 шт — Board Connector, 7 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW008 (Connfly)


    		 4000 шт — Board Connector, 8 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW009 (Connfly)


    		 2000 шт — Board Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW010 (CONNFLY)


    		 1500 шт — Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW011 (Connfly)


    		 — Board Connector, 11 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW012 (Connfly)


    		 1 шт — Board Connector, 12 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW013 (Connfly)


    		 2000 шт — — — —
    I-DS1066-SCW014 (Connfly)


    		 — Board Connector, 14 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, White Insulator
    I-DS1066-SCW016 (Connfly)


    		 — — — —

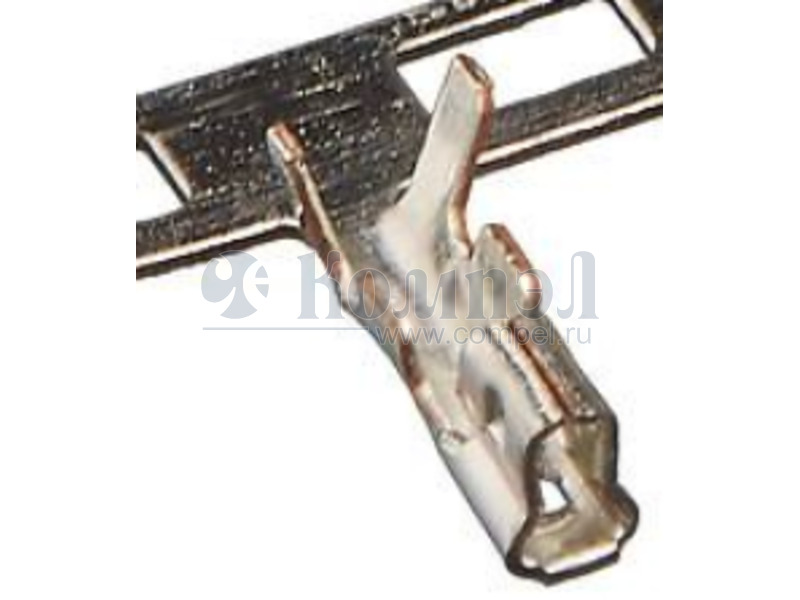

    T-DS1066-SC600 (CONNFLY)

    		в ленте 10000 шт — — — — —
