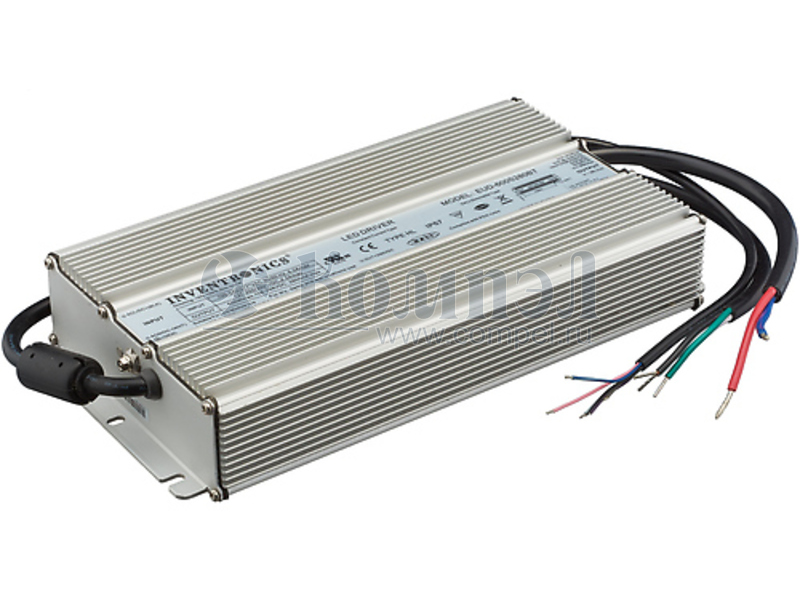

Серия LED-драйверов EUD-600BT

INVENTRONICS Inc.

Общие характеристики

 Раздел LED-драйверы
Тип преобразователя
Мощность выходная
Диапазон выходных напряжений
Диапазон выходных токов
Напряжение сети/входное номинальное
Режим стабилизации
Тип диммирования
Исполнение конструктивное
Степень защиты (IP)
Подстройка выходных параметров
Напряжение изоляции вход-выход
Количество выходов
Коэффициент мощности
Эффективность
Функция защиты
Температура рабочая
Применение
Особенности низкие пульсации, программируемый

Документация на серию EUD-600BT

EUD-600SxxxBT 600W Programmable IP67 Driver with DALI Rev. C Features  Ultra High Efficiency (Up to 95%)  Full Power at Wide Output Current Range (Constant Power)  Thermal Sensing and Protection for LED Module  DALI/Timer Dimmable (3 Timer Modes)  Dim-to-Off with Standby Power ≤ 0.5 W  Always-on Auxiliary Power: 12Vdc, 200mA  Output Lumen Compensation  Input Surge Protection: 6kV line-line, 10kV line-earth  All-Around Protection: OVP, SCP, OTP  Waterproof (IP67) and UL Dry / Damp / Wet Location  SELV Output  TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location  7 Years Warranty Description The EUD-600SxxxBT series is a 600W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, sports and horticultural, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Full-Power Default Output Current Output Current Range (1) Current Range 0.224-2.80A 2.24–2.80A 2.8 A 0.336-4.20A 3.36–4.20A 4.2 A 0.448-5.60A 4.48–5.60A 5.6 A 0.592-7.40A 5.92–7.40A 7.0 A 0.784-9.80A 7.84–9.80A 9.8 A Input Voltage Range(2) 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc Output Voltage Range Power Factor Max. Typical Output Efficiency 120Vac 220Vac Power (3) Model Number 108 ~ 268Vdc 600 W 95.0% 0.99 0.96 EUD-600S280BT 72 ~ 178Vdc 600 W 94.5% 0.99 0.96 EUD-600S420BT 54 ~ 134Vdc 600 W 94.5% 0.99 0.96 EUD-600S560BT 41 ~ 101Vdc 600 W 94.0% 0.99 0.96 EUD-600S740BT (4) 31 ~ 76Vdc 600 W 94.0% 0.99 0.96 EUD-600S980BT (4) Notes: (1) Output current range with constant power at 600W (2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise 100-240Vac or 127-250Vdc (3) Measured at full load and 220Vac input (see below “General Specifications” for details). (4) SELV Output 1 / 13 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com PDF
Документация на EUD-600S280BT

Microsoft Word - DS-EUD-600SxxxBT_Rev. C

Дата модификации: 17.01.2018

Размер: 892.9 Кб

13 стр.

EUD-600SxxxBT 600W Programmable IP67 Driver with DALI Rev. B Features  Ultra High Efficiency (Up to 95%)  Full Power at Wide Output Current Range (Constant Power)  Thermal Sensing and Protection for LED Module  DALI/Timer Dimmable (3 Timer Modes)  Dim-to-Off with Standby Power ≤ 0.5 W  Always-on Auxiliary Power: 12Vdc, 200mA  Output Lumen Compensation  Input Surge Protection: 6kV line-line, 10kV line-earth  All-Around Protection: OVP, SCP, OTP  Waterproof (IP67) and UL Dry / Damp / Wet Location  SELV Output  TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location  7 Years Warranty Description The EUD-600SxxxBT series is a 600W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for high bay, sport and grow lights, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Full-Power Default Output Current Output Current Range (1) Current Range 0.224-2.80A 2.24–2.80A 2.8 A 0.336-4.20A 3.36–4.20A 4.2 A 0.448-5.60A 4.48–5.60A 5.6 A 0.592-7.40A 5.92–7.40A 7.0 A 0.784-9.80A 7.84–9.80A 9.8 A Input Voltage Range(2) 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc 90~305Vac/ 127~300Vdc Output Voltage Range Power Factor Max. Typical Output Efficiency 120Vac 220Vac Power (3) Model Number 108 ~ 268Vdc 600 W 95.0% 0.99 0.96 EUD-600S280BT 72 ~ 178Vdc 600 W 94.5% 0.99 0.96 EUD-600S420BT 54 ~ 134Vdc 600 W 94.5% 0.99 0.96 EUD-600S560BT 41 ~ 101Vdc 600 W 94.0% 0.99 0.96 EUD-600S740BT (4) 31 ~ 76Vdc 600 W 94.0% 0.99 0.96 EUD-600S980BT (4) Notes: (1) Output current range with constant power at 600W (2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise 100-240Vac or 127-250Vdc (3) Measured at full load and 220Vac input (see below “General Specifications” for details). (4) SELV Output 1 / 13 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com PDF
Документация на серию EUD-600BT

Microsoft Word - DS-EUD-600SxxxBT_Rev. B

Дата модификации: 25.10.2017

Размер: 891.1 Кб

13 стр.

    Товары серии EUD-600BT

    Наименование i Упаковка
    EUD-600S280BT (INVENT)

    		1 шт

    EUD-600BT публикации

    18 апреля 2018
    новость

    Мощные перепрограммируемые LED-драйверы с управлением по DALI от Inventronics

    Компания Inventronics разработала несколько серий перепрограммируемых источников питания для светодиодных светильников повышенной мощности с возможностью управления по протоколу DALI. Новые источники питания EUD–320BT, EUD–600BT имеют... ...читать
