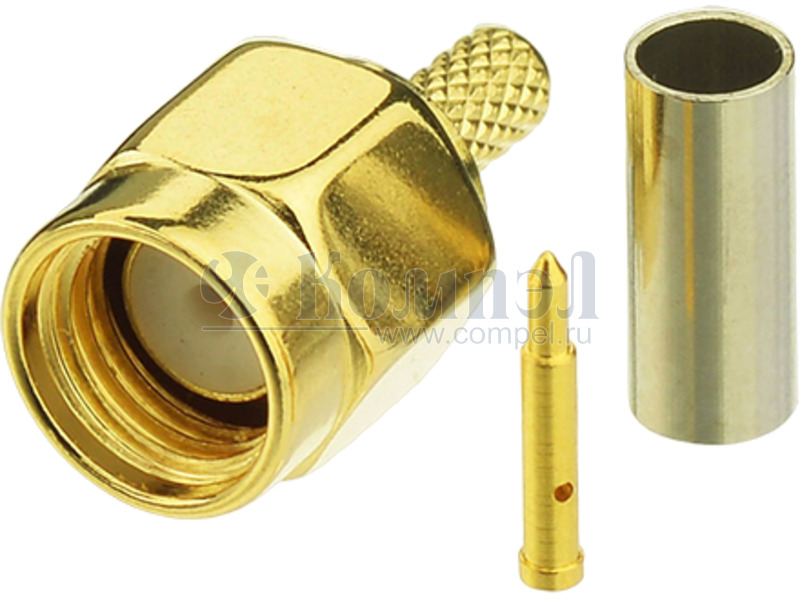

Серия высокочастотных разъемов KLS1-SMA005

Общие характеристики

	Раздел	Разъемы высокочастотные
	Максимальная частота
	Импеданс
	Материал покрытия контакта
	Тип кабеля

Документация на серию KLS1-SMA005

RF Connectors SMA Connector Series KLS1-SMA005 SMA Connector Series Electrical Specifications Impedance: 50 Ω Frequency Range :0-6 GHz Voltage Rating : 335 volts rms.Dielectric Withstanding Voltage : 500 volts rms. VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical 1.25 +0 .025 f (GHz) for Right angle connector typical Contact Resistance: Center contact: 2.0 mΩ Body: 2.0 mΩ Insulation Resistance: 5,000 MΩ Mechanical Specifications Mating:1/4"-36 UNS thread coupling Cable retention:6kgf typical Durability:500Cycles Min. Coupling nut retention:18kgf Min. Temperature Range: - 55°C to +155°C Material Connector body: Brass per QQ-B-626 ,gold Plating or nickel Center contact Male: Brass,gold Plating Center contact Female: Beryllium copper,gold Plating Insulator: PTFE Gasket:Silicone rubber Crimp Ferrule:Annealed copper Cable Group: RG-316,174,188;Q1,D316 ORDER INFORMATION Product NO.: KLS1-SMA005 Pos. NO. SMA Connector Type All specification & dimensions are subject to change,please call your nearest KLS sales represesntative for update information Ⅰ  PDF

Документация на KLS1-SMA005-RG-174/U

KLS1-SMA005.cdr

Дата модификации: 11.04.2023

Размер: 150 Кб

1 стр.
