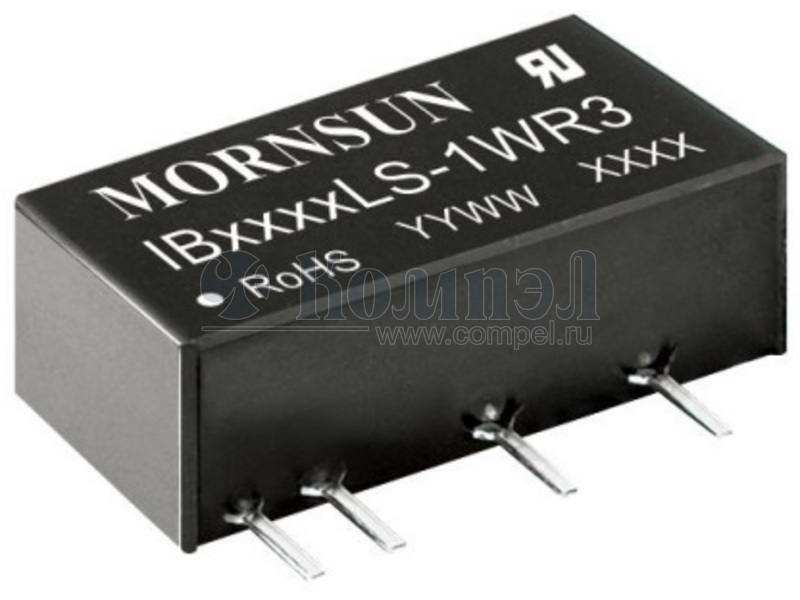

Серия DC-DC модульных преобразователей IB_LS-1WR3

Mornsun

Общие характеристики

 Раздел DC-DC модульные преобразователи
Монтаж
Выходная мощность
Количество каналов
Комплекс защит
КПД
Напряжение изоляции вход-выход
Размер 19.65×6×10.16 мм
Рабочая температура

Документация на серию IB_LS-1WR3

DC/DC Converter IB_LS-1WR3 Series FEATURES 1W isolated DC-DC converter Fixed input voltage and regulated single output  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +85℃  High efficiency up to 75%  I/O isolation test voltage 1.5k VDC  Industry standard pin-out Patent Protection RoHS IB_LS-1WR3 series is especially designed for distributed power supply systems where an isolated voltage is required. They are suitable for occasions of: pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc. Selection Guide Input Voltage (VDC) Certification Part No. Output Nominal (Range) Voltage (VDC) Current (mA) Max./Min. Full Load Efficiency (%) Min./Typ. Capacitive Load (µF) Max. 5 200/20 69/73 2400 IB1205LS-1WR3 IB1209LS-1WR3 IB1212LS-1WR3 12 (11.4-12.6) IB1215LS-1WR3 IB1505LS-1WR3 -- IB1515LS-1WR3 15 (14.25-15.75) IB2403LS-1WR3 IB2405LS-1WR3 IB2409LS-1WR3 IB2412LS-1WR3 24 (22.8-25.2) IB2415LS-1WR3 9 111/12 69/73 1000 12 83/9 69/73 560 15 67/7 71/75 560 5 200/20 69/73 2400 15 67/7 71/75 560 3.3 250/25 65/71 2400 5 200/20 67/73 2400 9 111/12 67/73 1000 12 83/9 67/73 560 15 67/7 67/73 560 Input Specifications Item Operating Conditions 12V input Input Current (full load / no-load) 15V input 24V input Min. Typ. Max. 5VDC/9VDC/12VDC output -- 115/8 121/-- 15VDC output -- 112/8 118/-- 5VDC output -- 92/8 97/-- 15VDC output -- 89/8 94/-- 3.3VDC output -- 59/8 65/-- 5VDC/9VDC/12VDC/15VDC output -- 58/8 63/-- -- 30 -- Reflected Ripple Current* Input Filter Unit mA Capacitance Filter Hot Plug Unavailable Note: * Refer to DC-DC Converter Application Notes for detailed description of reflected ripple current test method. Output Specifications Item Operating Conditions Voltage Accuracy Linear Regulation Load Regulation Input voltage change: ±1% 10%-100% load Min. Typ. Max. -- -- ±3 -- -- ±0.25 3.3VDC output -- -- ±3 5VDC/9VDC/12VDC/15VDC output -- -- ±2 2020.10.30-A/0 Unit % Page 1 of 4 MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation PDF
Документация на серию IB_LS-1WR3

IB_LS-1WR3 Keywords:

Дата модификации: 05.11.2020

Размер: 44.4 Кб

4 стр.

    Товары серии IB_LS-1WR3

    Наименование i Упаковка U вх Выход Возможности U вх ном. U1 I1
    IB1205LS-1WR3 (MORNSUN)


    		 в линейках 50 шт
    IB1209LS-1WR3 (MORNSUN)


    IB1212LS-1WR3 (MORNSUN)


    		 в линейках 50 шт
    IB1215LS-1WR3 (MORNSUN)


    IB1505LS-1WR3 (MORNSUN)


    IB1515LS-1WR3 (MORNSUN)


    		 в линейках 24 шт
    IB2403LS-1WR3 (MORNSUN)


    		 1 шт
    IB2405LS-1WR3 (MORNSUN)

    		1 шт
    IB2409LS-1WR3 (MORNSUN)


    IB2412LS-1WR3 (MORNSUN)


    		 1 шт
    IB2415LS-1WR3 (MORNSUN)
